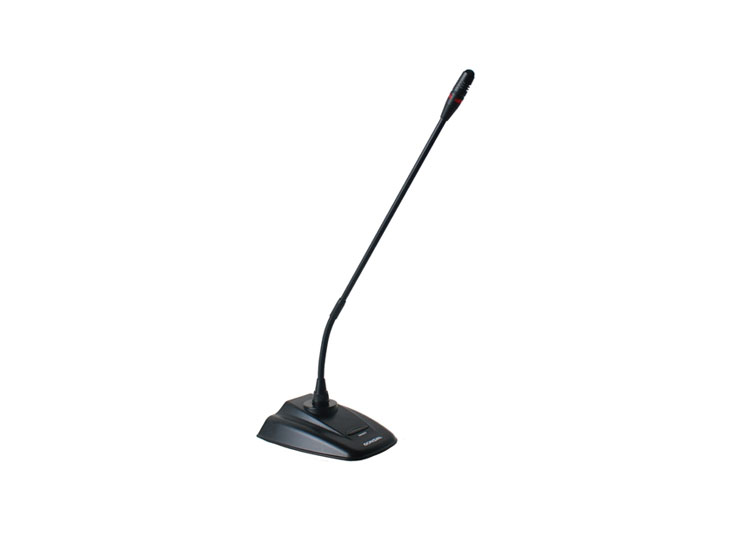

Conference Microphone GX-MIC101

Conference Microphone
Conference Microphone
Get A Quote
Technical Specifications

Technical Specifications of Conference Microphone GX-MIC101


Polar PatternUni-direction(capacitive)
Frequency response60Hz~15KHz
Sensitivity-47dB/±3dB(1KHz)
Reference distance15-50cm
Low Frequency Roll-Off125Hz 6dB/OCTAVE
Output impedance200Ω
Maximum bearing135dB SPL 1KHz At1% T.H.D
S/N66dB.1KHz AT PA
Dynamic range111dB.1KHz AT MAX SPL
Power supplyDC 3V/48V (phantom)
Base materialZinc alloy
Microphone rod length410mm
