GX-60 / 60B / 60C
GX-20S
CHG-28
CHG-16

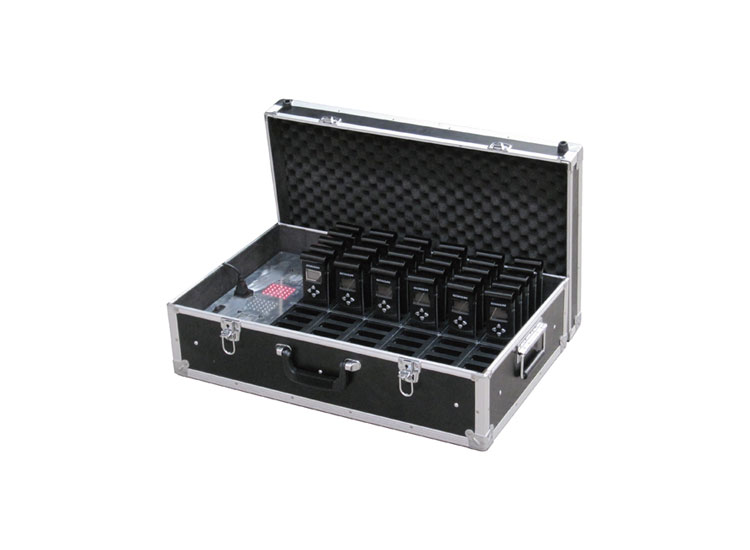

Charging Case GX-60 / 60B / 60C


Functions of Charging Case GX-60 / 60B / 60C

  • Aluminum storage flight case for charging & storage

  • Accommodates up to 60 units

  • Independent management for each charing port, it will automaticlly charge the unit with low battery, it will stop charging if the unit is fully charged to ensure the security

  • Independent LED indicators for charging status

  • Charging time: 2.5 hours

  • Anti-misplug design for charging port

  • GX-60 is suitable for charging IR simultaneous interpretation system receivers

  • GX-60B is suitable for charging TC-FSJ04/08/12/16 wireless simultaneous interpretation receivers, BJ-W5 voting units and BJ-W5I voting and interpretation units

  • GX-60C is suitable for charging TC-FSJ04B/08B/12B/16B wireless simultaneous interpretation receivers.


Technical Specifications of Charging Case GX-60 / 60B / 60C

Power inputAC100V~240V, 50/60Hz
Capacity60 units
Charging time2.5 hours
Charging indicatorLED indicator
Dimension (L*W*H)680mm×430mm×245mm
Weight11 Kg
Operating temperature0~45℃
Storage temperature-20~50℃

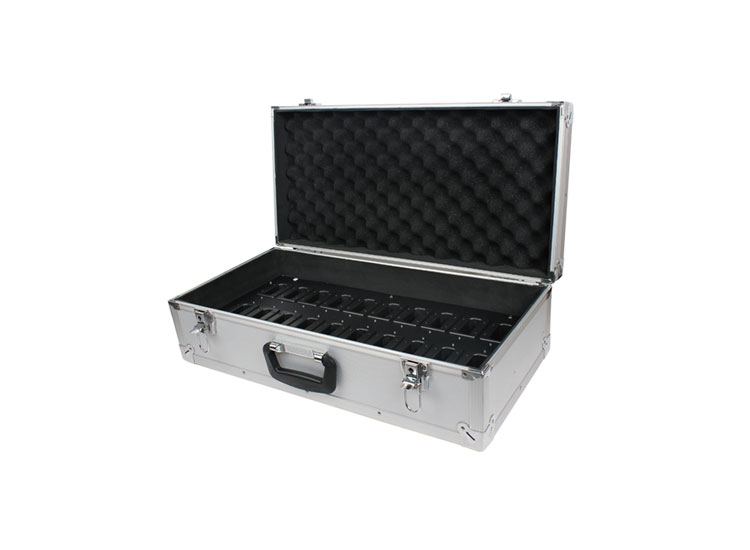

Charging Case GX-20S


Functions of Charging Case GX-20S

  • Aluminum storage flight case for charging & storage

  • Accommodates up to 20 simultaneous interpretation receivers

  • Independent management for each charing port, it will automaticlly charge the unit with low battery, it will stop charging if the unit is fully charged to ensure the security

  • Independent LED indicators for charging status

  • Charging time: 4 hours

  • GX-20S is suitable for FS-FHSS wireless simultaneous interpretation receivers TC-RFJ04S/08S/12S/16S


Technical Specifications of Charging Case GX-20S

Power input100-240V, 50-60Hz
Capacity20
Charging IndicatorLED
Dimensions590x300x200 mm (W x D x H)
Net Weight6.65 Kg
Operating temperature0~45℃
Storage temperature-20~50℃

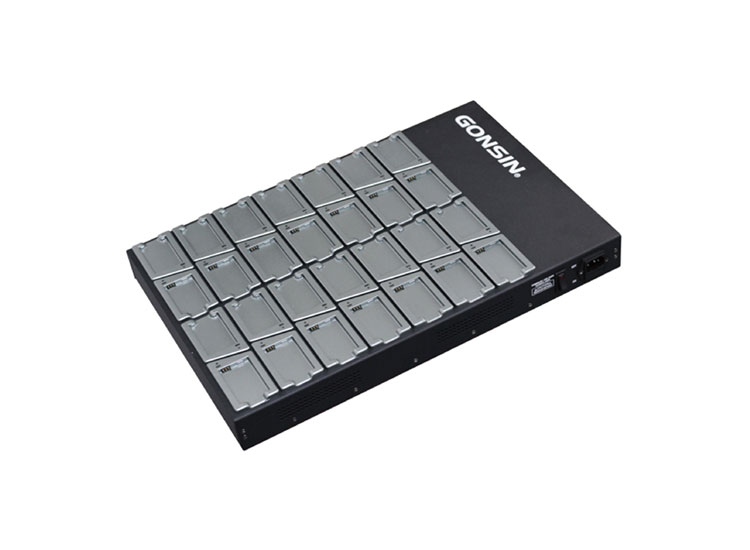

Charging Case CHG-28


Functions of Charging Case CHG-28

  • Smart management ensures safe and reliable charging; The real-time management for battery capacity and charging current prolongs battery life

  • Independent modularized charging circuit enables battery detection; this circuit does not work if no battery is detected

  • Accommodates up to 28 batteries

  • Red/green charging LED indicator

  • CHG-28 is suitable for Gonsin BJ-04-W


Technical Specifications of Charging Case CHG-28

Power supplyAC100~240V, 50~60Hz
Max. charging voltage4.2 V
Power106 W
Charging time3 hours
Weight6.3 kg (net weight), 6.9 kg (full load)
Dimensions490mm×320mm×67.5mm
Working temperatur0~45°C
Storage temperature-20~50°C

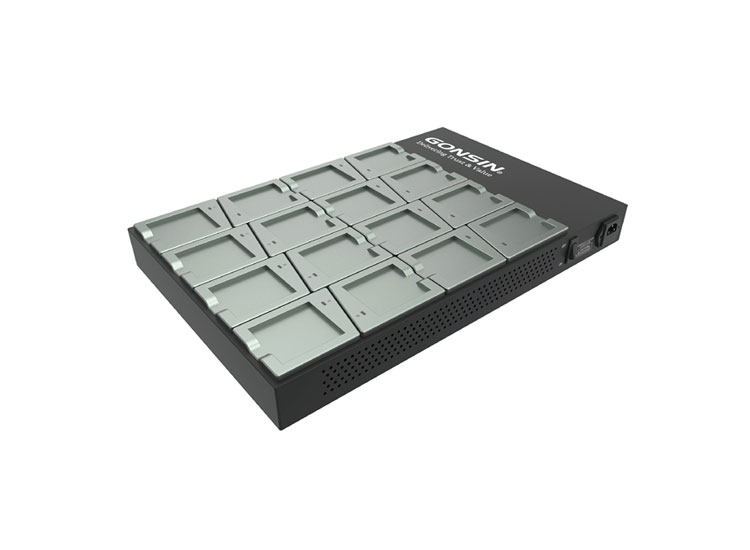

Charging Case CHG-16


Functions of Charging Case CHG-16

  • Smart management ensures safe and reliable charging; The real-time management for battery capacity and charging current prolongs battery life

  • Independent modularized charging circuit enables battery detection; this circuit does not work if no battery is detected

  • Accommoduate up to 16 batteries

  • Red/green charging LED indicator

  • CHG-16 is suitable for DCS-3021 conference terminal


Technical Specifications of Charging Case CHG-16

Power supplyAC100~240V, 50~60Hz
Max voltage4.2 V
Power106 W
Charging time3.5 hours
Weight6.7Kg(net)/ 7.4 Kg (full load)
Dimensions490mm×320mm×67.5mm
Operating temperature0~45°C
Storage temperature-20~50°C
