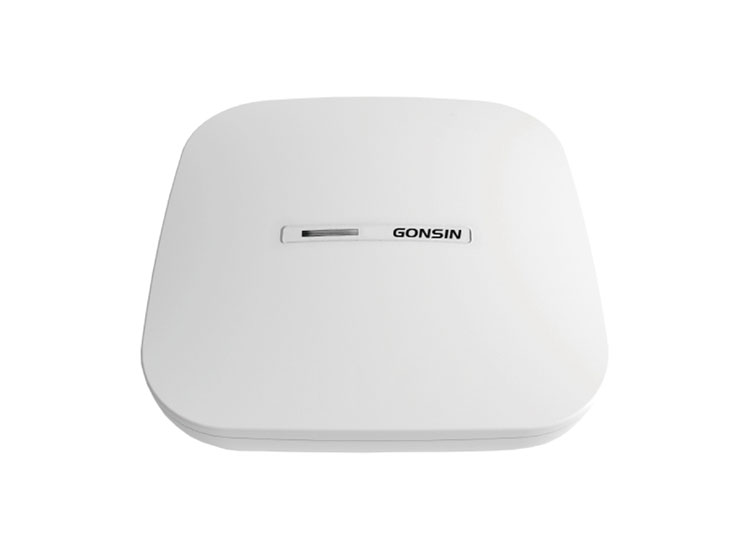

Wireless AP WAP-10D

Wireless AP WAP-10D
Wireless AP WAP-10D
Get A Quote
Functions
Technical Specifications

Functions of System Configuration Wireless AP WAP-10D

  • Adopt WiFi wireless communication technology, in compliance with IEEE 802.11b/g/n and IEEE 802.11ac/a/n network standards, the wireless transmission rate can reach 1167Mbps

  • Support MU-MIMO technology based on 802.11ac WAVE2 specification to solve the network transmission pressure in crowded places

  • It adopts 128 bit AES encryption technology and supports WEP / WPA / WPA2 wireless security technology to ensure the privacy of the conference and avoid eavesdropping and malicious interference

  • Support 2.4G/5.2G/5.8G three communication frequency bands optional, by choosing a clean wireless channel, to ensure the stability and reliability of wireless communication

  • The wireless signal coverage of single AP is stable, and the communication distance is 30 meters

  • Support up to 128 wireless AP connection management to achieve greater wirelesscoverage, and conference terminals can roam seamlessly

  • Support SSID wireless network settings to ensure that multiple systems in the same environment are used at the same time without interference

  • The built-in matrix smart antenna can automatically adjust the working channel and transmit power of the wireless access point, and detect the interference of the surrounding environment in real time, so as to effectively reduce the wireless interference and improve the communication quality of the wireless network

  • Support POE power supply, easy to install

  • Support wall-mounted/bracket/ceiling/desktop placement of a variety of installation methods can adapt to the installation environment of various types of venues

Technical Specifications of System Configuration Wireless AP WAP-10D

Working frequency802.11ac/n/a: 5.725GHz-5.850GHz; 5.15~5.35GHz (China)
802.11b/g/n: 2.4GHz-2.483GHz (China)
Maximum transmission rate1167Mbps
Ethernet interface1×10/100/1000Mbps
Console interface1 RJ45 interface
Single AP capacity60 units
Wireless signal coverage30 meters (stable communication distance)
Transmit power≤20 dBm
Adjustable power granularity1 dBm
Adjustable power range1 dBm~corresponding national regulations
Power supplyPoE power supply (support 802.3af/802.3at),
power adapter (12V/2A)
Power consumption＜13W
Dimensions (L×W×H)196 mm×196 mm×45 mm
Weight0.5kg
Operating temperature-10°C~55°C
Storage temperature-40°C~70°C
Working humidity/Storage humidity5%~95% (non-condensing)
Protection levelIP 41
