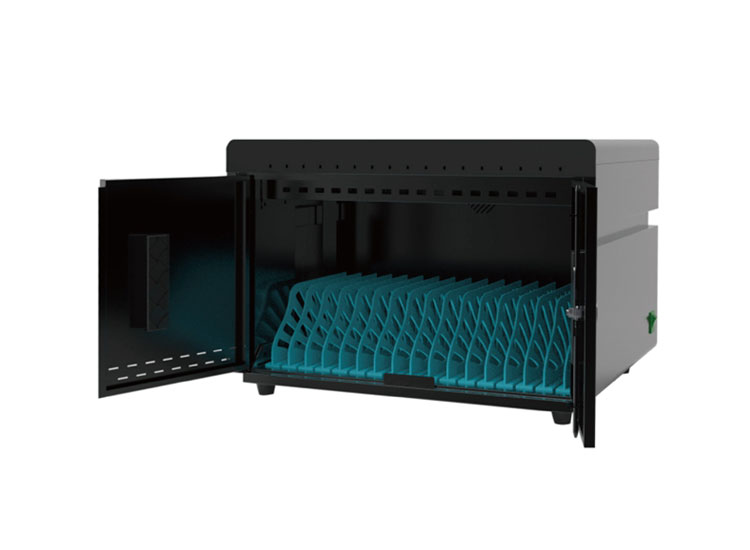

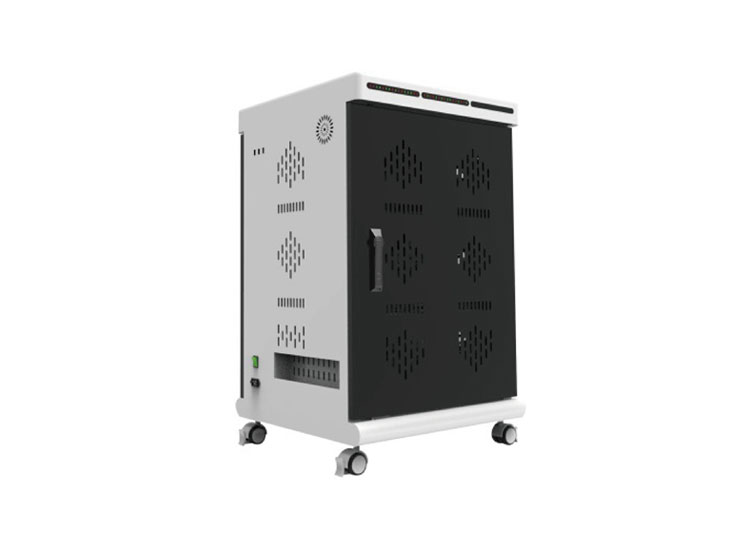

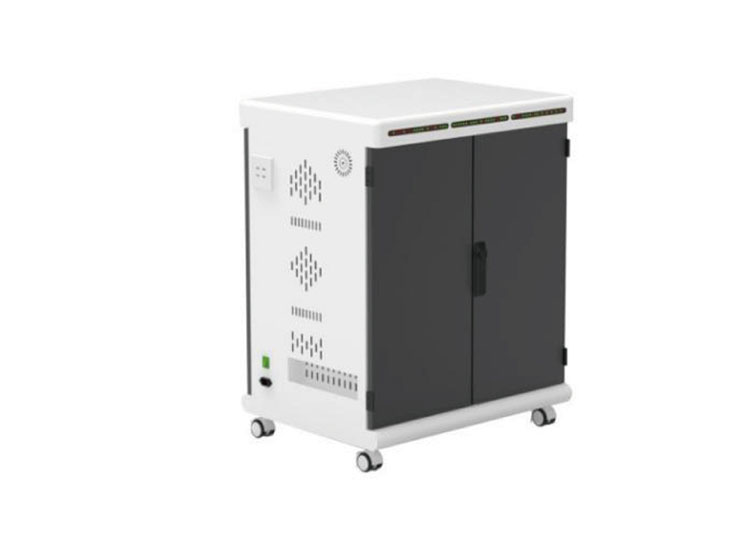

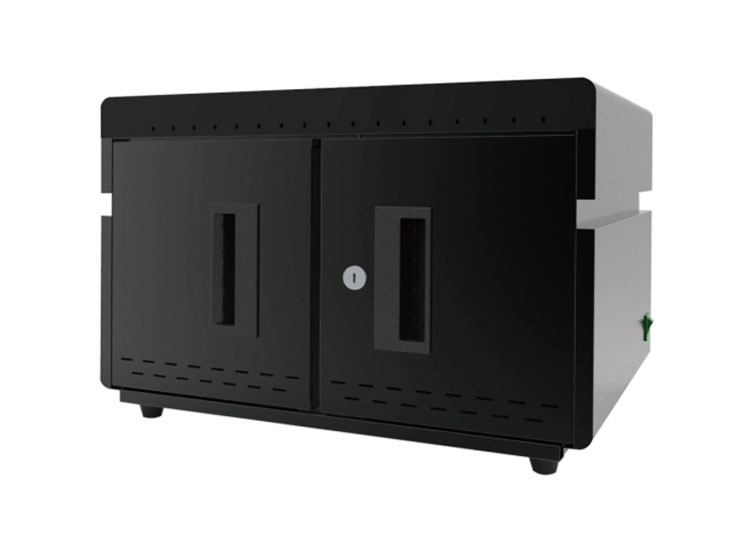

Paperless Terminal Charging Cart (LCD Lifter）

Conference Room Audio Solutions
Conference Room Audio Equipment
Conference Room Audio
Conference Meeting Equipment
Conference Room Audio Solutions
Conference Room Audio Equipment
Conference Room Audio
Conference Meeting Equipment
Get A Quote
Basic Functions
Technical Parameters

Basic Functions of Paperless Conference System Configuration Paperless Terminal Charging Cart (LCD Lifter）

  • Separated lifting design for LCD screen and mic, with panel keys, control lifting of both, flexible and easy to operate; easy to hide and store the equipment

  • The front screen is a 15.6/17.3/18.5 inch IPS full-view HD LCD screen(resolution 1920×1080) with 10 points touch; suit for paperless terminal

  • Utilize low-speed micro-motor and strengthened wire rope gearing, enabling fast and smooth lifting; wear-resisting design secures long service life

  • Low noise design produces low noise during lifting

  • The default elevation angle is 15° when the LCD screen is lifted; support continuous adjustment within 0~30°

  • Lifter panels and chassis are made of aluminum alloy with lightweight, high strength, and exquisite appearance

  • Slim design with a narrow bezel, the suitable 16:9 display scale provides a superior user viewing experience

  • Support 10 points touch, stable and sensitive

  • Lifter panel has switches for Up, Stop, Down, on and off for multimedia conference terminal

  • The lifter supports manual control, wireless remote control, RS-232 control, RS-485 control, carrying out unified control and grouping control for up/down/stop status of lifter

  • Support reading files from USB flash disk

  • With HDMI and VGA interface, signals can be automatically identified and can be switched by panel keys


Technical Parameters of Paperless Conference System Configuration Paperless Terminal Charging Cart (LCD Lifter）

ModelGX-LF156B-X/ GX-LF173B-X/ GX-LF185B-X
Front LCD Screen
Screen size375×250mm/ 406×265mm/ 446×285mm
Thickness5mm( the thinnest)/8mm( the thickest)
Resolution ratio1920×1080dpi
Brightness2 220cd/m; 300cd/m;  260cd/m²
Contrast800:1
Screen visual angle85°/85°/85°/85°(up/down/left/right)
Display interfaceHDMI+VGA, auto recognization/switch through panel key
Back LCD Screen
Display size11.6 inches,256mm(H)×144mm(V)
Resolution ratio1366×768dpi
Brightness300cd/㎡
Contrast600:1
Screen visual angle85°/85°/85°/85°(up/down/left/right)
Touch screen(the front LCD screen equips)
TypeCapacitive touch, 10 points touch
Surface hardness7H
Antistatic Contact discharge4KV
Screen transparency>90%
Response time<5ms
Touch life> 50 million times
Lifter
Lifting up/down time30s
Screen elevation angleDefault 15°, adjustable within 0~30°
Control modeManual control, wireless remote control, RS-232 control, RS-485 control
Communication distanceWireless remote control: 30m, RS-232 control, RS-485 control: 1200m
Universal specifications
ColorSilver/Black(customizable)
MaterialAluminum alloy panel + aluminum alloy chassis
PowerVoltage AC220V±10% 50Hz (AC 110V customizable)
Maximum power25W
Operating temperature0~45°C
Panel dimension430×70×3mm/ 476×70×3mm/ 510×70×3mm
Case size415×60×562mm/ 461×60×562mm/ 495×60×647mm
Package size(carton)488×132×660mm/ 538×132×660mm/ 565×132×745mm
Net Weight7.2kg/ 8.2kg/ 9.2kg
Gross weight9.2kg/ 10.2kg/ 11.7kg
