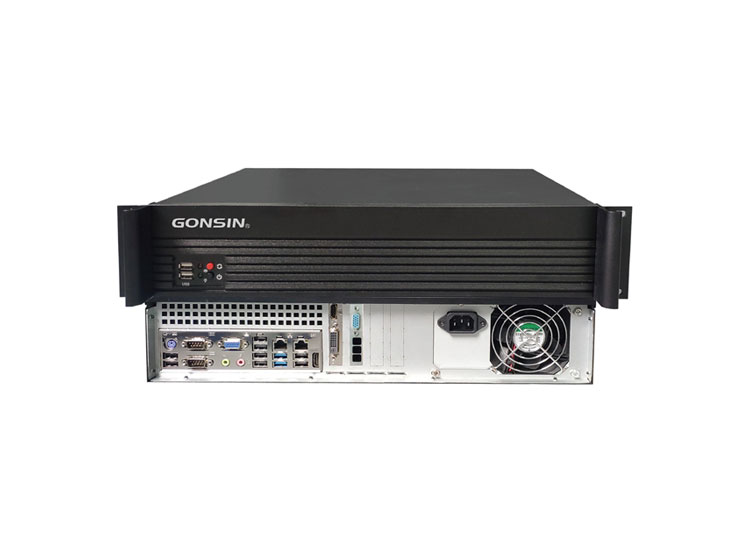

Paperless Server GX-DS301

Paperless Server
Paperless Server
Get A Quote
Basic Functions
Technical Specifications

Basic Functions of Paperless Conference System Configuration Paperless Server GX-DS301

  • In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology

  • All the equipment is connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier

  • Automatic restoration function: supports hotplug

  • To upload, invoke, store the congress files and other file management

  • To process and manage all data, command code, and function settings for a paperless system

  • Support paperless congress terminal management

  • Support participant data management, two establishing modes: online, offline

  • Support seat setting, create conference room map, seat arrangement, customized editing

  • Support congress management, create congress agenda, set congress time and place

  • The congress file format supports DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX, JPG, PNG, BMP, MP3, MP4, AVI, FLV, WMV, and other general document formats

  • Support conference topic management, attendance registration, voting, grading, evaluation, election function, support multi-topic voting, and other customized functions

  • Support customized user interface’s color and size, background, style, data connection, and others

Technical Specifications of Paperless Conference System Configuration Paperless Server GX-DS301


MainboardIntel H81 chipset Industrial Motherboards
CPUIntel Core i5 Processor, 6M Cache, up to 3.20 GHz
MemoryDDRIII 4G
SATA1TB SATA
Port1*VGA, 2*LAN 1000M/2*USB 3.0/4*USB 2.0/1*AUDIO OUT/1*MIC IN
Ethernet10/100/1000Mbps, two network port(left effective setting)
PowerAC220V, 300W
Operating Temperature0~60°C
Storage Temperature-40~80°C
Structureheavy steel
Installation2U cabinet
Dimensions(L*W*H)428×350×89mm
Weight9.5Kg
