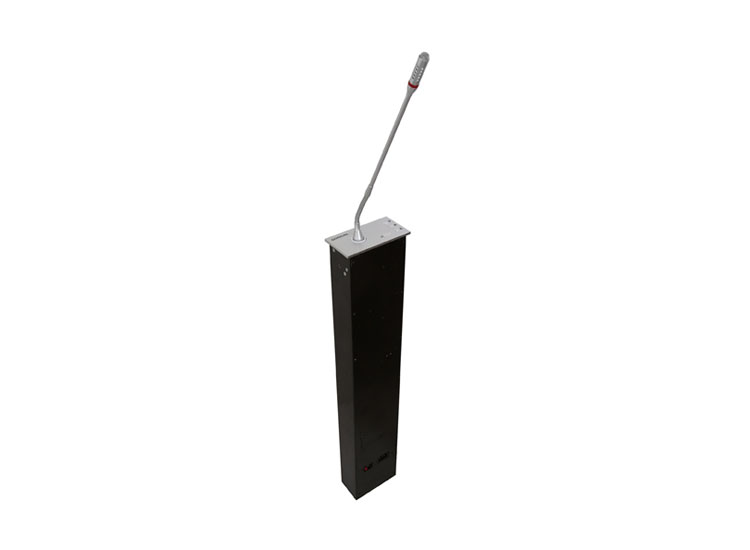

Microphone Lifting All-in-one Terminal

There are four models of Microphone Lifting All-in-one Terminal:

GX-LFM2057X-X/GX-LFM2057D-X

GX-LFM5600X-X/GX-LFM5600D-X


Microphone Lifting All-in-one Terminal
Microphone Lifting All-in-one Terminal
Get A Quote
Basic Functions
Technical Specifications

Basic Functions of Paperless Conference System Configuration Microphone Lifting All-in-one Terminal

  • Work with connectors of chairman unit DCS-CON2057X and delegate unit DCS-CON2057D (GX-LFM2057X-X/GX-LFM2057D-X)

  • Work with connectors of chairman unit CON-X5600-W and delegate unit CON-D5600-W (GX-LFM5600X-X/GX-LFM5600D-X)

  • Auto straightening for MIC when lifting down

  • 5 modes of microphone discussion: Apply for waiting /Restrict to speak/ FIFO/ VOX/ Request to speak( with software)

  • In VOX mode, microphones will be activated as users speak. VOX sensitivity (high/middle/low) and MIC time-out can be adjusted by the server. It can be automatically turned off by setting it in advance. Besides the chairman unit, 4 delegate units can be activated at the same time

  • Electret cardioid directional microphone brings better sound quality

  • Highly resistant to mobile phone interference

  • Auto camera tracking with preset panoramic position; SD/HD camera tracking is supported

  • The system supports auto repairing and hot sweeping

  • Co-work with software, speaking time can be managed based on the situation


Based on the functions of the delegate unit, the chairman unit has the functions below:

  • The Chairman unit can be turned on freely without restriction on the number of microphones when turning on.

  • The Chairman unit has the priority function that can interrupt or turn off the delegate unit when speaking.


Technical Specifications of Paperless Conference System Configuration Microphone Lifting All-in-one Terminal

General parameters
ColorSandblasting silver (other colors can be customized)
MaterialAluminum alloy
PowerVoltage AC220V±10%50Hz (AC110V customizable)
Max Power25W
Working temperature0~45°C
Storage temperature-20~50°C
Relative humidityNot more than 80% (20°C environments)
Product size160*70*720mm
Panel size160*70*3mm
Case size143*60*717mm
Package size835*250*145mm(carton)
Net weight3Kg
Gross weight4Kg
Microphone
TypeCardioid directional electret
Frequency response20Hz~20KHz
Max SPL125dB(THD<3%)
Dynamic range>85dB
VOX sensitivityH/M/L(76dB/80dB/82dB)
Sensitivity-46dB±4dB
THD<0.05%
SNR≥96dB
MIC length450mm
General parameters
ColorSandblasting silver (other colors can be customized)
MaterialAluminum alloy
PowerVoltage AC220V±10%50Hz (AC110V customizable)
Max Power25W
Working temperature0~45°C
Storage temperature-20~50°C
Relative humidityNot more than 80% (20°C environments)
Product size160*70*720mm
Panel size160*70*3mm
Case size143*60*717mm
Package size835*250*145mm(carton)
Net weight3Kg
Gross weight4Kg
Lifter
Lifting up/downtime54s
Control modeManual control, wireless remote control, RS-232 control, RS-485 control
CommunicationWireless remote control:30m
distanceRS-232: 15m; RS-458: 1200m
