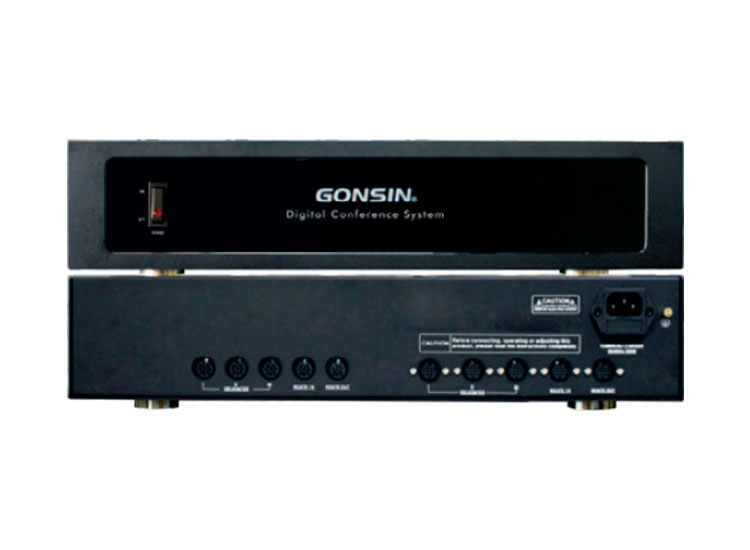

Extension Unit ZJ-KR

Extension Unit ZJ-KR
Extension Unit ZJ-KR
Get A Quote
Functions
Technical Specifications

Functions of System Configuration Extension Unit ZJ-KR

  • Confirm to IEC 60914 international standard

  • With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor

  • Black tempered glass panel design, simple and high-end design. All the function divisions are clearly layout and easy to operate

  • Three routes 8-pin ports to connect conferenc units, another two route 8-pin port for system cascading

  • Three routes 13-pin ports to connect conferenc units, another two route 13-pin port for system cascading

  • Automatic restoration function: support hot plug and play

  • One central control unit is able to accommodate 60-70 units. By cascading extension units, the system can support upto 4096 conference units

  • Universal voltage power switch for wider usable range and sufficient power supply

Technical Specifications of System Configuration Extension Unit ZJ-KR


Max System Capacity4096
Standard Capacity60~70(different from various models)
PowerAC100~240V, 50/60Hz
MAX Power300W
Terminal Connection Port8-pin ×5, 13-pin×5
Operating Temperature0~45°C
Storage Temperature-20~50°C
Dimensions (L*W*H)485mm×350mm×90mm
InstallationDesktop or 19" rack mounting
Weight7.6Kg
