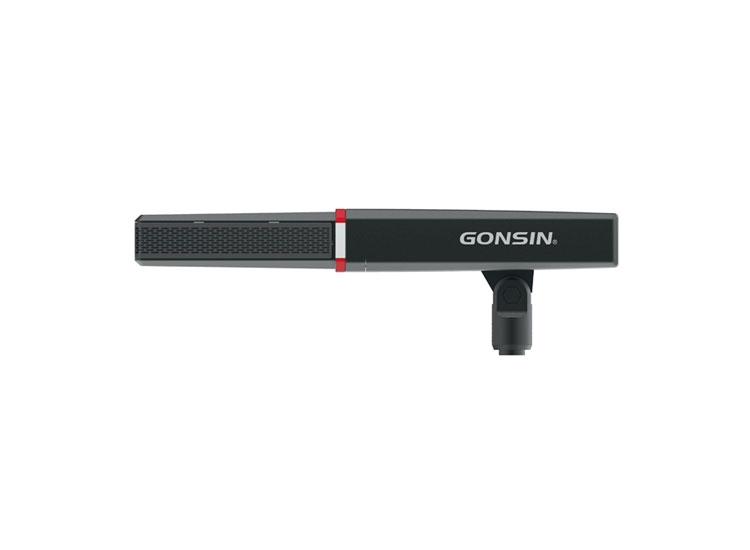

Conference Microphone MIC-240DB

Conference Microphone MIC-240DB
Conference Microphone MIC-240DB
Get A Quote
Functions
Technical Parameters

Functions of System Configuration Congress Conference Microphone MIC-240DB

  • Full metal microphone shell, with drop resistance, durable quality

  • Adjustable pitch angle for best sound receiving effect

  • Hypercardioid microphone with multiple head and three-color status indicators

  • Built-in isolated leading microphone and backup microphone. The leading microphone co-works with digital system audio and the backup one co-works with phantom power audio. The breakdown of leading microphone has no influence on the backup microphone and its output

  • Highly resistant to mobile phone interference

Technical Parameters of System Configuration Conference Microphone MIC-240DB

Radio HeadMultiple
Polar PatternHypercardioid
Acoustic Frequency Response20Hz~20KHz
Sensitivity-46 dBV/Pa
Input impedance2KΩ
Directivity0°/135°: > 20 dB (1 kHz)
Equivalent Noise Level0°/180°: > 15 dB (1 kHz); 20dBA (SPL))
Max SPL139dB (THD<3%)
Output Impedance200Ω
Power SupplyLeading Microphone: Terminal
Output ImpedanceBackup Microphone:48V DC phantom power; 3 Pin aviation female head and XLR Male
Dimensions (L*W*H)240mm×35.5mm×31.5mm
Weight0.4Kg
