IR Simultaneous Interpretation System

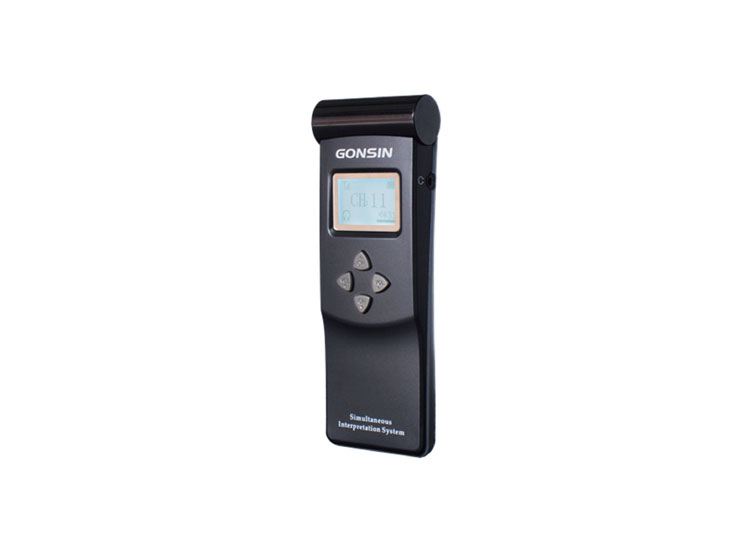

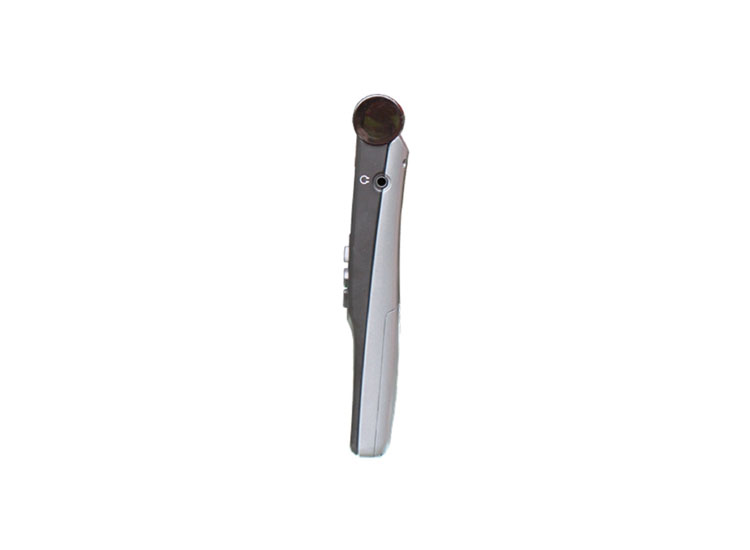

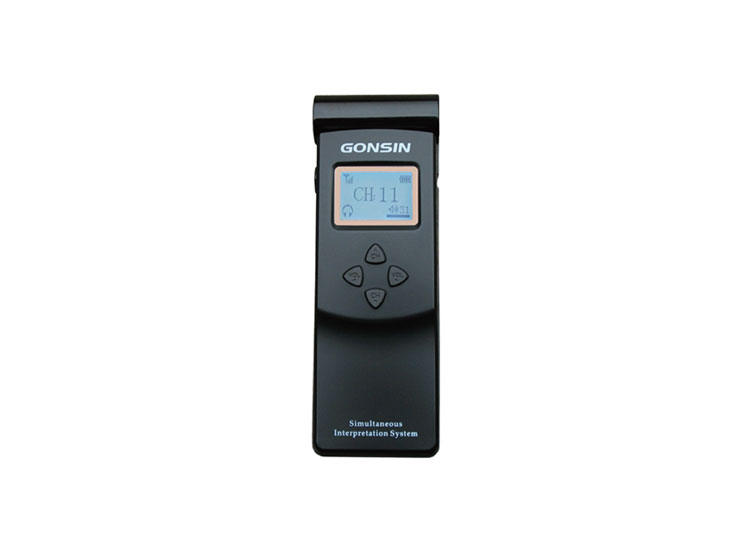

IR Receiver TC-J904LC/J906LC/J908LC/J912LC
Features of IR Receiver
Streamlined design;
The language of every channel can be displayed;
Unique 270º super wide reception angle;
Channel selection via up/down button;
Supports 4/6/8/12 channels;
Chargeable lithium battery;
The battery can continuously work up to 30 hours;
Headphone detection function;
Operating information display on the LCD;
Clear sound, high fidelity.
Basic Functions of IR Receiver
Light-weight and handy receiver in conjunction with headphones for easy and comfortable use;
Supports 4/6/8/12/ channels;
Dynamic display of battery level;
Unique 270º super wide reception angle, ensuring perfect sound quality;
LCD with channel number, language name, battery, and signal status indication;
Headphone detection function, the receiver will be off when the headphone is disconnected for more than 5 minutes;
Channel selection and volume control via button, easy operation;
High-quality audio, without co-channel interference;
The volume level can be adjusted;
3.7V chargeable lithium battery;
Low-consumption design, the battery can continuously work up to 30 hours;
Unlimited receiver number within the IR power radiation range;
Freedom of movement within the range of IR power radiator;

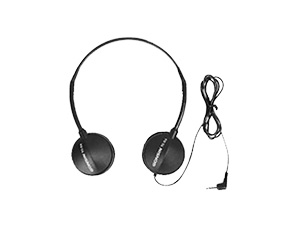

Stereo headphones are available;
Can be hung over the neck via a nice lanyard or fit into the shirt pocket;
Lightweight and handy receiver in conjunction with headphones for easy.
Technical Specifications of IR Receiver TC-J904LC/J906LC/J908LC/J912LC
| Frequency range | 2.0~6.0 MHZ |
| Modulation mode | FM/ Superheterodyne PLL |
| Battery | 3.7V Li-Ion battery |
| Supply voltage | 2.3V~3.6V |
| Battery life | 30hours |
| LCD parameter | Dimension 34mm×22mm |
| Lattice 96x64 |
| Dimension(L*W*H) | 159mm×55mm×26mm |
| Weight | 0.12Kg |
| Operating temperature | 0~45℃ |
| Storage temperature | -20~50℃ |
| Package | Portable aluminum box packing |

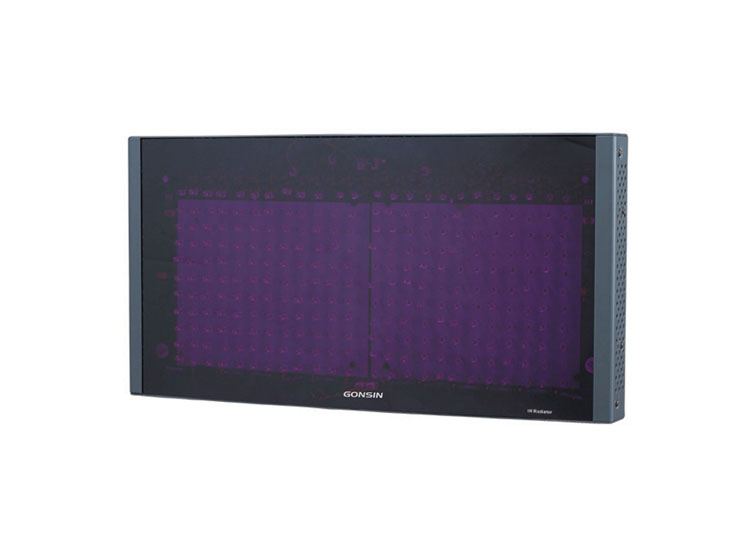

Functions of IR Radiator TC-H25/35
25w/35w emission power available can be flexibly configured in according to the conference room;
Strong emission ability, maximum radiation range 40(25w)/60(35w)meters;
Standby indication, working indication, half-power indication;
Signal delay adjustment function;
LED displays delay parameter;
Synchronization ON/OFF with transmitter;
Manual half-power switch on the rear, convenient simultaneous translation device for small conferences;
Temperature control: if temperature is too high, control switches to half-power with LED indication;
Multi-channels use the same radiator;
Radiators are connected by daisy-chain connection;
Installation: fixed up by bracket or tripod stand.
Technical Specifications of IR Radiator TC-H25/35
| Frequency range | 2.0 ~ 6.0 MHZ |
| Modulation mode | FM/Superheterodyne PLL |
| IR output power | 25W/35W |
| Angle of half intensity | ±22° |
| Coverage range | 40 (25W) / 60 (35W) meters |
| Transmitted power | 50%/100%(min/max) |
| Power | 110/240VAC，50/60Hz |
| Weight | 3.8kg |
| Operating temperature | 0～45℃ |
| Storage temperature | -20~50℃ |
| Dimension (W×D×H) | 450mm x 230mm x 100mm |

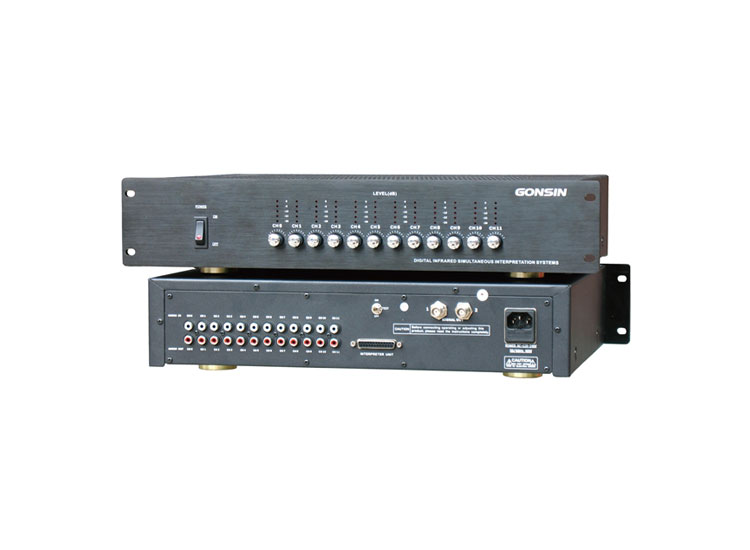

Functions of IR Transmitter TC-Z904B/906B/908/912
Transmitting in 2~6 MHz(IEC61603 BAND4)frequency band eliminates disturbance from high frequency lighting systems;
Highly privacy protection, which avoids eavesdropping and radio interference;
It can be used together with wired interpretation system, and FS-FHSS wireless translation system;
2 BNC interfaces for high frequency signal output, each interface connects unlimited radiator quantity;
Multiple output channels for recording;
Multiple audio input, maximum for 12 channels simultaneously (1 floor audio+11 interpretation audio);
Unique testing function, different channels has each test audio, convenient for testing;
Advanced phase-locked loop technology ensures stable transmitter emission, frequency stability is 10PPM;
ALC automatic level control;
The input level indicator shows input level directly;
19-inch rack mounting using.
Technical Specifications of IR Transmitter TC-Z904B/906B/908/912
| Frequency Range | 2.0～6.0 Mhz |
| Modulation mode | FM/Superheterodyne PLL |
| Channels | 4/6/8/12 |
| Indication | Channel level indication |
| Audio input/output | Unbalance RCA X6 |
| Dimension (W×H×D) | 485mm×325mm×90mm |
| Weight | 7.6kg |
| Operating temperature | 0～45℃ |
| Storage temperature | -20～50℃ |

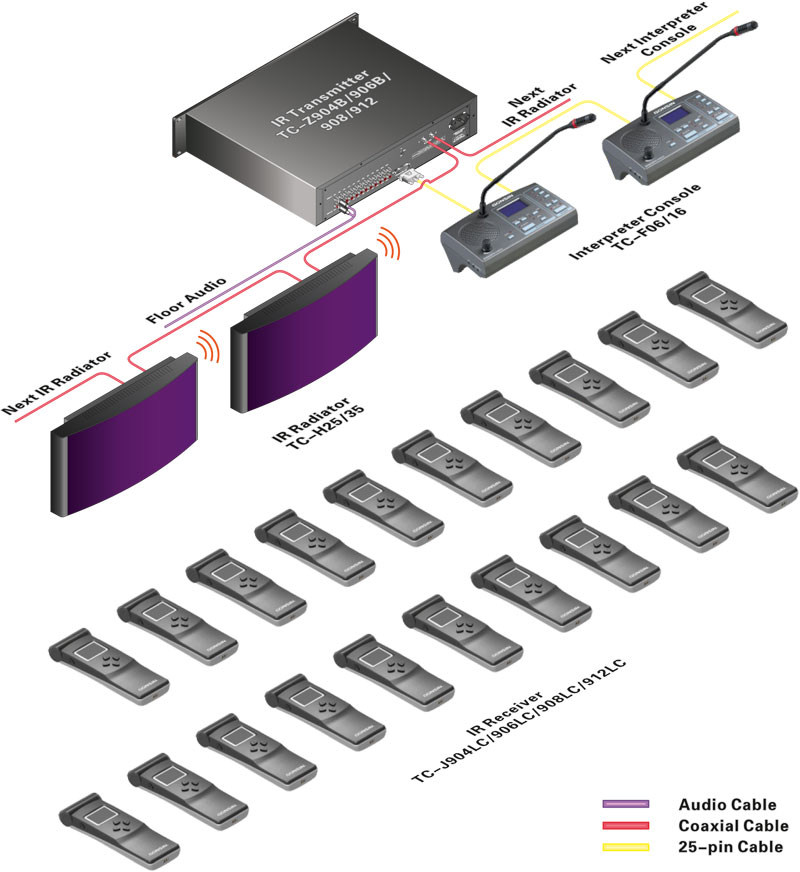

System Configuration of IR Simultaneous Interpretation System
