Paperless Conference System - Desktop LCD Lifter
Functions of Touch Control Desktop LCD Lifting Terminal
Desktop Lifter Microphone
Work with chairman/delegate connector;
Auto straightening for mic when lifting down;
Microphone discussion modes: Operator/Auto/ FIFO/ VOX/ Request to speak( with software);
Unlimited number of chairman units or vice chairman units;
In VOX mode, microphones will be activated as users speak. VOX sensitivity (high/middle/low) and mic time-out can be adjusted by the server. Besides the chairman unit, 4 delegate unit can be activated at the same time;
Electret cardioid directional microphone brings better sound quality;
Highly resistant to mobile phone interference
Auto camera tracking with preset panoramic position; SD/HD camera tracking is supported;
Expansion function: can be connected with voting module and simultaneous interpretation module
The system supports auto repairing and hot sweeping;
Co-work with software, speaking time can be managed based on situation

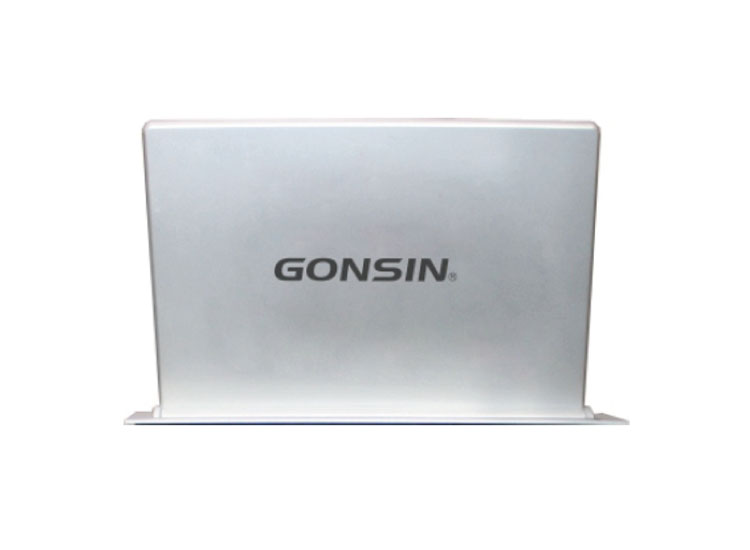

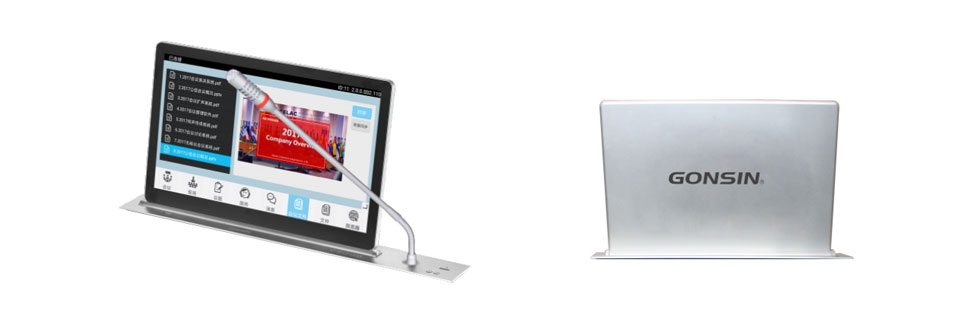

Touch Control Desktop LCD Lifter
Separated lifting design for LCD screen and mic, with panel keys control lifting of both, flexible and easy to operate; easy to hide and store the equipment;
The front screen is a 15.6/17.3/18.5 inch IPS full-view HD LCD screen(resolution 1920×1080) with 10 points touch; suit for paperless terminal;
Utilize low-speed micro-motor cooperate with high-quality timing belts and high-precision guide rails and bearings, enabling fast and smooth lifting; wear-resisting design secures long service life;
Low noise design produces low noise during lifting:
The default elevation angle is 15° when the LCD screen is lifted; support continuous adjustment within 0- 30°;
Lifter panels and chassis are made of aluminum alloy with light weight, high strength and exquisite appearance;
Slim design with narrow bezel, the suitable 16:9 display scale provides superior users viewing experience.
Support 10 points touch, stable and sensitive;
Lifter panel has switches for: Up, Stop, Down, on and off for multimedia conference terminal;
The lifter supports manual control, wireless remote control, RS-232 control, RS-485 control, carrying out unified control and grouping control for up/down/stop status of lifter
Support reading files from USB flash disk;
With HDMI and VGA interface, signals can be automatically identified, and can be switched by panel keys, when there is no signal input, the screen automatically enters the power-saving mode.
Support personalized customization: the voting module, simultaneous interpretation module, charging module and other modules can be customized. The integrated panel does not affect the appearance of the desktop.
The lifter has a power loop outlet socket, which reduces power wiring and makes the scene more tidy and beautiful.
Technical Parameters of Paperless Conference System-Desktop LCD Lifter
| Model | GX-LF156CD-X | GX-LF173CD-X | GX-LF185CD-X |
| GX-LF156CX-X | GX-LF173CX-X | GX-LF185CX-X |
| GX-LF156ED-X | GX-LF173ED-X | GX-LF185ED-X |
| GX-LF156EX-X | GX-LF173EX-X | GX-LF185EX-X |
| Microphone |
| Type | Cardioid directional electret |
| Frequency response | 20Hz~20kHz |
| Max SPL | 125 dB (THD<3%) |
| Dynamic range | >85dB |
| VOX sensitivity | H/M/L(76dB/80dB/82dB) |
| Sensitivity | -46dB±4dB |
| THD | <0.05% |
| SNR | ≥96dB |
| Mic length | 450mm |
| Front LCD Screen |
| Screen size | 375×250mm | 406×265mm | 446×285mm |
| Thickness | 5mm( the thinnest)/8mm( the thickest) | 10.5mm |
| Resolution ratio | 1920×1080dpi |
| Brightness | 220cd/㎡ | 300cd/㎡ | 260cd/㎡ |
| Contrast | 800: 1 |
| Screen visual angle | 85°/85°/85°/85°(up/down/left/right) |
| Display interface | HDMI+VGA, auto recognization/switch through panel key |
| Touch screen(the front LCD screen equips) |
| Type | Capacitive touch, 10 points touch |
| Surface hardness | 7H |
| Antistatic Contact discharge | 4KV |
| Screen transparency | >90% |
| Response time | <5ms |
| Touch life | > 50 million times |
| Desktop Lifter |
| Lifting up/down time | 30s |
| Screen elevation angle | Default 15°, adjustable within 0~30° |
| Control mode | Manual control, wireless remote control, RS-232 control, RS-485 control |
| Communication distance | Wireless remote control: 30m, RS-232 control, RS-485 control: 1200m |
| Universal Specifications |
| Color | Sandblasted Black / Silver; Brushed Black / Silver (customizable) |
| Material | Aluminum alloy panel + aluminum alloy chassis |
| Power | Voltage AC220V±10% 50Hz (AC 110V customizable) |
| Maximum power | 25W |
| Operating temperature | 0~45°C |
| Panel dimension | 555×70×3mm | 601×70×3mm | 629.5×70×3mm |
| Case size | 539×60×647mm | 585×60×647mm | 615×60×716mm |
| Package size(carton) | 608×132×750mm | 660×132×750mm | 690×132×815mm |
| Net Weight | 14kg | 15kg | 16kg |
| Gross weight | 16.5kg | 17.5kg | 17.5kg
|

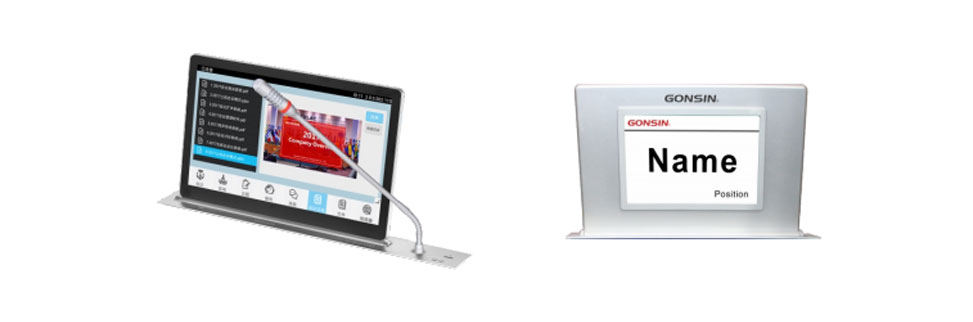

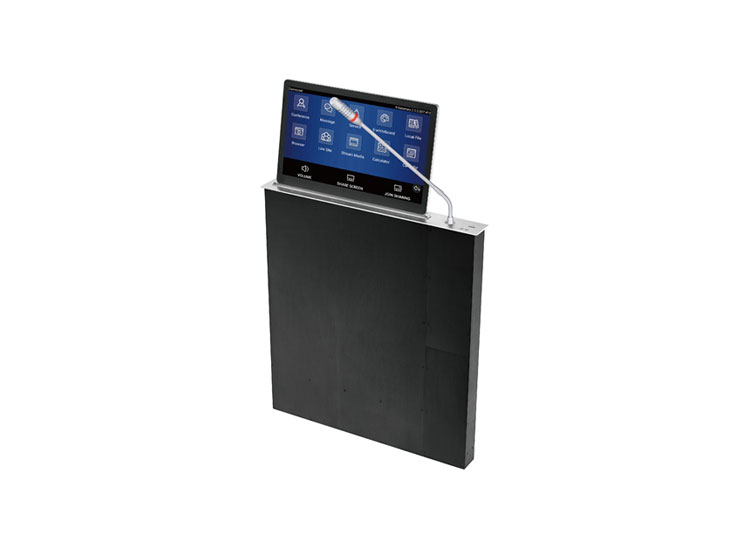

Functions of Dual Screen Touch Control LCD Lifting Terminal
Desktop Lifter Microphone
Work with chairman/delegate connector;
Auto straightening for mic when lifting down;
Microphone discussion modes: Operator/Auto/ FIFO/ VOX/ Request to speak( with software);
Unlimited number of chairman units or vice chairman units;
In VOX mode, microphones will be activated as users speak. VOX sensitivity (high/middle/low) and mic time-out can be adjusted by the server. Besides the chairman unit, 4 delegate unit can be activated at the same time;
Electret cardioid directional microphone brings better sound quality;
Highly resistant to mobile phone interference
Auto camera tracking with preset panoramic position; SD/HD camera tracking is supported;
Expansion function: can be connected with voting module and simultaneous interpretation module
The system supports auto repairing and hot sweeping;
Co-work with software, speaking time can be managed based on situation
Touch Control Desktop LCD Lifter
Separated lifting design for LCD screen and mic, with panel keys control lifting of both, flexible and easy to operate; easy to hide and store the equipment;
The front screen is a 15.6/17.3/18.5 inch IPS full-view HD LCD screen(resolution 1920×1080) with 10 points touch; suit for paperless terminal;
Utilize low-speed micro-motor cooperate with high-quality timing belts and high-precision guide rails and bearings, enabling fast and smooth lifting; wear-resisting design secures long service life;
Low noise design produces low noise during lifting:
The default elevation angle is 15° when the LCD screen is lifted; support continuous adjustment within 0- 30°;
Lifter panels and chassis are made of aluminum alloy with light weight, high strength and exquisite appearance;
Slim design with narrow bezel, the suitable 16:9 display scale provides superior users viewing experience.
Support 10 points touch, stable and sensitive;
Lifter panel has switches for: Up, Stop, Down, on and off for multimedia conference terminal;
The lifter supports manual control, wireless remote control, RS-232 control, RS-485 control, carrying out unified control and grouping control for up/down/stop status of lifter
Support reading files from USB flash disk;
With HDMI and VGA interface, signals can be automatically identified, and can be switched by panel keys, when there is no signal input, the screen automatically enters the power-saving mode.

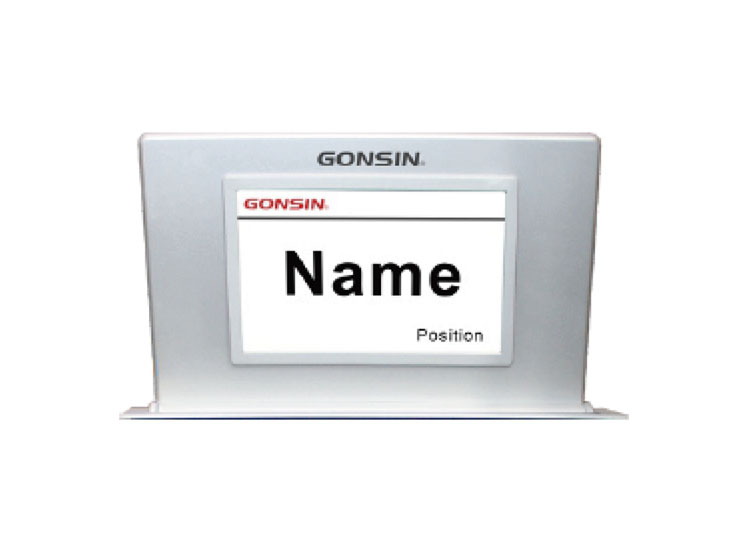

Electronic nameplate: the back screen equips 11.6 inches super bright HD LCD screen( resolution 1366×768);16:9 display ratio for better and higher-quality image display.
Display user's information synchronously, such as user’s name/position or title/organization name/ Logo and etc.; support font/ background/ customized template.
Support personalized customization: the voting module, simultaneous interpretation module, charging module and other modules can be customized. The integrated panel does not affect the appearance of the desktop.
The lifter has a power loop outlet socket, which reduces power wiring and makes the scene more tidy and beautiful.
Technical Parameters of Dual Screen Touch Control Desktop Lifter Terminal
| Model | GX-LF156DD-X | GX-LF173DD-X | GX-LF185DD-X |
| GX-LF156DX-X | GX-LF173DX-X | GX-LF185DX-X |
| GX-LF156FD-X | GX-LF173FD-X | GX-LF185FD-X |
| GX-LF156FX-X | GX-LF173FX-X | GX-LF185FX-X |
| Microphone |
| Type | Cardioid directional electret |
| Frequency response | 20Hz~20kHz |
| Max SPL | 125 dB (THD<3%) |
| Dynamic range | >85dB |
| VOX sensitivity | H/M/L(76dB/80dB/82dB) |
| Sensitivity | -46dB±4dB |
| THD | <0.05% |
| SNR | ≥96dB |
| Mic length | 450mm |
| Back LCD Screen |
| Display size | 11.6 inches,256mm(H)×144mm(V) |
| Resolution ratio | 1366×768dpi |
| Brightness | 300cd/ |
| Contrast | 600:1 |
| Screen visual angle | 85°/85°/85°/85°(up/down/left/right) |
| Front LCD Screen |
| Screen size | 375×250mm | 406×265mm | 446×285mm |
| Thickness | 5mm( the thinnest)/16mm( the thickest) | 10.5mm |
| Resolution ratio | 1920×1080dpi |
| Brightness | 220cd/㎡ | 300cd/ | 260cd/㎡ |
| Contrast | 800:1 |
| Screen visual angle | 85°/85°/85°/85°(up/down/left/right) |
| Display interface | HDMI+VGA, auto recognization/switch through panel key |
| Touch screen(the front LCD screen equips) |
| Type | Capacitive touch, 10 points touch |
| Surface hardness | 7H |
| Antistatic Contact discharge | 4KV |
| Screen transparency | >90% |
| Response time | <5ms |
| Touch life | > 50 million times |
| Desktop Lifter |
| Lifting up/down time | LCD 30s; MIC 50s |
| Screen elevation angle | Default 15°, adjustable within 0~30° |
| Control mode | Manual control, wireless remote control, RS-232 control, RS-485 control |
| Communication distance | Wireless remote control: 30m; RS-232: 15m ; RS-485 : 1200m |
| Universal specifications |
| Color | Sandblasted Black / Silver; Brushed Black / Silver (customizable) |
| Material | Aluminum alloy panel + aluminum alloy chassis |
| Power | Voltage AC220V±10% 50Hz (AC 110V customizable) |
| Maximum power | 25W |
| Operating temperature | 0~45°C |
| Panel dimension | 555×70×3mm | 601×70×3mm | 629.5×70×3mm |
| Case size | 539×60×647mm | 585×60×647mm | 615×60×716mm |
| Package size(carton) | 608×132×750mm | 660×132×750mm | 690×132×815mm |
| Net Weight | 14.2kg | 15.2kg | 16.2kg |
| Gross weight | 16.7kg | 17.7kg | 19.2kg |

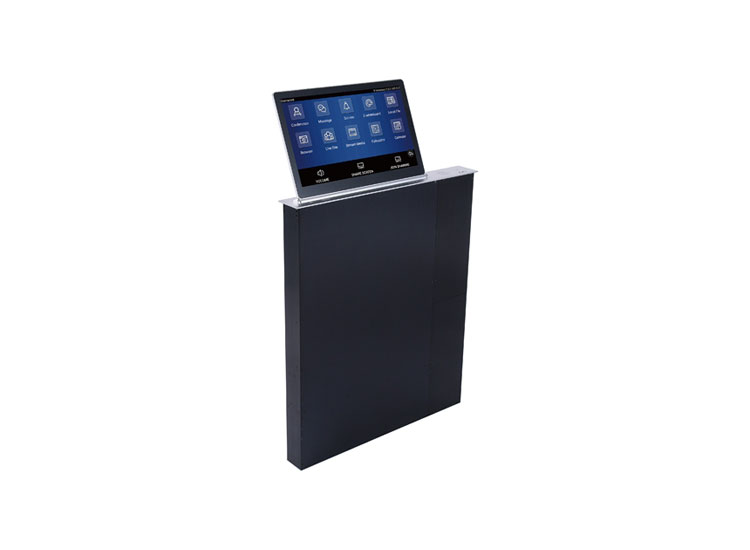

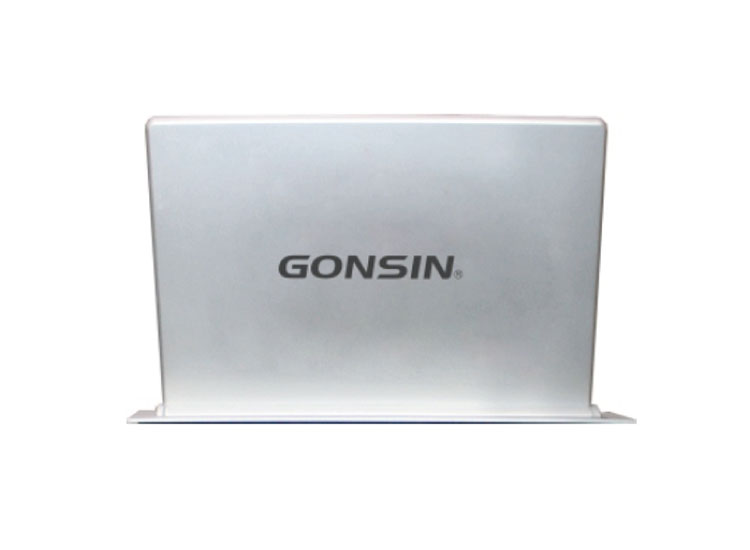

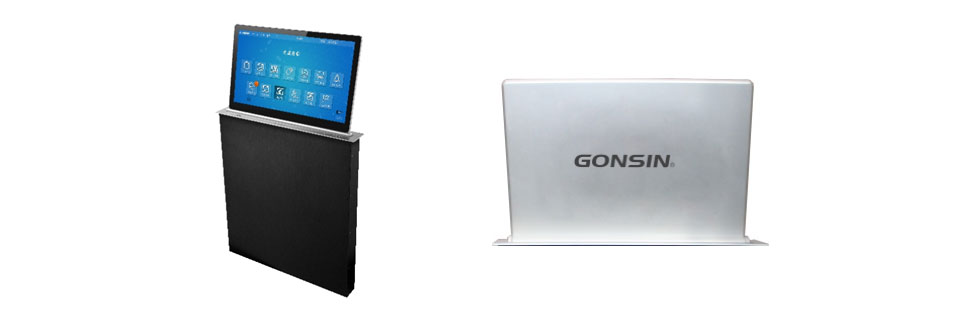

Functions of Touch Control LCD Lifter
Separated desktop lifter design for LCD screen and mic, with panel keys control lifting of both, flexible and easy to operate; easy to hide and store the equipment;
The front screen is a 15.6/17.3/18.5 inch IPS full-view HD LCD screen(resolution 1920×1080) with 10 points touch; suited for a paperless terminal
Utilize low-speed micro-motor and strengthened wire rope gearing, enabling fast and smooth lifting; wear-resisting design secures long service life;
Low noise design produces low noise during lifting:
The default elevation angle is 15° when the LCD screen is lifted; support continuous adjustment within 0~30°;
Lifter panels and chassis are made of aluminum alloy with lightweight, high strength, and exquisite appearance;
Slim design with a narrow bezel, the suitable 16:9 display scale provides a superior user viewing experience.
Support 10 points touch, stable, and sensitive;
The lifter panel has switches for Up, Stop, Down, on, and off for the multimedia conference terminal;
The lifter supports manual control, wireless remote control, RS-232 control, RS-485 control, carrying out unified control and grouping control for the up/down/stop status of the desktop lifter
Support reading files from USB flash disk;
With HDMI and VGA interfaces, signals can be automatically identified and can be switched by panel keys.
Technical Parameters of Touch Control LCD Lifter
| Model | GX-LF156-X | GX-LF173-X | GX-LF185-X |
| Front LCD Screen |
| Screen size | 375×250mm | 406×265mm | 446×285mm |
| Thickness | 5mm(the thinnest)/8mm(the thickest) | 10.5mm |
| Resolution ratio | 1920×1080dpi |
| Brightness | 220cd/m2 | 300cd/m2 | 260cd/m2 |
| Contrast | 800: 1 |
| Screen visual angle | 85°/85°/85°/85°(up/down/left/right) |
| Display interface | HDMI+VGA, auto recognization/switch through panel key |
| Touch screen(the front LCD screen is equipped) |
| Type | Capacitive touch, 10 points touch |
| Surface hardness | 7H |
| Antistatic Contact discharge | 4KV |
| Screen transparency | >90% |
| Response time | <5ms |
| Touch life | > 50 million times |
| Lifter |
| Lifting up/down time | 30s |
| Screen elevation angle | Default 15°, adjustable within 0~30° |
| Control mode | Manual control, wireless remote control, RS-232 control, RS-485 control |
| Communication distance | Wireless remote control: 30m, RS-232 control, RS-485 control: 1200m |
| Universal specifications |
| Color | Silver/Black(customizable) |
| Material | Aluminum alloy panel + aluminum alloy chassis |
| Power | Voltage AC220V±10% 50Hz (AC 110V customizable) |
| Maximum power | 25W |
| Operating temperature | 0~45°C |
| Panel dimension | 430×70×3mm | 476×70×3mm | 510×70×3mm |
| Case size | 415×60×562mm | 461×60×562mm | 495×60×647mm |
| Package size(carton) | 488×132×660mm | 538×132×660mm | 565×132×745mm |
| Net Weight | 7kg | 8kg | 9kg |
| Gross weight | 9kg | 10kg | 11.5kg |

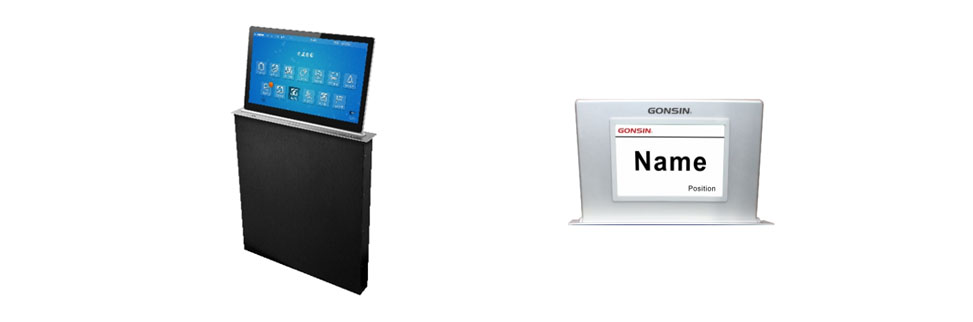

Functions of Dual Screen Touch Control LCD Lifter
Separated lifting design for LCD screen and mic, with panel keys control lifting of both, flexible and easy to operate; easy to hide and store the equipment;
The front screen is a 15.6/17.3/18.5 inch IPS full-view HD LCD screen(resolution 1920×1080) with 10 points touch; suit for paperless terminal
Utilize low-speed micro-motor and strengthened wire rope gearing, enabling fast and smooth lifting; wear-resisting design secures long service life;
Low noise design produces low noise during lifting:
The default elevation angle is 15° when the LCD screen is lifted; support continuous adjustment within 0~30°;
Lifter panels and chassis are made of aluminum alloy with light weight, high strength and exquisite appearance;
Slim design with narrow bezel, the suitable 16:9 display scale provides superior users viewing experience.
Support 10 points touch, stable and sensitive;
Lifter panel has switches for: Up, Stop, Down, on and off for multimedia conference terminal;
The lifter supports manual control, wireless remote control, RS-232 control, RS-485 control, carrying out unified control and grouping control for up/down/stop status of lifter
Support reading files from USB flash disk;
With HDMI and VGA interface, signals can be automatically identified, and can be switched by panel keys.

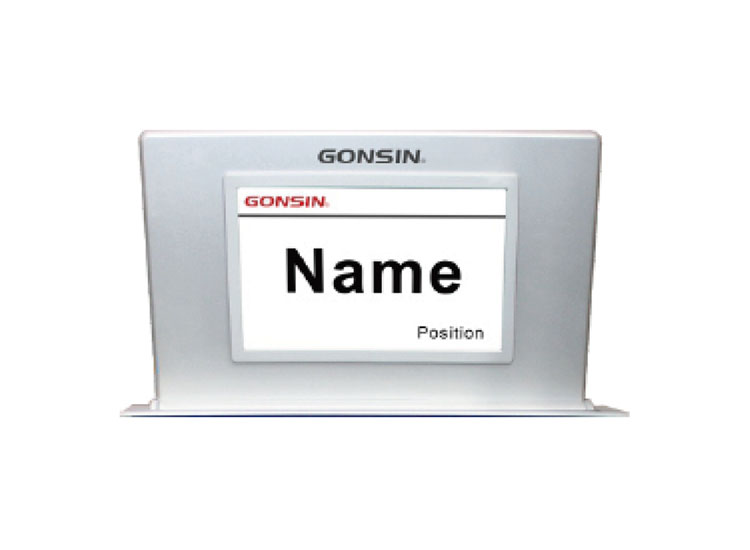

Electronic nameplate: the back screen equips 11.6 inches super bright HD LCD screen( resolution 1366×768);16:9 display ratio for better and higher-quality image display.
Display user's information synchronously, such as user’s name/position or title/organization name/ Logo and etc.; support font/ background/ customized template.
Technical Parameters of Dual Screen Touch Control LCD Lifter
| Model | GX-LF156B-X | GX-LF173B-X | GX-LF185B-X |
| Front LCD Screen |
| Screen size | 375×250mm | 406×265mm | 446×285mm |
| Thickness | 5mm(the thinnest)/8mm(the thickest) | 10.5mm |
| Resolution ratio | 1920×1080dpi |
| Brightness | 220cd/m2 | 300cd/m2 | 260cd/m2 |
| Contrast | 800: 1 |
| Screen visual angle | 85°/85°/85°/85°(up/down/left/right) |
| Display interface | HDMI+VGA, auto recognization/switch through panel key |
| Back LCD Screen |
| Display size | 11.6 inches,256mm(H)×144mm(V) |
| Resolution ratio | 1366×768dpi |
| Brightness | 300cd/㎡ |
| Contrast | 600:1 |
| Screen visual angle | 85°/85°/85°/85°(up/down/left/right) |
| Touch screen(the front LCD screen equips) |
| Type | Capacitive touch, 10 points touch |
| Surface hardness | 7H |
| Antistatic Contact discharge | 4KV |
| Screen transparency | >90% |
| Response time | <5ms |
| Touch life | > 50 million times |
| Lifter |
| Lifting up/down time | 30s |
| Screen elevation angle | Default 15°, adjustable within 0~30° |
| Control mode | Manual control, wireless remote control, RS-232 control, RS-485 control |
| Communication distance | Wireless remote control: 30m, RS-232 control, RS-485 control: 1200m |
| Universal specifications |
| Color | Silver/Black(customizable) |
| Material | Aluminum alloy panel + aluminum alloy chassis |
| Power | Voltage AC220V±10% 50Hz (AC 110V customizable) |
| Maximum power | 25W |
| Operating temperature | 0~45°C |
| Panel dimension | 430×70×3mm | 476×70×3mm | 510×70×3mm |
| Case size | 415×60×562mm | 461×60×562mm | 495×60×647mm |
| Package size(carton) | 488×132×660mm | 538×132×660mm | 565×132×745mm |
| Net Weight | 7.2kg | 8.2kg | 9.2kg |
| Gross weight | 9.2kg | 10.2kg | 11.7kg |
System Configuration of Paperless Conference System-LCD Lifter
اللغة العربية
Español
Français
Pусский
简体中文
