Paperless Conference System DCS-2071D

Paperless Conference System (2).png
Paperless Conference System (1).png
Paperless Conference System (4).png
Paperless Conference System (5).png
Paperless Conference System (3).png
Paperless Conference System (2).png
Paperless Conference System (1).png
Paperless Conference System (4).png
Paperless Conference System (5).png
Paperless Conference System (3).png

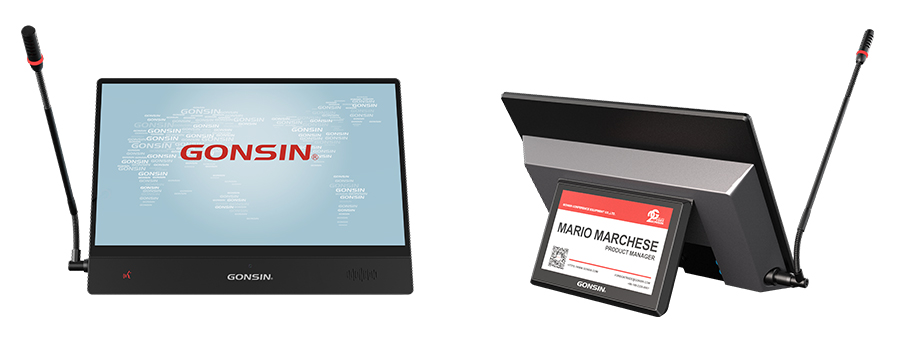

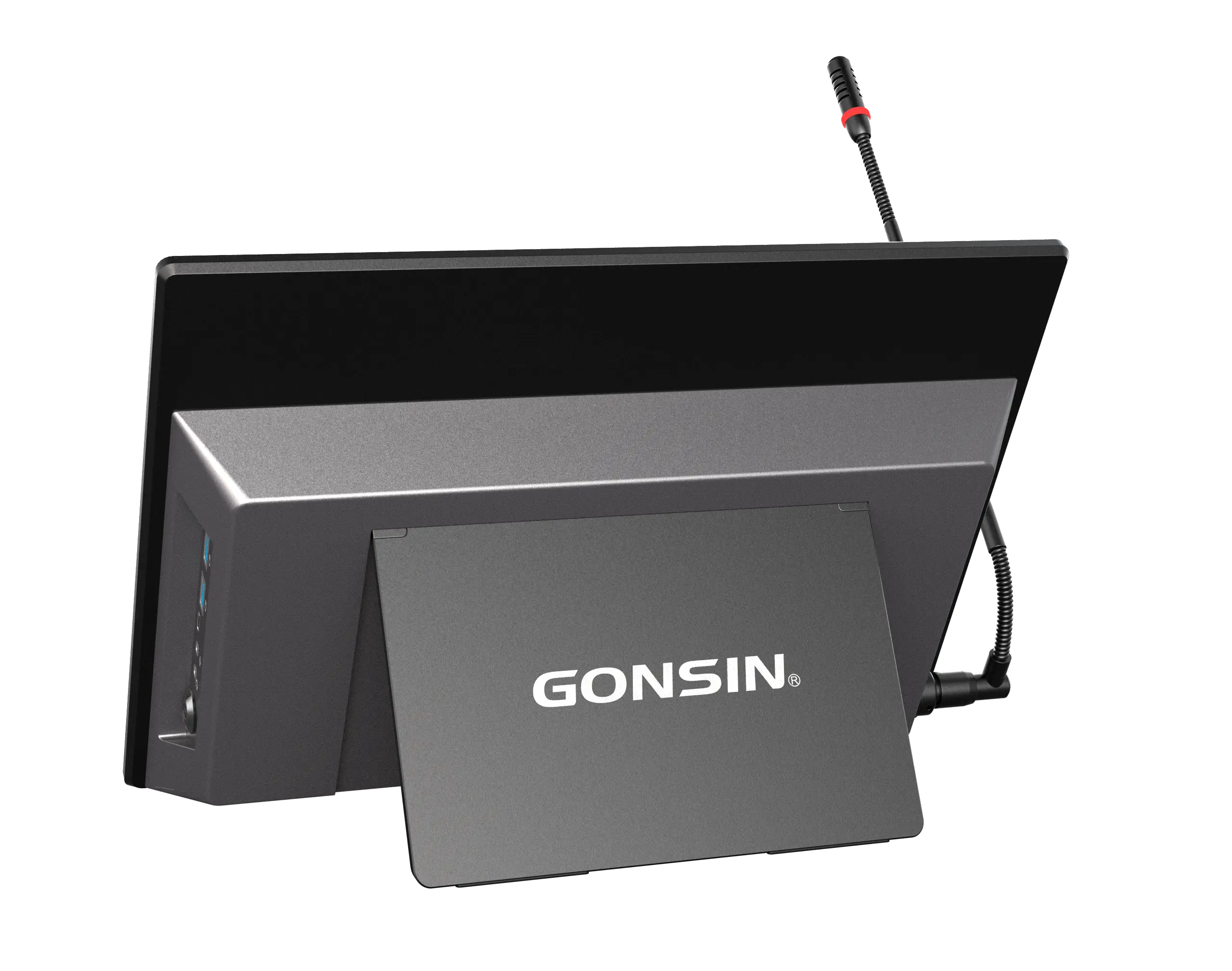

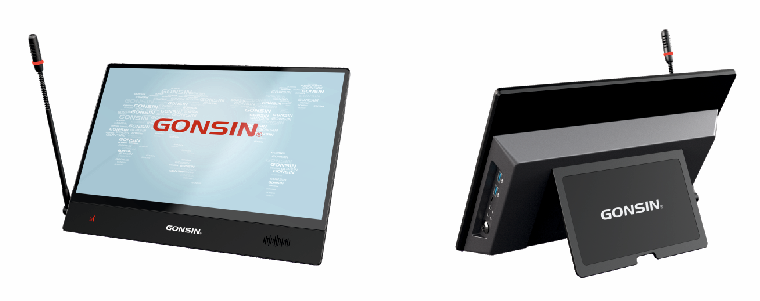

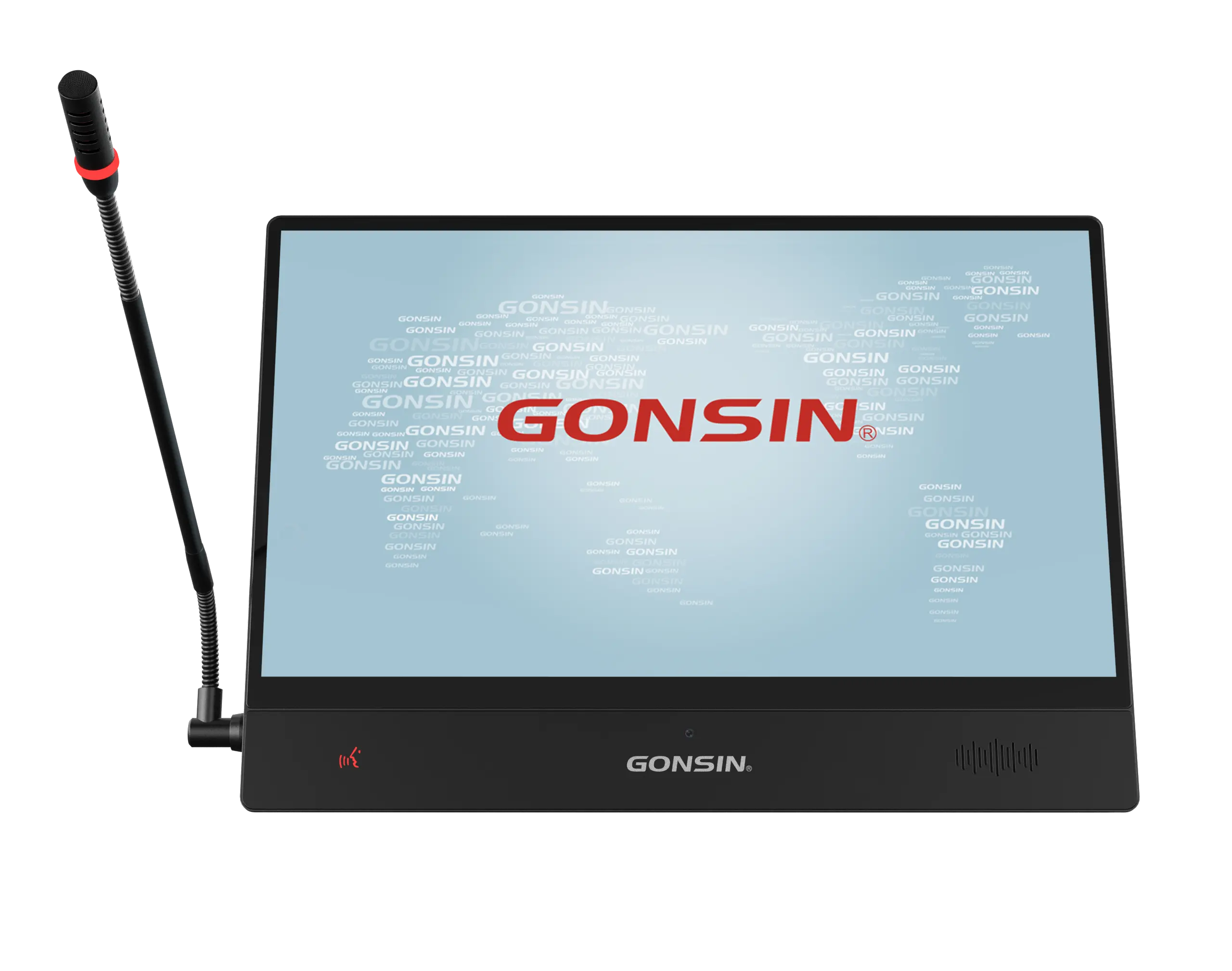

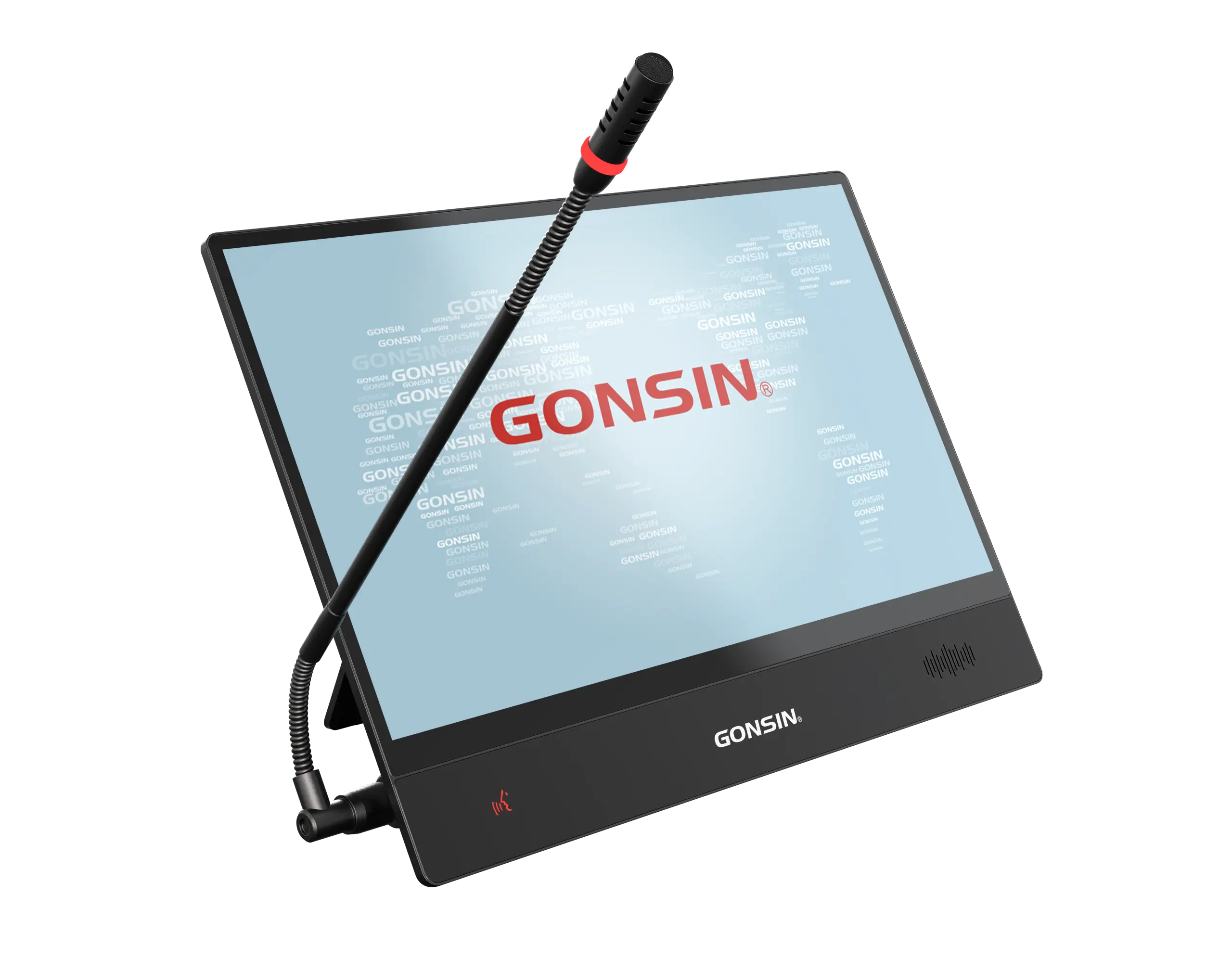

Desktop All-in-one Terminal DCS-2071D


Functions

  • Desktop all-in-one terminal with full metal shell design, with adjustable stand, the screen angle can be adjusted flexibly

  • The screen adopts narrow borders on three sides, equipped with a 15.6-inch LCD screen, and supports capacitive touch screen

  • With anti-wiring off design in the back , effectively avoiding wiring off when moving; at the same time, it has the function of protecting the connector and hiding the outgoing line, ensuring that the desktop is clean and beautiful.

  • Equipped with a gooseneck microphone, adopting the design of adjustable shaft and hose microphone stem. It has a variety of microphone stem lengths, for flexible and tidy storage. The microphone is equipped with a status indicator light ring and features an illuminated touch-sensitive integrated button.

  • Equipped with a high-fidelity speaker. Supports conference monitoring function. Capable of playing audio from various sources, such as multimedia files, music, videos, video conferences, and external audio. Utilizes a 2W chamber speaker, with optional configurations available for the speaker setup.

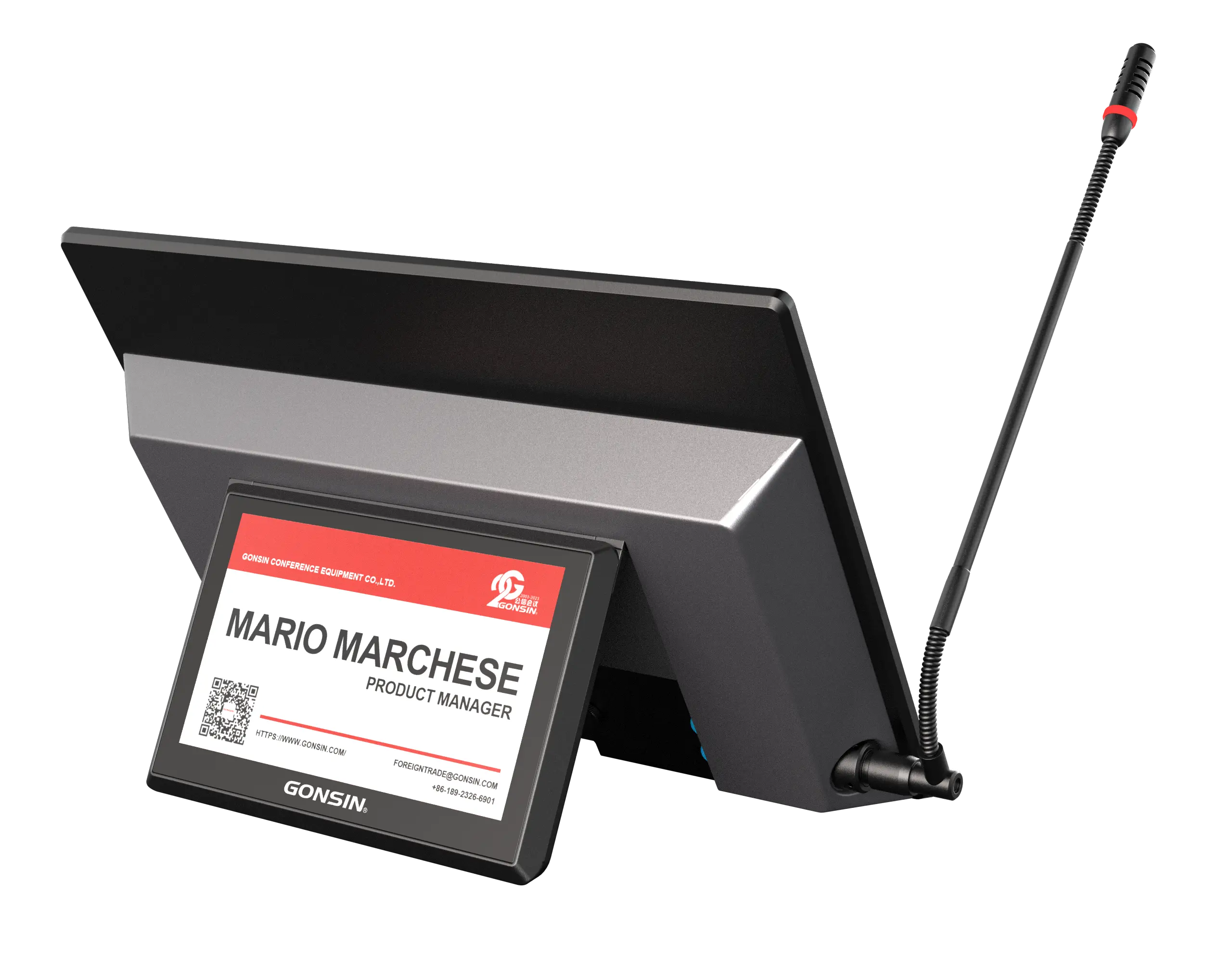

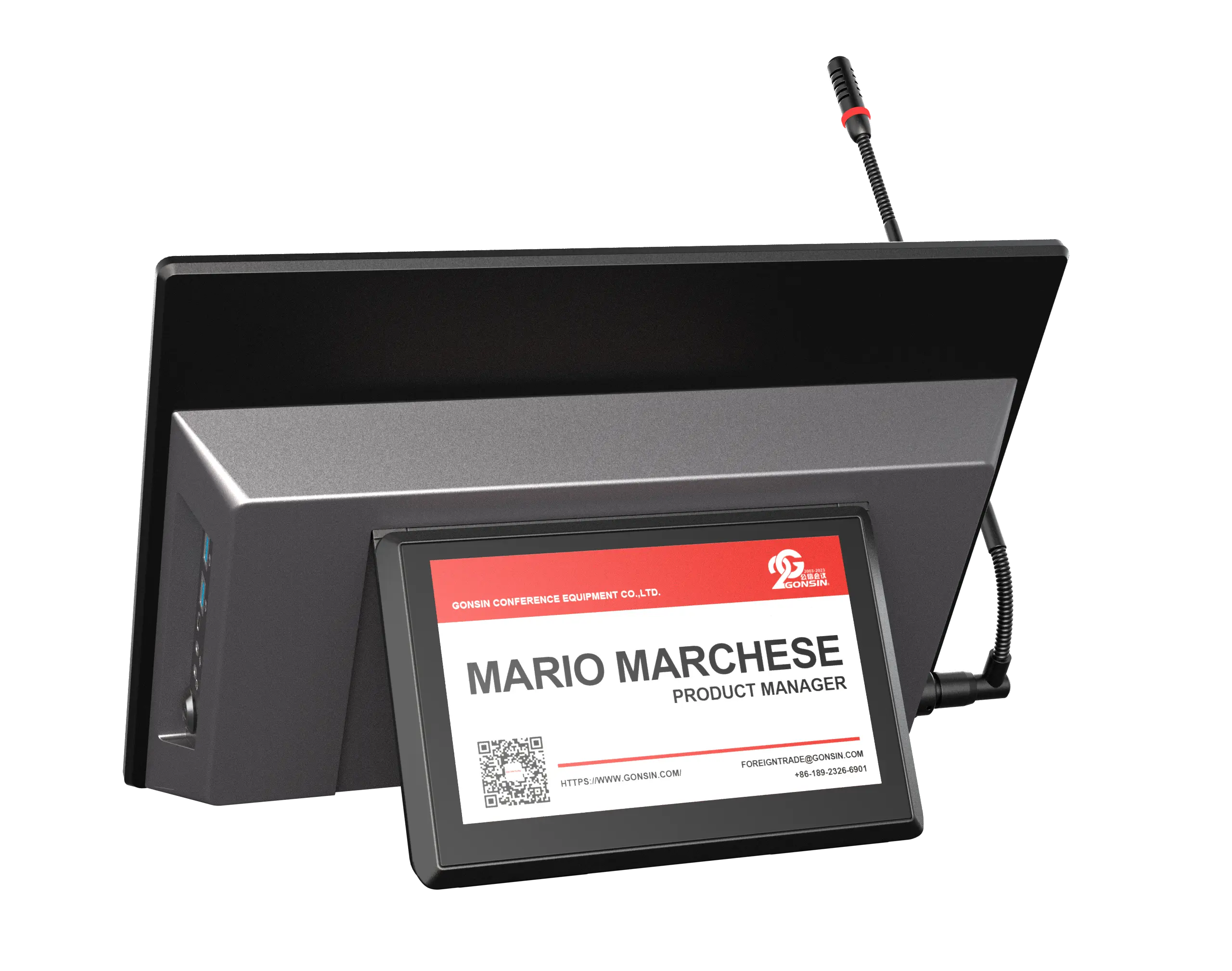

  • The electronic table card is equipped with plexiglas decorative piece. Support mirror, frosted and other materials available Support user LOGO customization, monochrome and color graphics customization (chargeable)

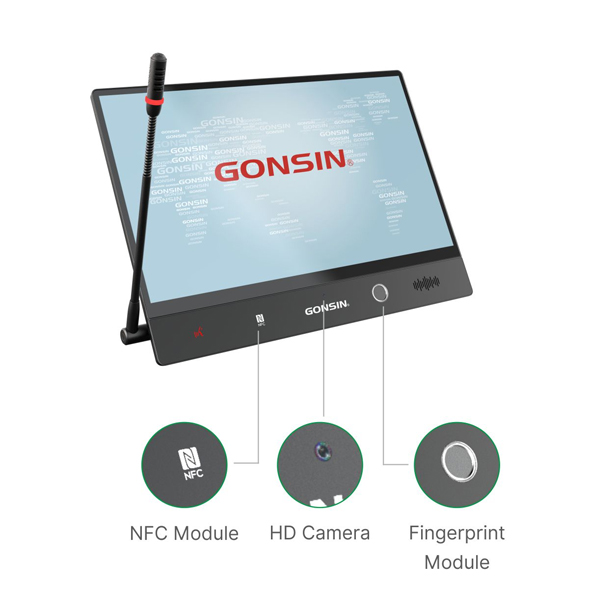

  • Supports optional high-definition camera (depending on the model). Utilizes a 5-megapixel camera, with optional configurations available for the camera setup.

  • Supports optional NFC module (depending on the model). Enables close-range wireless communication with NFC cards and  smart cards, suitable for applications such as conference registration, identity recognition, operation authorization, and data transfer.

  • Supports optional fingerprint module (depending on the model). Provides fingerprint recognition functionality, suitable for applications such as conference registration, identity recognition, and operation authorization.

  • Supports optional 7.5-inch wireless electronic ink screen with a resolution of 800x480 (depending on the model). The screen     provides a soft, natural, and flicker-free display, resembling the effect of paper, without affecting the shooting results. It comes with built-in embedded software for electronic table cards. It can display participant names, positions, company names,company logos, and other information. Supports customization of fonts, backgrounds, and templates.

  • Support extended simultaneous interpretation function. Support simultaneous interpretation of 32 (1+31) channels. Support channel expansion, up to 64 channels (need to add equipment). The audio frequency response of the simultaneous interpretation channel can reach 20Hz~20kHz

  • With paperless meeting terminal software, paperless meeting functions can be realized. Functions include but not limited to: registration, voting, evaluation, quick voting, document browsing, annotation, message, conference services, streaming viewing,  screen sharing, electronic whiteboard, site control, video conferencing, notepad, simultaneous interpretation, voice transcription, voice control, etc. (some functions need equipment support)

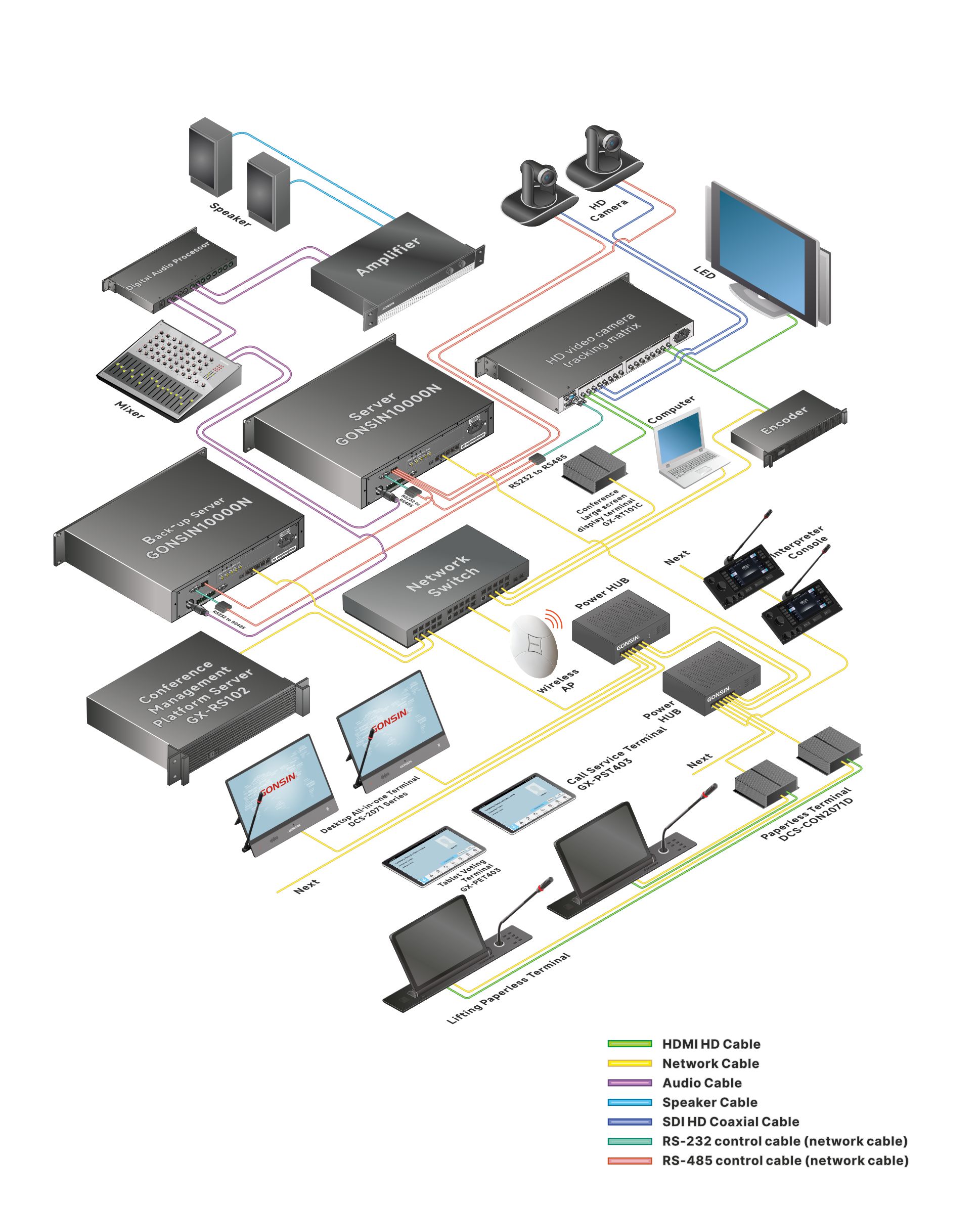

  • It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The breakdown of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system to work

  • Conference terminal, switch, power HUB and conference server are all connected by network cables. Automatic restoration function, support hot plug

  • Supports two power supply methods: DC power supply and Ethernet power supply. It features a linear voltage regulator circuit with overvoltage protection, ensuring safety and reliability. It comes with built-in embedded power management software that monitors the device's voltage status, enabling device operation and maintenance management.

  • Using full digital audio technology, built-in DSP digital audio processing software. Supports balance adjustment, which can automatically filter out invalid low-frequency components in the sound, avoid low-frequency impact sounds, and improve sound clarity. Support independent or unified adjustment of the volume and sensitivity of each terminal. Support terminal volume/sensitivity lock to avoid setting confusion caused by improper operation

  • The embedded software of the conference terminal provides multiple discussion modes, including: VOX, Auto, FIFO, Operator, Request and PTT.

  • VOX function: in VOX mode, the unit will be activated for user speaks; VOX sensitivity can be adjust by the server; microphone time-out is adjustable

  • Auto function: Only the number of microphones limited by the system can be activated. When the number of open microphones is greater than the system limit, press the speaking button, the microphone cannot be turned on, you need to turn off the microphones that have been turned on, and then the microphone can be turned on by pressing the button.

  • FIFO function: When the number of open microphones is greater than the system limit, press the speak button to turn on and automatically turn off the earliest open microphone

  • Operator function: When the number of open microphones is greater than the limit, press the speak button to enter the application waiting state. After the opened microphones are closed, the applied microphones will be opened automatically

  • Request function: In Request, press the speak button and the microphone turns on and release the speech button and the microphone will be turned off

  • PTT function: the delegate send request-to-speak by terminal, and can speak upon chairman approval. The chairman terminal can be activated anytime without approval

  • The maximum number of turned on microphone at the same time is 5. There is no limit to the number of system terminals.

  • Built-in camera tracking management software. Support HD automatic camera tracking, support preset panoramic position. Support image tracking and voice tracking function (need to add equipment)

  • Each terminal has unique unit ID; the conference system can assign unit ID to conference terminal automatically or manually

  • Any terminal can be set as the chairman, vice-chairman, secretary terminal (with no limit on the quantity), in addition to all the functions of the delegate terminal, it also has the following functions:

  • Chairman terminal can be activated at any time without limitation of the turned on microphones

  • Chairman terminal can control the delegate terminals to turn on or off

  • Chairman terminal can control the paperless functions such as registration, voting, screen sharing and so on.


Technical Parameter

Installation Type

Desktop

Connection Method

Network cable

Color

Black+Grey

Operating System

Android

Memory

4+16GB

Screen Dimensions

15.6 inches, 16:9

Screen Resolution

1920×1080

Extension Interface

USB port×3

DC interface×1

RJ45 interface×2

Ø3.5 mm interface×2

Speaker Module

2W/8Ω

Power Supply

24V

Power Supply Method

Adapter, conference server or power HUB

Dimension (L×W×H)

Open the stand: 375×290×40mm (including mic stem)

Close the stand:  375×243×180mm (including mic stem)

Weight

3kg

Microphone Type

Heart pattern directional electret

Directivity

0°/180°: >20dB (1kHz)

Effective Pickup Distance

≥80cm

Microphone Stem Length

260mm

Audio Freq. Response

20Hz~20kHz

Sensitivity

-46 dBV/Pa

Equivalent Noise Level

20dBA (SPL)

Max. SPL

125dB (THD<3%)

THD

<0.05%

SNR

≥96dB



Simultaneous Interpretation Module V1.0

Functions

  • Support simultaneous interpretation function of 32 (1+31) channels

  • Support channel expansion, up to 64 channels (need to add device support)

  • The audio frequency response of the simultaneous interpretation channel can reach 20Hz~20kHz


NFC Module  GX-NFC101

Functions

  • Realize short-distance wireless communication with NFC cards and smart cards for meeting registration, identification, operation authorization, data transmission, etc.


Technical Parameter

Reader support

Mf0: Ultralight, Ultralight C, NTAG203, NTAG213

MF1: S50, S70, FM11RF08 and their compatible cards

NFC parameters

Support ISO14443 TYPE A standard, Mifare standard card


Reader BR-101A


Functions

  • Using 13.56MHz non-contact radio frequency technology, embedded NXP highly integrated read-write chip as radio frequency base station

  • Support ISO14443 TYPE A standard/Mifare standard card

  • Support USB to serial port communication

Technical Parameter

Reader support

Mf0: Ultralight, Ultralight C, NTAG203, NTAG213

MF1: S50, S70, FM11RF08 and their compatible cards

NFC parameters

Support ISO14443 TYPE A standard, Mifare standard card

Serial protocol (UART)

Serial bit data (8), parity bit (none), stop bit (1), baud rate 19200


Camera Module GX-CAM102

Functions

  • Realize face recognition, photo taking, video recording, video conferencing and other functions

Technical Parameter

Pixel

5 Megapixels (depending on the model)

Focus Mode

Auto zoom (depending on model)

Support Resolution and Frame Rate

1920×1080@30fps, 1280×1024@30fps, 1280×720@30fps, 1024×768@30fps,

800×600@30fps, 640×480@30fps,

320×240@30fps (depending on the model)


Fingerprint Recognition Module GX-FPR102


Functions

  • Realize fingerprint recognition function, which can be used for meeting registration, identity recognition, operation authorization and other applications

  • Support self-learning function. During the fingerprint identification process, after the latest fingerprint feature value is successfully identified, the feature value can be integrated into the fingerprint database to make fingerprint identification more accurate as it is used

  • Support 360-degree automatic correction. Pressing your finger at any angle on the module can be recognized normally

Technical Parameter

Fingerprint Recognition Rate

99.9999%

Recognition Speed

450ms


Fingerprint Acquisition Module GX-FPA101


Functions

  • Realize the fingerprint acquisition function

  • Support self-learning function. During the fingerprint identification process, after the latest fingerprint feature value is successfully identified, the feature value can be integrated into the fingerprint database to make fingerprint identification more accurate as it is used

  • Support 360-degree automatic correction. Pressing your finger at any angle on the module can be recognized normally

Technical Parameter

Fingerprint Recognition Rate

99.9999%

Recognition Speed

450ms


Electronic Table Card Module GX-ENP101


Function

  • 7.5-inch electronic ink screen, close to the paper display effect, the display screen is soft and natural, no flicker, does not affect the shooting effect. Front and rear dual screen design, dual screen can synchronously display participants' information, support LOGO, background picture, background color, unit, name, position and other information dual-screen synchronous display. Supports three colors: black, white and red.High contrast. Supports English display.

  • Built-in electronic table software. Devices can be quickly assigned to the meeting room according to the actual situation, and centralized management can be conducted on computers, Android tablet terminals, and Android mobile   terminals. Support quick call device, complete the table information of all participants quickly update, to solve different meetings, different participants, different seat arrangements and many other needs

  • Connected to the network base station, it can display and edit management of single or multiple electronic table signs through computer software, webpage, APP and Mini Program, and batch update can be completed in 30~60 seconds. It can be connected to intelligent meeting management platform for unified management of electronic table signs. Can automatically update the content according to the meeting arrangement and display the corresponding information for different meetings

  • By connecting mobile phones with Bluetooth or NFC, Android, Harmony and IOS terminals can edit single or multiple electronic table cards. Transmit information data to the electronic table card through APP to realize screen refresh and lasting display of table card image after refresh. Support one key to send conference template



Technical Parameters

Resolution

800×480

Viewing angle

Up, down, left and right > 178°

Communication method

Wireless: BLE 5.0/Bluetooth,2.402~2.480GHz;NFC: ISO/IEC14443-A

Transmission distance

within 20 meters radius (normal working environment)

Battery parameters

3.1~3.3V, 3600mA/h,

Service life: 2 years (normal working environment)

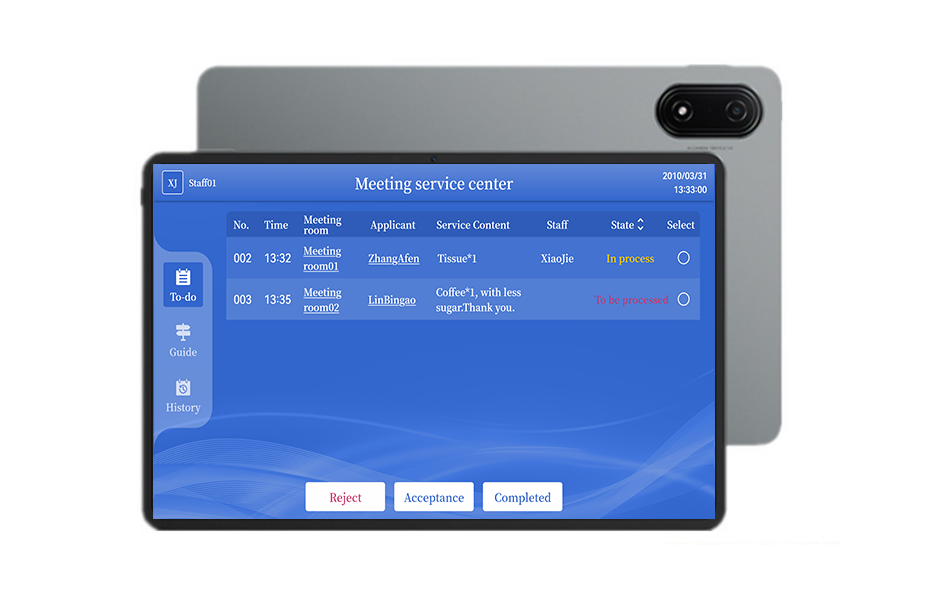

Call Service Terminal  GX-PST403



Function

  • Real-time display of service request information, including: time, service content, service status, etc. Users can view pending tasks and use the guidance feature to find the location of the meeting room and the seat of the applicant. Supports historical queries of meeting services.

  • Adopts an integrated metal chassis, equipped with a 10.1-inch screen (supports configuration upgrades) and 1920×1200 high resolution. Supports capacitive touch screen and 10-point touch

  • Built-in 5-megapixel camera, camera configuration is optional (depending on the model)

  • Built-in high-fidelity speaker, capable of playing multimedia files/music/video/video conferencing/external audio, etc

  • Supports optional NFC module (depending on the model), enabling short-range wireless communication with mobile     terminals, NFC devices, NFC cards, smart cards, and ID cards, applicable for meeting registration, identity recognition, operation authorization, and data transmission

  • Supports optional fingerprint module (depending on the model), enabling fingerprint recognition, applicable for meeting check-in, identity recognition, and operation authorization

  • Built-in wireless scanning software supports dual-band Wi-Fi communication (2.4G + 5.8G) and Bluetooth communication.

  • Powered by an internal battery with over-discharge protection circuit, able to obtain battery level information in real- time, achieving low battery reminders and low power protection features

  • With a unique serial number, the conference system supports automatic or manual ID assignment for system devices.


Technical Parameters


Operating System

Android 7.0 or above

CPU

8-core, 2.0GHz A752 + 1.8GHz A556 (support configuration upgrades)

Memory

4GB (support configuration upgrades)

Storage

64GB (support configuration upgrades)

Interface

(Type-C) *1



Congress Server GONSIN10000N


Function

  • Designed with black tempered glass panel with navigational knob, OLED screen displays system status, number of speakers, speaking modes and other information, providing multi-language menu.

  • Support clock and date synchronized display. Support automatic/manual assignment of terminal ID. Support remote diagnosis and remote upgrade.

  • Adopts full-digital audio technology, supports 48KHz audio sampling frequency, audio frequency response up to 20Hz~20kHz, supports automatic mixing, volume adjustment, equalization adjustment, sensitivity adjustment and other functions.

  • Based on LINUX operating system platform development, support wired conference terminal and wireless conference terminal access to the same conference server. The default maximum number of simultaneous openings is 5 (wired)/4 (wireless). Support multi-chairman application and unlimited number of chairmen/vice-chairmen.

  • Provide 2 network interfaces with PoE power supply capability. Support connection to devices such as wireless access points, switches, routers, and computers. Support SSID wireless network management,    managing 128 wireless access points and 650 wireless terminals. Support one-click shutdown function to uniformly power off all wireless terminal devices.

  • Provide a terminal interface with 4 channels and 24V power supply capability, support three connection modes: hand-in-hand, star and hybrid. Support dual-chain connection (specified model), which can provide two sets of mutually independent network communication system, and any one equipment failure or line failure of the whole system will not affect the work of the system.

  • Provide 4-channel packet audio output interface. The system has a terminal grouping function, which can    be used as a large system or split into up to 4 independent systems to meet the application requirements of space merging/splitting.

  • Support external audio signal input, which can be connected to alarm audio, broadcast audio or third-party conference system, simultaneous interpretation system, public address, etc.

  • Provide 1 channel USB interface on the front panel. Insert U disk (FAT32 format) to support manual/automatic audio recording, and display the recording status. When used with acquisition card and software, it can realize the function of recording and video.

  • Provide connection interface for simultaneous interpretation equipment, which can be connected to the interpreter terminal and wireless simultaneous interpretation access point. The audio frequency response of the simultaneous interpretation channel can reach 20Hz~20KHz, and it can realize 6-channel (wireless conference terminal)/32-channel (wired conference terminal)/16-channel (wireless simultaneous interpretation receiver) simultaneous interpretation function (including original sound channel).

  • Provide 1 channel AES67 network audio interface (specified model). The system complies with AES67   network audio standard, is compatible with Dante protocol, and supports channel management through Dante Controller software.

  • Support multiple speaking modes: FIFO, Auto, Operator, VOX, PTT, Request, Time-limited (requires software integration)

  • FIFO (First In First Out): When the number of activated microphones exceeds the system's limit, pressing the speaking key will activate the microphone and deactivate the earliest activated microphone.

  • Auto: When the number of activated microphones exceeds the system's limit, pressing the speaking key will restrict microphone activation. Microphones can only be activated after previously activated microphones are deactivated.

  • Operator: When the number of activated microphones exceeds the system's limit, pressing the speaking key will put the microphone into a waiting state. After the activated microphone turns off, the applied microphones will be activated automatically.

  • VOX: When the microphone detects sound, it will automatically activate. When no sound is detected for a set period, the microphone will automatically deactivate. Sensitivity and automatic deactivation time can be adjusted. Manual activation and deactivation by a key are also supported.

  • PTT(Push-to-Talk): Holding down the speaking key on a terminal will activate the microphone. Releasing the speaking key will deactivate the microphone.

  • Request: When press the delegate terminal, the microphone enters a request state. Upon approval by the chairman terminal, microphones in the request state will automatically activate. The chairman/vice chairman terminals can speak without needing approval.

  • Time-limited (Requires Software Integration): When the microphone is activated, it enters a countdown state. When the countdown reaches zero, the microphone will automatically deactivate. The speaking countdown time can be adjusted.

  • The congress server has a dual-server hot backup function. One conference server can be set to backup mode, when the main server fails, the backup server automatically takes over the work to ensure uninterrupted operation of the system.

  • Management software with dual-computer hot backup function. One computer can be set as backup mode, when the main operating computer fails, the backup computer will automatically take over the work to ensure uninterrupted operation of the system.

  • Built-in 8 in 4 out video matrix, support the connection of SD cameras. Support external HD matrix, switcher, HD camera, support multi-camera cascade. Support automatic camera tracking function, support panoramic view.

  • With the upper computer management software (additional purchase required), it can realize the functions of meeting registration, meeting voting, discussion control and so on.

  • With chairman screen tablet (additional purchase required), it can realize meeting registration, meeting voting, discussion control and other functions, to meet the application needs of portable control.

  • With the call service management software/tablet (additional purchase required), it can check the service applications submitted by terminal devices and carry out service processing (it needs to be used with terminals with call service function).

  • With Automatic Speech Recognition System (need to purchase separately), it can realize system audio role separation, voice transcription, voice translation, subtitle display, minutes output and other functions.

  • With voice control system (additional purchase required), it can realize voice control function. Realize equipment control, task execution and other operations through voice speech. Support multiple scene quick call. Support wake-up word and command word customization.

  • Support Web page management and client software management. Support access to the central control system, visual media interactive system, intelligent conference management platform, which can realize remote control, status monitoring, fault reminder and other functions.

  • The power supply is designed with 100V~240V wide voltage input and built-in linear voltage regulator circuit for over-voltage protection. Built-in power management embedded software can monitor the voltage status of the equipment, reduce the equipment failure caused by voltage fluctuation, and realize all-weather protection.


Technical Parameters

Version

Standard Version

AES67 Version

Installation

Desktop or 19' cabinet installation

Device Interface

Balanced audio input interface (XLR) × 1

Balanced audio output interface (XLR) × 1

Unbalanced audio output interface (RCA) × 2

Packet audio output interface (Phoenix terminal) × 4

Control interface (RS-232) × 1

Debugging interface (RS-232) × 1

Camera tracking interface (RS-485) × 1

Terminal interface (RJ45) × 4

Network interface (RJ45) × 2

Recording interface (USB) × 1

Video input interface (RCA) × 8    Video output interface (RCA) × 4

Balanced audio input interface (XLR) × 1

Balanced audio output interface (XLR) × 1

Unbalanced audio output interface (RCA) × 2

Packet audio output interface (Phoenix terminal) × 4 Control interface (RS-232) × 1

Debugging interface (RS-232) × 1

Camera tracking interface (RS-485) × 1 Terminal interface (RJ45) × 4

Network interface (RJ45) × 2  Recording interface (USB) × 1

AES67 network audio interface (RJ45) × 1

Audio Frequency Response

20Hz~20KHz

SNR

>96dBA

Channel Isolation

>85dB

Dynamic Range

>94dB

Total Harmonic Distortion

<0.05%

Output Impedance

>1KΩ

Maximum Audio Output

LINE OUT (unbalanced): +20 dBu

BLANCE OUT (balanced): +20 dBu

MIXER OUT (balanced): +20 dBu

AUDIO OUT 1 to 4 (balanced): +20 dBu

Maximum Power Consumption

300W

Power Supply

AC100~240V,50/60Hz

Dimensions (L×W×H)

483mm×430mm×90mm

Weight

8.9Kg


GONSIN Paperless Management Platform Software V1.0



Function


  • LAN Version: This version uses localized deployment. The platform can be accessed via a local area network or dedicated network. Terminal devices, upper-level software, apps, and third-party applications can use the corresponding services within the local area network.

  • Internet Version: This version provides either localized deployment (requiring a public independent IP address) or cloud deployment. The platform can be accessed via a local area network, dedicated network, or the internet. Terminal devices, upper-level software, apps, and third-party applications can use the corresponding services both on the local area network and the internet. The Internet version supports integration with DingTalk, WeChat, OA, SMS, email, and more third-party services (integration services are charged separately).

  • SaaS Service Version: This version offers cloud-based SaaS services, allowing users to use platform services without  the need to purchase or install local servers, significantly reducing costs and installation/maintenance expenses. SaaS services feature rapid deployment, security and reliability, and elastic scalability, with service configurations customizable based on project requirements. Supports monthly, quarterly, and annual billing options.

  • The platform adopts a B/S architecture, leveraging IoT characteristics combined with smart terminals and software services to achieve networked, intelligent, and electronic management of meetings, providing comprehensive

  • management before, during, and after meetings. It offers flexible platform services for various application scenarios and supports custom function development (charged customization).

  • It provides paperless meeting services. Coupled with paperless terminal devices or paperless apps and Wechat mini-programs, it enables paperless meeting functions, including but not limited to: meeting registration, voting, evaluations,    rapid voting, document browsing, annotations, messaging, meeting services, streaming media viewing, paperless screen sharing, electronic whiteboards, on-site control, video conferencing, note-taking, simultaneous interpretation, voice transcription, and voice control (some functions require device support).

  • It supports creating, editing, and deleting organizational structures. It allows for classification management of organizations, setting different functional labels and permissions. Personnel management within the organization is supported, allowing for adding and deleting personnel. One-click enable or disable operations for the organization are also supported.

  • It supports adding, modifying, and deleting personnel information, including but not limited to: name, English name, group affiliation, gender, account, phone number, photo, card number, ID number, fingerprint, etc. Personnel management supports quick generation, rapid import, and export operations. The platform imposes no limit on the number of personnel. It supports integration with OA, DingTalk, WeCom, and other third-party platforms for rapid    synchronization of personnel information (integration services are charged separately).

  • It allows for unified management of paperless devices, terminals, servers, gateways, and peripherals within the platform. Supports one-click enable or disable operations for devices. There is no limit on the number of devices on the platform.

  • When organizing meetings, relevant meeting information can be filled out. It supports cloning historical meeting information to new meetings for quick information entry. Cloning of historical meeting participants to new meetings is also supported. Participant roles and permissions can be set.

  • When organizing meetings, approval processes for meeting content and documents can be established. Approval can be designated to specific personnel or involve multiple approvers. For multiple approvals, several approvers can be added,   and options for sequential approval, counter-signature (requiring agreement from all approvers), or signature (requiring    agreement from one approver) can be selected.

  • It supports editing and management settings for seating arrangements. During meeting organization, it allows for manual or automatic seating arrangements, associating personnel with seats for easy identification and human machine matching.

  • It supports settings for registration methods, result display methods, registration time settings, and statistical method settings. Depending on the device type, various registration methods are supported, including but not limited to: button registration, card registration, facial recognition registration, QR code registration, remote registration, Bluetooth registration, app registration, mini-program registration, online registration, handwritten registration, fingerprint registration, vein recognition registration, voiceprint registration, password registration, ID card registration, multi-facial recognition registration via camera, etc. (these registration methods require additional device support). When multiple   registration system devices are used together, options for summarizing registration data or designating a specific system as the primary data statistic can be selected.

  • It supports unified management and settings for meeting topics. Total topics and subtopics are supported. Each topic can include multiple voting items without a quantity limit. Meeting topics can be displayed on platform devices, with    process control for topics supported.

  • It allows for adding, deleting, and modifying meeting files and topic files. It supports uploading files and folders with no  restrictions on size or quantity. File encryption settings upon upload are supported. Permission settings for files/folders can be configured, controlling viewing, downloading, sharing, etc. The file list can be sorted based on the order of viewing, and files can be moved up or down for easy reference during meetings. Annotations, approvals, scoring, etc., on files can be done during the meeting.

  • Meeting files and topic files support uploading various file formats, including but not limited to: doc, docx, xls, xlsx, ppt,   pptx, vsd, vsdx, txt, pdf, xps, xml, htm, html,jpg, jpeg, png, gif, bmp, psd, cdr, SVG, tiff, mp3, mp4, 3gp, avi, mov, flv, rm,   rmvb, mkv, mpk, mpv, wav, mpg, wma, wmv, mpeg, f4v, flac, midi, aac, ra, 3dm, 3ds, dwf, dwg, dxf, pwd, stp, rar, zip, 7z, iso, ps, ai, asc, asm, exe, apk, pps, ofd, ceb, sep, gd, gw, etc. Additional file format extensions and custom compatibility  can be provided (charged customization).

  • Provide Voting Functionality for Meetings. Support management of voting items for agenda topics, enabling voting functionality for meetings. Support multiple voting methods, including but not limited to: voting, evaluation, election, scoring, multiple-choice voting, custom voting, etc. Support remote voting and unified voting across multiple conference rooms and areas. Allow viewing and exporting voting data.

  • Provide Information Release Settings for Large Screens. Different publishing content can be set according to various meetings. Content includes but is not limited to: welcome messages, seating charts, conference information, agenda information, registration information, environmental information, weather information, conference documents, etc. Supports common file formats such as doc, docx, xls, xlsx, ppt, pptx, txt, pdf, gif, jpg, jpeg, png, bmp, avi, mp4, mov, flv, rm, rmvb, mkv, mpk, mpv, wav, 3gp, mpeg, f4v, etc., and supports additional file format extensions and custom compatibility (customization fees apply). There is no limit on the number of files played. Supports multiple playback modes, including: scheduled playback, loop playback, sequential playback, random playback.

  • Platform Status Monitoring for All Meetings. View all meeting statuses, including: pending submission, pending review, rejected, pending start, in progress, ended, etc. Supports operations such as viewing details, editing meetings, canceling meetings, ending meetings, archiving meetings, post-meeting processing, and post-meeting tasks.

  • Support Post-Meeting Data Processing. View meeting information, participant information, agenda information, registration results, voting results, and related meeting documents. At the end of the meeting, choose to retain or delete files to maintain confidentiality. Supports functions for viewing, exporting, archiving, and deleting files post-meeting. Data can be selected for export or batch export.

  • Post-Meeting Task Initiation Support. Initiate post-meeting tasks and define work tasks. Support reminders for task completion times. Support feedback on task completion. The platform can view a task list to understand the status of completed or pending tasks.

  • Unified Management of Platform Accounts. Supports account password settings, role settings, permission group settings, personnel binding, deletion, freezing, and other operations. Supports batch import of accounts. Automatic

  • account creation is supported. There is no limit on the number of platform accounts. Support for quick synchronization of account information through third-party platforms (integration services incur additional fees). Supports account permission settings and management, including but not limited to: viewing permissions, application permissions, control permissions, approval permissions, modification permissions, device permissions, etc. Supports the creation of multiple  permission groups. Permission groups can add accounts or participants, thus acquiring relevant permissions. Supports   personalized settings for the platform, including but not limited to: platform name settings, icon settings, LOGO settings, column settings, etc.

  • Provide Extended APP Functionality Services. APP functionalities include but are not limited to: meeting organization, meeting viewing, document browsing, meeting registration, agenda control, meeting voting, device control, meeting services, screen sharing, video conferencing, etc. (some functions require device support). Supports offline viewing of meeting materials. Supports querying meeting data and exporting data.

  • Provide Extended Central Control Services (Device Support Required). Realize status monitoring and centralized control management of platform devices via paperless devices, mobile terminals, APPs, or mini programs. Supports control of    various devices, including but not limited to: power control, lighting control, environmental control, microphone control,   audio control, video control, splicing screen control, camera control, recording control, etc. There is no limit on the number of controlled devices. The central control interface uses zero-code editing, allowing for free editing of control methods, control effects, control protocols, and control content. The platform supports real-time data monitoring and logical responses, enabling complex central control linkage functions.

  • Support remote control. Support permission management for controls. Integration with third-party central controlplatforms (integration services require additional fees).

  • Provide extended streaming media services (device support required). Support on-demand streaming, switching, and recording through paperless devices, terminal devices, host software, web pages, APPs, or mini programs. Support integration with recording systems, visual media interaction systems, distributed systems, IP matrices, IP cameras, encoders, and other system devices (integration services require additional fees).

  • Provide extended electronic nameplate services (device support required). Manage base stations and nameplate devices on the platform. Electronic nameplates can automatically update content based on meeting arrangements, displaying corresponding information for different meetings to update personnel information, seating information, and conference information. Support for customizable display templates and application of single or multiple electronic nameplate templates.

  • Provide meeting discussion management services (device support required). Control and manage discussion devices.     Manage the conference system through platform devices, APPs, or mini programs, including but not limited to: speaking modes, number of speakers, speaking status, volume adjustment, equalization adjustment, mode settings, etc.

  • Provide extended speech recognition functionality services (device support required). Support integration with ASR   intelligent speech recognition systems. Support for voice role separation, speech transcription, subtitle display, voice translation, etc. Automatically generate meeting minutes post-meeting. Support for editing minutes templates and content. Include semantic AI correction features to verify semantic relevance based on the context of the content, optimizing recognition results. Support exporting audio recordings, speaking records, meeting minutes, and other data files. Support for file extraction, sharing, and archiving. Automatically send meeting minutes to participants' emails, DingTalk, WeChat, OA, and other locations after the meeting (optional).

  • Provide voice control functionality services (device support required). Support integration with smart voice control systems. Control devices and execute tasks through voice commands. Functions include but are not limited to: power control, lighting control, environmental control, microphone control, audio control, video control, splicing screen control, camera control, recording control, registration control, voting control, agenda control, and screen sharing control. Support quick calls for multiple scenarios. Provide offline, online, and hybrid control methods. Support customization of wake words and command words to meet personalized needs. Offline control supports 150 customizable command words (expandable). Support management of voice control permissions. Support one-click activation/deactivation of voice control functionality.

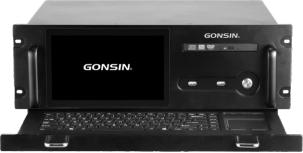

Intelligent Conference Management Platform Server GX-RS102



Function

  • Built-in Paperless Conference System V1.0, Electronic Table Card Management Software V1.0.0, Call Service Management Software V1.0, Conference Screen Management Software V1.0.0, and other software to achieve paperless conference management

  • Provides real-time data storage for the paperless system and media service support for paperless operations

  • Supports multiple conference rooms sharing a single server and multiple projects sharing a single server

  • Supports simultaneous access for 80 wireless paperless terminals, unlimited number of wired paperless terminals

  • All-metal design with an aluminum alloy panel and SGCC galvanized steel chassis, sturdy and durable, environmentally friendly paint, and fingerprint-resistant

  • The panel features a 10-point capacitive touch 8.9-inch A+ grade LCD display, integrated pull-out keyboard, and touchpad

  • Equipped with a dedicated graphics card, supporting up to 3-screen output with a resolution of up to 7680 x 4320, a core frequency of 1620 MHz, 4GB GDDR6 video memory, and a 128-bit bus width

  • Supports on-demand conference files with a maximum of 4K@60 and a 25M bitrate

  • Supports watchdog programming and hardware reset functionality (1-255 seconds)

  • Features an international standard secure password processor to enhance device security, enabling device encryption, advanced BitLocker encryption, and other security features to strictly protect computer data

  • Provides various interfaces, including 1000M LAN × 2, COM × 6, USB × 9, GPIO (built-in) × 8, HDMI × 1, DVI × 1, VGA × 1, MIC_IN × 1, LINE_OUT × 1, LINE_IN × 1, RS-232 × 6, PS/2 × 1, PCIEx16 slot × 1, PCIEx4 slot × 1, PCIEx1 slot × 1, PCI slot ×   4, Mini-PCIE slot × 1, Msata slot × 1, SATA 3.0 × 3

  • With stable and reliable performance, it meets contact-type 4KV strong magnetic interference and air gap 6KV electromagnetic interference and static electricity resistance, complying with GB/T2423.10 earthquake resistance standards

  • Utilizes AC100~240V wide voltage input with a built-in over-voltage protection linear voltage regulator circuit, ensuring normal operation during voltage fluctuations, enhancing device stability and lifespan

  • Configured with an industrial-grade motherboard and components, supporting 7×24 hour operation

  • The product complies with energy-saving product standards and technical requirements


Technical Parameters

System Capacity

Supports simultaneous access for 80 wireless paperless terminals, unlimited number of wired paperless terminals

Operating System

Ubuntu

CPU

Intel Core i5 processor, 6M cache, quad-core, 4 threads, base frequency 3.0GHz, turbo frequency up to 3.50GHz, supports i7 processors

Memory

Standard 8G DDR4, maximum support capacity 32GB

Hard Drive

1×MSATA, 3×SATA 3.0, standard configuration with 1×128GB SSD and 1×1TB HDD

Display Interface

Integrated: 1×HDMI, 1×DVI, 1×VGA, 1×EDP; Dedicated: 1×HDMI, 1×DVI, 1×DP; supports triple screen display

Network Interface

2×10/100/1000M adaptive network ports, supports remote wake-up

USB Interface

4×USB 3.0, 5×USB 2.0 (including 1 internal pin)

Audio Interface

1×MIC_IN, 1×LINE_IN, 1×LINE_OUT

Control Interface

6×RS-232, 1×PS/2, 8×GPIO, 1×TRS63.5 remote switch

Expansion Interface

1×PCIex16, 1×PCIex4, 1×PCIex1, 4×PCI, 1×Mini-PCIe, 1×SIM, 1×LPT

Electrostatic Protection

Contact: 4KV, air gap: 6KV electromagnetic interference

Shock Resistance

GB/T2423.10

MTBF

≥1000000 hours

Installation Method

4U standard rack mount

Keyboard

Built-in pull-out integrated keyboard and mouse

Monitor

Built-in 8.9-inch LCD, 1024×600 DPI, 250 cd/m²

Touchscreen

10-point industrial capacitive touchscreen

Optical Drive

Slim DVD drive

Power Supply

AC100240V, 5060Hz

Power Consumption

<500W

Material

Aluminum alloy panel, SGCC galvanized steel plate, environmentally friendly paint, fingerprint resistant

Color

Industrial black

Dimensions (L×W×H)

482×305×195mm (excluding panel handle)

Weight

15kg

Operating Temperature

0℃~60℃

Storage Temperature

-25℃~75℃

Operating Humidity

10%~90% relative humidity, non-condensing

Storage Humidity

5% ~ 95% relative humidity, non-condensing



Network Base Station GX-AP102-Y




Function

  • Connected through the network base station, support through the host computer software, intelligent conference management platform connected to the network base station for editing and management, 57 seconds to complete the batch update

  • Normal communication radius between table card and network base station is ≤15 meters to meet various occasions.

  • External small suction cup antenna design, comes with 2 meters of connecting cable, the server can be hidden

  • High-performance processing capabilities, using 32-bit 4-core Cortex-A17 processor, the highest main frequency 1.8G, equipped with Android 7.1 system.

  • With dual-screen heterodyne function, support HDMI 4K@60fps, EDP 4K×2K@30fps, LVDS 1920×1080@30fps.

  • With a wealth of external interfaces, 6 USB interfaces, 1 TP interface, 1 SPI interface, 1 I2C interface, 2 groups of TTL serial port is perfectly compatible with the customer's expansion needs.

  • Equipped with multiple function keys and status lights, reset button, power button and multi-function keys (customizable) to control the device, 3 status lights can monitor the current status of the base station.

  • Support 4G communication function.

  • Support battery backup to maintain emergency response in case of sudden power failure.

Technical Parameters

CPU

Quad-core Cortex-A17 up to 1.8GHz

GPU

Mali-T764, supports OpenVG1.1, OpenGL ES1.1/2.0/3.0, OpenCL1.1,  RenderScript and DirectX11.OpenCL1.1, RenderScript and DirectX11.

Operating System

Android 7.1

RAM

DDR3×4, 2GB

ROM

EMMC 8/16GB, supports TF card expansion.

WIFI

802.11b/g/n

BT

Bluetooth V4.0

Display

1×Dual/Single LVDS 1920×1080@30fps/1280×800@30fps

TP

Support USB interface TP

USB

2×USB TYPE A (one of them supports OTG2.0)

Serial Port

1×RS485 interface

Other Expansion Interfaces

2×Magnetic lock interface + door detection

HDMI

1×HDMI1.4/2.0 4K×2K@60fps

Ethernet

4×10/100M RJ45 + 4×DC12V can be connected to 4-way IPC

Power Input

Standard 12V , 5A

Product Size

135.6×135×55mm

Operating Temperature

-20 ~ +70 ℃

Storage Temperature

-20 ~ +85 ℃

Operating Humidity

15% ~ 60%RH

Storage Humidity

15% ~ 60%RH

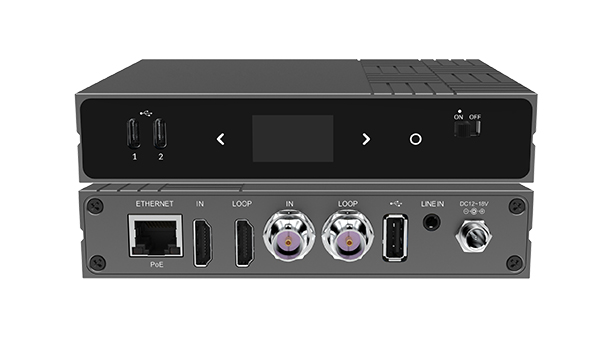

Encoder  GX-SMI303C-C


Function

  • Built-in multimedia conference management software allows signal inputs from computers, video conferences, cameras, etc., to be displayed in a paperless system

  • Features excellent video encoding quality, adaptable to ultra-low bit rates, delivering high-quality images and smooth, non-dropping video effects

  • Stable, reliable, high definition, low bit rate, and low latency

  • Designed with a lightweight aluminum alloy chassis

  • The front panel includes a 1.14-inch color LCD display and capacitive touch buttons, enabling quick viewing of device operation status and video signal status, as well as network address and parameter configuration

  • With 1-way HDMI input interface and 1-way HDMI loop-out interface; supports HDMI 1.4b version, with a maximum support for 3840×2160@30Hz ultra HD video input With 1-way 3G-SDI input interface and 1-way 3G SDI loop-out interface; supports a maximum of 1920×1080P60 SDI video signal input

  • With 1-way 3.5mm analog audio interface, supporting simultaneous encoding of 4 different audio formats

  • With 1-way LAN network interface, supporting PoE power supply, compatible with 10M/100M/1000M network cards

  • With 3-way USB 2.0 interfaces for easy connection of USB devices. Supports USB expansion storage; supports conversion to RS-232/RS-485/RS-422 for PTZ control functionality

  • Supports acquisition and encoding of ultra-high-definition video up to 3840×2160@30Hz, with automatic resolution detection and support for H.264 and H.265 encoding

  • Supports mainstream protocols including NDI HX2, NDI HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP

  • When video encoding is less than or equal to 1920×1080, it supports dual video encoding and simultaneous output of IP video streams, as well as dual video encoding with a choice or picture-in-picture output

  • One stream supports simultaneous pushing of 8 services; when encoding and pushing HDMI and SDI separately, can push to a maximum of 16 different live cloud platforms

  • Features high-quality video format conversion, allowing interlaced video formats like 480i/576i/1080i to be converted to high-quality, smooth progressive video for output

  • Supports multiple audio encoding formats including AAC/MPEG-4/MPEG-3/MPEG-2/Opus/G.711, with simultaneous encoding of up to 4 different audio formats

  • Supports professional processing such as video rotation/cropping (e.g., horizontal to vertical), horizontal mirroring, and color adjustment prior to encoding

  • Allows custom LOGO/text overlay, which can be placed anywhere on the screen

  • Supports various NAS protocols including NFS/CIFS/SMB/FTP for network storage video recording

  • Features stable product performance, supporting a 7×24h operating mode

  • Includes Tally status indication functionality, supporting NDI Tally control capabilities


Technical Parameters

Video Input

1×HDMI, 1×HDMI 1.4b, 1×3G-SDI (SMPTE 424M), compatible with HD-SDI (SMPTE 292M) and SD-SDI (SMPTE 259M)

Video Output

1×HDMI (loop out), 1×3G-SDI (loop out)

Supported Resolutions

HDMI: 3840×2160@30Hz, 1080P/1080i/720P/480P/576P/480i/576i (up to 60fps);

SDI: 1080P/1080i/720P/480P/576P/480i/576i (up to 60fps)

Audio Input

8-channel SDI embedded audio, 4-channel HDMI embedded audio, 1×3.5mm LINE IN audio

USB Interfaces

2×USB 2.0 Type-C, 1×USB 2.0 Type-A

Network Interface

1×10M/100M/1000M RJ45 port, supports PoE (IEEE 802.3af Class 3)

Encoding Resolution

Maximum support for 3840×2160@30Hz

Video Encoding

H.264 (AVC): Baseline/Main/High profile, Level 5.1; H.265 (HEVC): Main profile, Level 5.0

Audio Encoding

AAC/MPEG-4/MPEG-3/MPEG-2/Opus/G.711

Media Protocol Support

Support mainstream protocols such as NDI|HX2, NDI|HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, RTSP

Latency

Input port to terminal latency ≤ 200ms (varies by terminal)

Management Method

Web operation

MTBF

MTBF ≥1,000,000 hours

Power Supply

DC 12V 1A

Power Consumption

≤6W

Dimensions

140×100×28mm

Operating Temperature

-20℃ to 55℃

Storage Temperature

-40℃ to 60℃

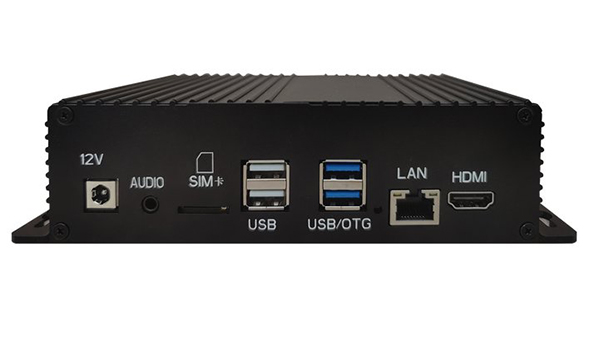

Conference Large-screen Display Terminal GX-RT101C


Function

  • Compatible with large screens or display devices such as LED screens, LCD TVs, and projectors.

  • Ultra-thin mini aluminum alloy shell design with mounting holes for easy installation

  • Features a unique serial number, allowing the conference system to automatically or manually assign IDs to system devices

  • Utilizes an 8nm ARM 8-core 64-bit low-power processor, with a maximum frequency of 2.4GHz

  • Integrates an efficient RKNN AI processing unit, with 6TOPS AI computing power and a tri-core architecture

  • Equipped with one HDMI video signal output interface, supporting a maximum resolution of 8K@60Hz

  • Includes one HDMI video signal input interface, supporting a maximum resolution of 1080P60 (optional)

  • Features one 3.5mm audio interface, supporting microphone input and headphone output

  • Includes one RJ45 port, supporting adaptive 10/100/1000Mbps

  • Features one USB switch interface, supporting control of the lifter panel switch and terminal power status display

  • Equipped with an onboard WiFi 6 module, supporting dual-band WiFi (2.4G/5G)

  • Supports 4G/5G networks (optional)

  • Includes two RS485 ports, two RS232 ports, and four GPIO interfaces

  • Supports DC power supply with over-voltage protection through a linear voltage regulator circuit for safety and reliability. Built-in power management embedded software monitors device voltage status for operational management

  • Average Mean Time Between Failures (MTBF) is greater than or equal to 1,000,000 hours

  • Product complies with energy-saving product standards and technical requirements

  • Supports participants synchronizing file content to the large screen in the meeting room and dynamic display of meeting check-in results on the large screen

  • Supports display of voting/evaluation processes and results on the large screen in the meeting room

  • Supports displaying meeting slogans and agenda slogans on the large screen in the meeting room

  • Features screen sharing capability, allowing all terminals to display the same interface on the large screen in the meeting room

  • Supports a maximum of 4K video file streaming to the large screen in the meeting room

  • The status of the paperless large screen display terminal can be shown in the control software for easy daily management


Technical Parameters

Operating System

Android 11 and above, support optional Ubuntu 20.04, Galaxy Kirin V10 SP1, Star Kirin 1.0

CPU

8-core 64-bit processor, up to 2.4GHz, 4×Cortex-A76 + 4×Cortex-A55

GPU

Mali-G610 GPU MC4 quad-core GPU, support OpenGL ES3.2, OpenVG1.1, OpenCL2.0, 1176 GFLOPs

NPU

Built-in neural network processor NPU, strong AI computing performance,

support IN4/IN8/INT16/FP16 operations, computing performance up to 6.0TOPS

Memory

LPDDR4 4GB (8G optional)

Built-in Storage Capacity

eMMC 32GB (64G/128G optional), support SATA HDD expansion

Display Interfaces

1×HDMI_OUT (8K@60Hz), built-in 1×eDP, 1×LVDS, 1×MiPi LCD interface, support multi-screen heterodyne function

Network Interface

1×10/100/1000M adaptive network port, 1×2.4G/5G dual-band WiFi, with Wi-Fi 802.11b/g/n/ac/ax protocols,

support Bluetooth 4.0, optional 4G or 5G mobile communication

USB Interfaces

2×USB3.0, 2×USB2.0, built-in 4×USB2.0

Audio Interfaces

1 × headset interface, built-in 1 × MIC_IN, 1 × SPK_OUT (2 * 5W)

Control Interfaces

2×RS-232, 2×RS-485, 4×GPIO

Power Supply

Adapter power supply, input AC100~240V, 50~60Hz, output DC12V2A

Maximum Power Consumption

24W

Dimensions

190×106×45mm

Material

Aluminum

Color

Black

Installation Method

Desktop



Power Hub  HUB-P150S


Function

  • Developed based on LINUX operating system platform, full digital audio technology, built-in high-performance CPU processing core, high-speed DSP digital audio processor, CD-level sound quality

  • With the conference server, it is used to expand the connection to the conference terminal, and can amplify the communication signal to meet the power supply requirements and data communication requirements of large conference systems

  • The system adopts distributed power supply management, and a single power HUB can mount up to 45 conference terminals (the number of loaded devices will increase or decrease according to the terminal model, usage conditions, line length and other factors), by connecting multiple power HUBs , conference server, which can form a large-scale system    with a maximum capacity of 65025 seats, and the power HUB can be centrally controlled and managed through the conference server

  • Conference terminal, power HUB, conference server and other equipment are all connected by network cable, which is easy for wiring and convenient for construction management

  • Support ring hand in hand, star, hybrid three connection methods, the failure of one extension will not affect the work of  other extensions in the system, and the failure of a connection between extensions will not affect the system, ensuring the system stable and reliable

  • Automatic restoration function: supports hot plug.

  • The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.

  • 5 terminal connection ports and 2 extended connection ports for HUB

  • It has the function of switching on and off synchronously with the conference server

  • Built-in conference terminal automatic detection mechanism, which can self-check the running status of each terminal of the system before the conference

  • LED lights with working status indication, automatic detection of voltage, current and temperature status, support for overload and high temperature automatic protection, and automatic upload of working status through the network

  • Connect with computer and use with system control software, with more functions

  • Real-time monitoring of system operation status, timely notification of system equipment failures, escorting important meetings


Technical Parameters

Standard Capacity

45 of conference terminals

(the number of terminals depends on the terminal model, usage conditions, cable length and other factors)

Status Indication

LED indicator

Power

AC 100~240V,50/60Hz

Max Power Consumption

150W

Terminal Connection Port

RJ45×7

Operating Temperature

Hidden installation or cabinet installation, support 2 HUBs side-by-side cabinet

Storage Temperature

238mm×165mm×45mm

Dimensions(L×W×H)

2kg

Installation

0~45°C

Weight

-20~50°C




Power Hub Cabinet Installation Accessories GX-HUB02



Dimensions (L x W x D)

483x40x4mm


Power Adapter GM95-240400-F


Color

Black

Voltage Input

AC100V~240V, 50~60Hz

Voltage Output

DC12V , 3A



System Configuration Products of Paperless Conference System DCS-2071D




Contact Us

Gonsin is here to offer you the customized solutions for conference audio and video system.

Please fill in the information truthfully so that we can contact you and provide services as soon as possible.



Related Products of Paperless Conference System DCS-2071D
Delivering Trust & Value
You can
trust .
Copyright © Gonsin Conference Equipment Co., LTD. All Rights Reserved.
The information and specifications included are subject tochange without prior notice.
