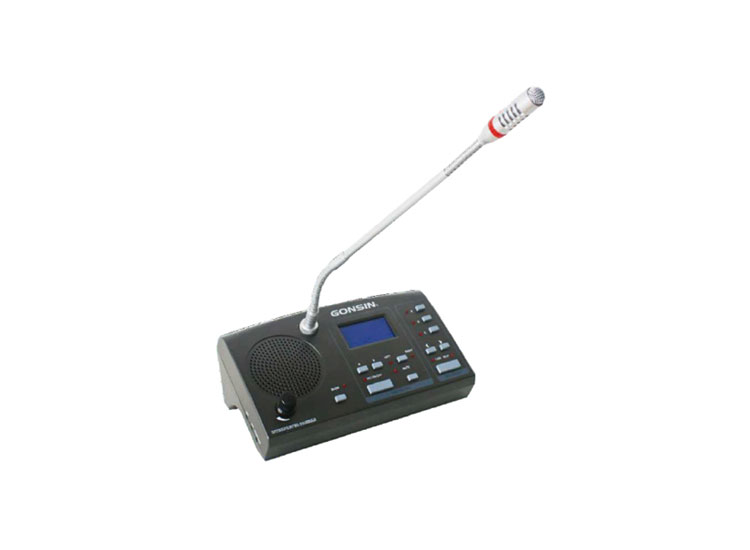

Interpreter Console IC-2016/2032

Interpreter Desk
Interpreter Desk
Get A Quote
Functions
Technical Parameters

Functions of Interpreter Terminal IC-2016/2032

  • In compliance with IEEE 802.11n network standard, adopt WIFI wireless communication technology

  • Physical Mic button utilizes a touch design, with a concise appearance, convenient operation, accurate response, and long service life

  • With full digital audio technology, built-in high-speed CPU, and high-performance DSP digital audio processor


  • The Congress Con terminal, power HUB, and server are all connected by cable. Flexible cabling reduces project workload, and makes large-scale construction easier

  • It supports daisy-chain connection, star connection, and mixed connection. The system is highly stable and reliable. The breakdown of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won't influence the system work

  • Automatic restoration function: supports hot plug

  • Supports 48KHz audio sample freq, acoustic frequency response can be up to 20Hz~20KHz

  • Built-in high-performance DSP digital audio processor helps remove the useless low-frequency and avoid low-frequency acoustical shock, which better improves the sharpness of sound

  • Highly resistant to mobile phone interference

  • congress The serial number is one and only, the system supports automatically or manually assigning an ID to the corresponding equipment.

  • Direct interpretation or indirect interpretation

  • Accommodates up to 16/32 channel interpretation

  • By the software setting, one language could be directly connected to 6 interpreter console units, when the interpreter turns on the microphone, the system automatically turn off the microphone of the last interpreter console

  • A, B input channels presetting. When presetting the input channel, the occupied channel will be automatically skipped. It is quick to switch the A/B input channel which works in both interlocking mode(interlock between interpreter consoles) and free mode

  • SLOW key to remind the speaker to slow down; the active mic ring or LCD will blink

  • MUTE key to temporarily mute unwanted noise

  • Interpretation operating time display: hour: minute

  • Standard electret cardioid pickup pattern microphone with lamp bezel (On or Off), rich timbre. Three kinds of soft gooseneck microphone stem for various conferences (standard: 410mm, optional: 310mm/510mm)

  • Pluggable gooseneck microphone stem, convenient for equipment maintenance

  • Built-in left and right loudspeakers (2W) and adjustable volume(9 levels). Reasonable tune trope design, outputs clear and loud sound. Adjusting volume through screen touch is available. language channel can be chosen

  • Support interpreter booth function and no interpreter terminal quantity limit

  • Left/Right MIC jack for headset boom microphone

  • Left/Right headphone jack for headphone monitoring

  • Left/Right REC OUT jack ( 3.5 mm) for interpreted audio recording

  • Supports dual microphone inputs

  • Microphone is selectable

  • A/B/C incoming channels can be pre-selected

  • A/B outgoing channels can be pre-selected

  • LCD shows channel numbers and operating information

  • Could be freely connected with any terminal

Technical Parameters of Interpreter Terminal  IC-2016/2032

InstallationDesktop
Connection MethodCable
Display ParameterSize:65mm×32mm; Dot matrix:128×64; Backlit with white-on-blue
Acoustic Frequency Response20Hz~20KHz
Sensitivity-46 dBV/Pa
Equivalent Noise Level20dBA(SPL)
Max SPL125dB(THD<3%)
THD<0.05%
SNR≥96dB
MIC TypeCardioid; 0°/180°:>20 dB (1 kHz)
Polar Pattern410mm (standard); 310mm/510mm (optional))
Input Impedance2KΩ
Headphone Jack3.5 mm stereo jack×2
MIC Port3.5 mm stereo jack×2
REC Out Port3.5 mm stereo jack×2
Headphone Load>16Ω
Headphone Volume10mW
Built-in Speaker2W/8Ω
Channel16/32
Dimension (L*W*H)247mm×145mm×95mm (without MIC stem)
Weight1.2Kg(net)
Power24V
Max Power Consumption7W
Operating Temperature0~45°C
Storage Temperature-20~50°C
