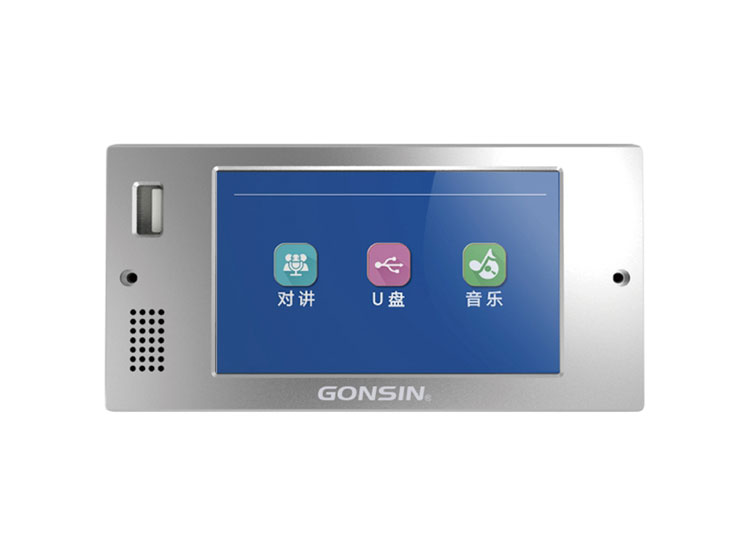

Webcast on-demand Terminal GX-PB8107A-K

Public Announcement System Price
Public Announcement System Price
Get A Quote
Features
Technical Parameters

Features of Webcast on-demand Terminal GX-PB8107A-K

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can reach, to achieve access and control of servers and other network equipment

  • With 5-inch color capacitive touch screen, the interface is clear and easy to operate

  • Through the Android or IOS sub-control software, the on-demand and paging functions can be controlled in real time

  • The built-in audio decoding module supports the conversion of network audio signals into analog stereo signal output, which can play background music, emergency paging, alarm signals, etc. from the server system

  • With USB interface, it supports local playback of MP3 audio in USB

  • Support 8~768Kbps high bit rate format playback, with high fidelity sound effect

  • It has 1 line input to support local audio source playback

  • With 1 short-circuit input, you can customize playback tasks, such as welcome music, etc

  • Built-in 2 * 20 W stereo power amplifier, which can be extended to connect to passive speakers

  • An offline storage module is optional, and it can also realize timing playback and timing ringing even when it is disconnected from the network

  • Optional USB Bluetooth module can be used to push audio to the terminal for playback via mobile phone Bluetooth

  • Support remote server management and remote upgrade, which is convenient for users to maintain

Technical Parameters of Webcast on-demand Terminal GX-PB8107A-K

ModelGX-PB8107A-K
Network interfaceRJ45*1, 100Mbps/10Mbps
Memory interfaceUSB (U disk)*1, maximum support 128G
Other interfacesUSB (extended Bluetooth)*1, short-circuit input*1
Support protocolTCP/IP, UD, IGMP
Audio formatMp3
Audio mode16-bit stereo CD sound quality
Bit rate8k~768Kbps
Frequency response20Hz-20KHz
Harmonic distortionTHD≤0.1%
Signal to noise ratio≥70dB
Output power2×20W
Power consumption<45W
Input powerDC24V
Product size172×50×86mm
Working temperature5℃~40℃
Environmental humidity20%~80% relative humidity
