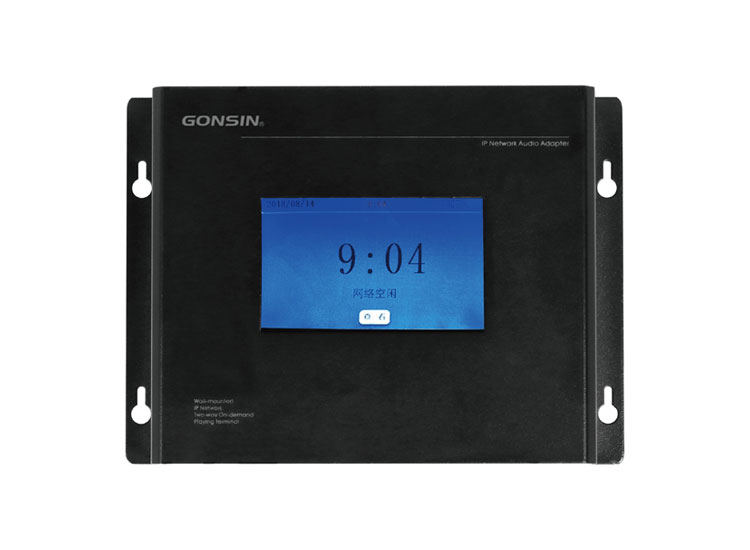

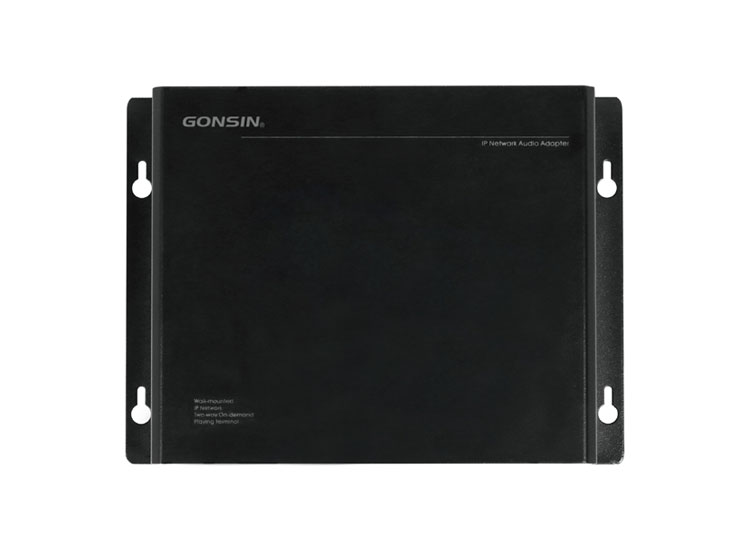

Network Broadcast Wall-mounted Terminal

Pa Announcement System
Public Announcement System
Digital Public Address System
Pa Announcement System
Public Announcement System
Digital Public Address System
Get A Quote
Features
Technical Parameters

Features of Network Broadcast Wall-mounted Terminal GX-PB8106A-K / GX-PB8106B-K / GX-PB8106C-K / GX-PB8106D-K

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can reach, to achieve access and control of servers and other network equipment

  • Through the Android or IOS sub-control software, you can control the on-demand and paging functions in real time

  • The built-in audio decoding module supports the conversion of network audio signals into analog stereo signal output, and realizes the playback of background music, emergency paging, and alarm signals from the server system

  • With a USB interface, it supports local playback of MP3 audio in USB

  • Support 8~768Kbps high bit rate format playback, with high fidelity sound effect

  • It has 1 line input, 1 microphone input, supports local audio source playback, and the microphone volume is independently adjustable

  • It has 1 line output to connect to the power amplifier for amplified sound output

  • With 1 custom short-circuit input and 1 short-circuit output

  • It has a 100V constant voltage input interface, supports constant voltage backup function, and can build a dual backup broadcast system to meet important occasions such as school exams.

  • With custom selection of audio source priority, support for local priority, network priority, and mixed output options

  • Built-in 2 * 20 W stereo power amplifier, which can be extended to connect to passive speakers

  • An offline storage module can be selected, and it can also realize timing playback and timing ringing even when it is out of the network

  • It supports remote server management and remote upgrade, which is convenient for users to maintain

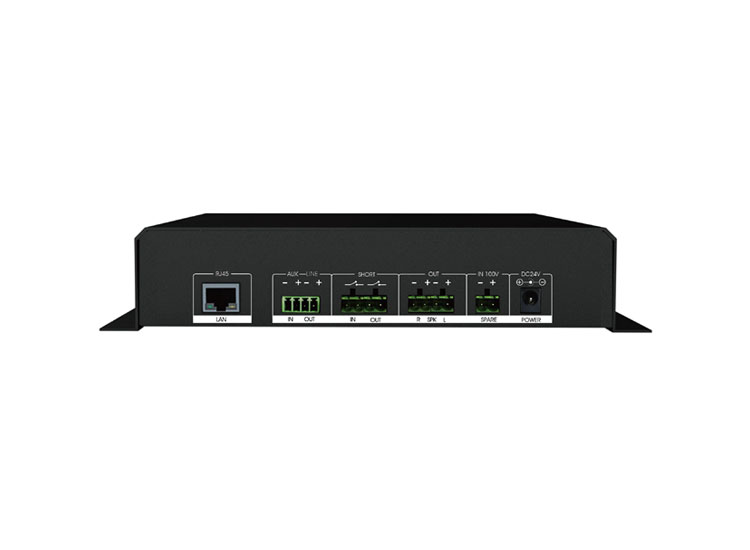

Technical Parameters of Network Broadcast Wall-mounted Terminal GX-PB8106A-K / GX-PB8106B-K / GX-PB8106C-K / GX-PB8106D-K

ModelGX-PB8106A-KGX-PB8106B-KGX-PB8106C-KGX-PB8106D-K
Network interfaceRJ45*1, 100Mbps/10Mbps
Audio interfaceAUX_IN*1, MIC_IN*1, LINE_OUT*1
Constant voltage input interface/100V/100V
Memory interface/USB*1, maximum support 128G
Other interfacesUSB (extended Bluetooth)*1, USB (extended 2.4G wireless microphone)*1, short-circuit input*1, short-circuit output*1, fire-fighting short-circuit output*1, 24V strong cut power output*1
Support protocolTCP/IP, UD, IGMP
Audio formatMP3
Audio mode16-bit stereo CD sound quality
Bit rate8k~768Kbps
A U X sensitivity-12dB
MIC sensitivity-10dB
Short circuit input/output0 V
Frequency response20Hz-20KHz
Harmonic distortionTHD≤0.1%
Signal to noise ratio≥70dB
Output power2×20W
Power consumption<45W
Protection circuitInputoverload, over temperature, short circuit protection
Input powerDC24V
Product size255×188×45 mm
Product weight1.36Kg1.78Kg1.48Kg2.48Kg
Working temperature5℃~40℃
Environmental humidity20%~80% relative humidity
