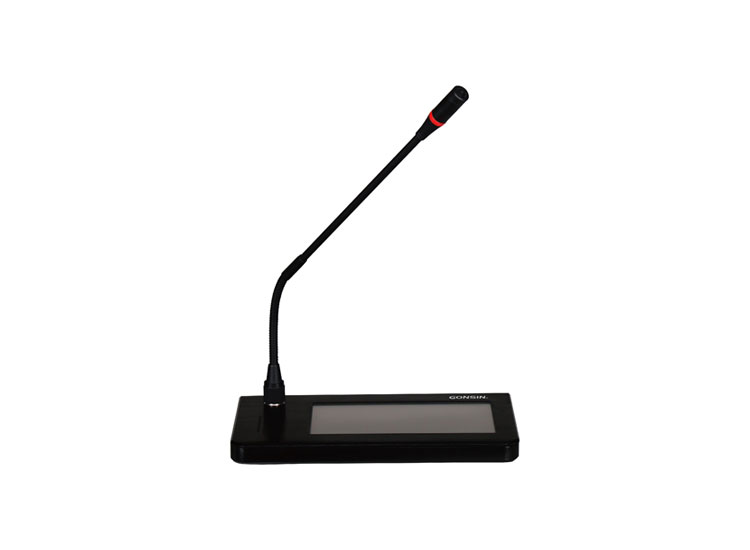

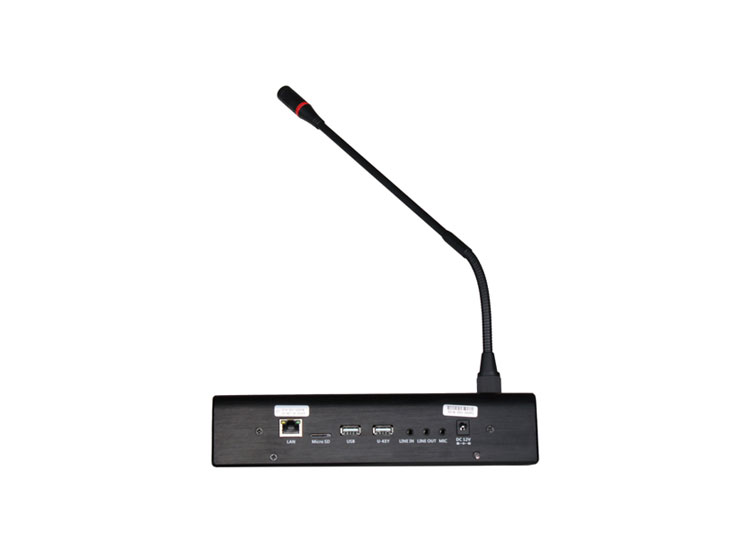

Network Broadcast Remote Paging Station GX-PB8102A-K

Public Announcement System
Digital Public Address System
Public Announcement System
Digital Public Address System
Get A Quote
Features
Technical Parameters

Features of Network Broadcast Remote Paging Station GX-PB8102A-K

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can be reached, to achieve access and control of servers and other network equipment

  • Using 7-inch capacitive touch screen, user-friendly user interface, touch the buttons of the screen, you can realize the broadcast or intercom of the whole area, partition or designated terminal

  • Equipped with gooseneck microphone, built-in 3W full-range speaker to support hands-free communication

  • With 3.5mm microphone interface, professional microphones can be connected

  • With 1 line input, it can be connected to a local audio source, and the local audio source can be collected to a designated terminal or zone for playback

  • With 1 USB, you can play MP3 files on the U disk to the designated terminal or partition

  • Support one local line output, and can expand the power amplifier

  • With audio output interface, with earphones or active speakers, local monitoring of server programs can be realized

  • It supports one-key calling of common areas and all areas, 30 common areas can be set according to requirements

  • Brings the electric ringtone prompt function, which can support one-key receiving help, intercom function, and quick connection

  • APP sub-control software that supports mobile phones or tablets (wireless WIFI, can control on-demand, paging and other functions in real time)

  • With user password and authority management

  • Support remote upgrade pushed by the server

  • Support Simplified Chinese and English language selection

Technical Parameters of Network Broadcast Remote Paging Station GX-PB8102A-K

ModelGX-PB8102A-K
Display7-inch LCD screen
Audio formatMp3
Audio bit rate8Kbps~320Kbps adaptive
Frequency response40Hz~20KHz (±3dB)
Total harmonic distortion(THD@1W): ≤1%
Signal to noise ratio>80dB
Sampling rate8K~48K
Input level400mV (standard 3.5mm audio interface)
Output level0.775V (standard 3.5mm audio interface)
Built-in speaker8Ω/5W
Transmission rate10/100Mbps
Support protocolARP, UDP, TCP/IP, ICMP, IGMP (multicast)
Network delay≤50ms
Power supplyDC12V/2A
Rated power<3W
Maximum power consumption20W
Working temperature0℃~50℃
Product size250×150×56mm
Product weight1.16Kg
