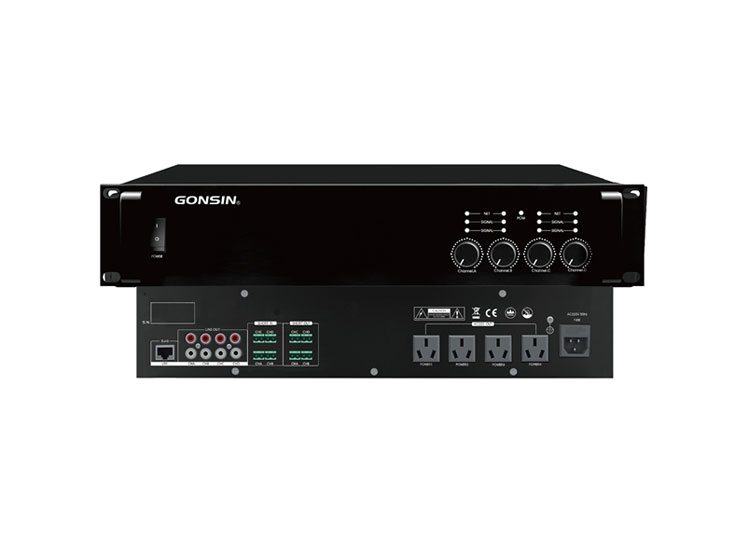

Network Broadcast Audio Decoding Terminal GX-PB8105C-K

Public Announcement System Price
Public Announcement System Price
Get A Quote
Features
Technical Parameters

Features of Network Broadcast Audio Decoding Terminal GX-PB8105C-K

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can reach, to achieve access and control of servers and other network equipment

  • Through the Android or IOS sub-control software, you can control the on-demand and paging functions in real time

  • Built-in 4 independent audio decoding modules, supporting simultaneous conversion of 4 network audio signals into analog stereo signal output, each channel of audio does not interfere with each other, realizing the playback of background music, emergency paging, alarm signals from the server system, etc

  • The volume of 4 audio channels can be adjusted independently

  • It has 4 line outputs, which are respectively connected to power amplifiers for amplified sound output

  • With 4 custom short-circuit inputs and 4 short-circuit outputs

  • With 4 controllable power ports, each power supply can be turned on and off automatically or manually, and the system can be set to supply power regularly, which is intelligent and environmentally friendly

  • Optional offline storage module, which can also realize timing play and timing ringing even if it is out of the network

Technical Parameters of Network Broadcast Audio Decoding Terminal GX-PB8105C-K

ModelGX-PB8105C-K
Network interfaceRJ45*1, 100Mbps/10Mbps
Audio interfaceLINE_OUT*4
Controllable power output4 channels, total power ≤2000W
Other interfacesshort-circuit input*4, short-circuit output*4
Support protocolTCP/IP, UD, IGMP
Audio formatMp3
Audio mode16-bit stereo CD sound quality
Bit rate8k~768Kbps
Frequency response20Hz~20KHz
Harmonic distortionTHD≤0.1%
Signal to noise ratio≥65dB
Short circuit input/output0V<5A
Power supplyAC220V±10%
Power consumption45W
Standby power consumption<3W
Product size485×340×88mm
Product weight6.28Kg
Working temperature5℃~40℃
Environmental humidity20%~80% relative humidity, no condensation
