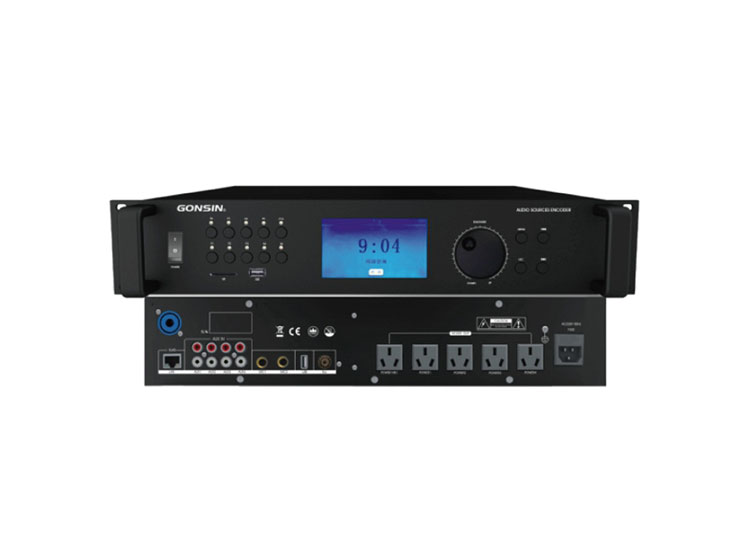

Network Broadcast Audio Collection Terminal GX-PB8104A-K

Digital Public Address System
Digital Public Address System
Get A Quote
Features
Technical Parameters

Features of Network Broadcast Audio Collection Terminal GX-PB8104A-K

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can reach, to achieve server and other network equipment access and control

  • With 4.3-inch color display and one-key shuttle function, the interface is clear and easy to operate

  • Built-in audio collection module, with 8K~48K sampling rate, with high-quality sound collection effect the analog stereo sound source can be converted into a network audio signal

  • With FM radio module, U disk player module, no need to connect DVD, tuner and other audio source equipment, also realize real-time sound collection

  • With 4 audio line inputs and 2 microphone inputs, the volume of each channel is independently controlled

  • With 5 controllable power interfaces, each power supply can be turned on and off automatically or manually

  • The system can be set to supply power regularly, intelligent environmental protection and saving

  • With 10 programmable buttons, button tasks can be set freely

  • With wireless remote control, it supports remote control terminal playback

  • Rack-mounted 2U standard chassis design, aluminum alloy panel, beautiful and practical

Technical Parameters of Network Broadcast Audio Collection Terminal GX-PB8104A-K

ModelGX-PB8104A-K
Display4.3-inch color display
Network interfaceRJ45*1, 100Mbps/10Mbps
Audio interfaceAUX_IN*4, MIC_IN*2
Memory interfaceUSB (U disk)*1, SD (U disk)*1
Controllable power output5 channels
Other interfacesUSB (extended Bluetooth)*1, FM antenna*1, remote control antenna*1
Support protocolTCP/IP, UDP, IGMP (multicast)
Frequency response20Hz~20KHz
Harmonic distortionTHD≤0.1%
Sampling rate8K~48K
UX sensitivity0dB
Power supplyAC220V±10% 50Hz
Power consumption20W
Standby power consumption<3W
Product size485×340×88mm
Product weight5.1Kg
Working temperature5℃~40℃
Environmental humidity20%~80% relative humidity
