IP Server GX-PB8101A-K

Public Announcement System Price
Ip Network Equipment
Public Announcement System Price
Ip Network Equipment
Get A Quote
Features
Technical Parameters

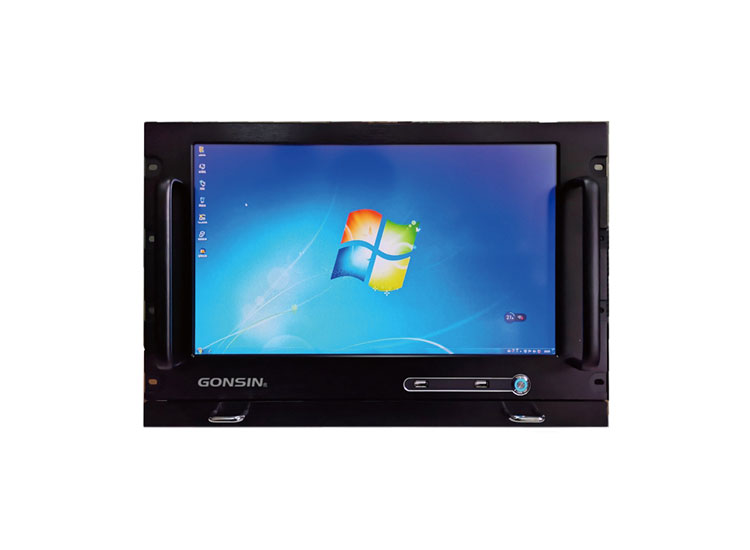

Features of IP Server GX-PB8101A-K

  • Industrial-grade server, built-in SSD solid state drive, has super fast system startup speed, and the system is stable and reliable

  • Rack-mounted chassis body design, using high-strength aluminum alloy panel, high-quality unpolished galvanized steel plate, can resist 4KV strong electromagnetic interference, dust and impact resistance

  • Using a 17-inch industrial-grade FHD high-definition touch screen, the control interface is intuitive and easy to understand, and the touch is sensitive

  • It is equipped with a hidden push-pull keyboard and touchpad, which can be operated without an external keyboard and mouse

  • High performance, low power consumption, 7*24 hours working design, suitable for long-term stable operation under low temperature and high temperature environment.

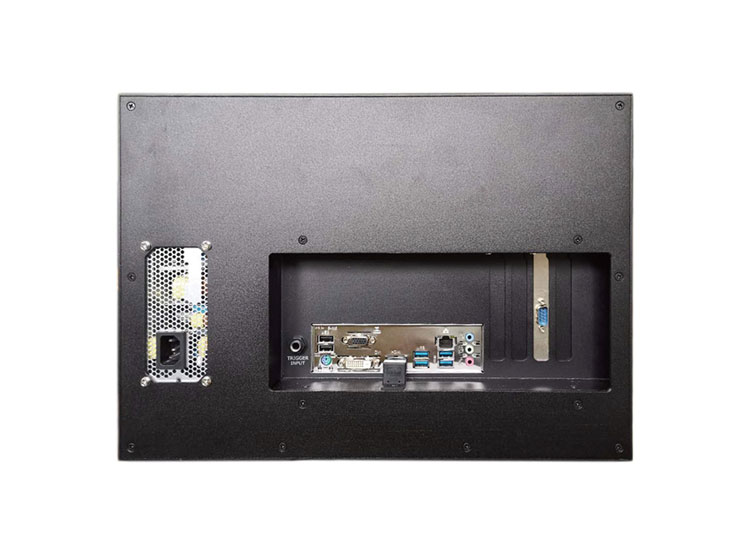

  • With USB, COM, VGA, DVI, PCIE interfaces, it is convenient to expand the input and output

  • With MIC_IN and LINE_IN interfaces, it supports to collect and broadcast external audio sources to the desired terminal for playback at any time

  • Built-in network broadcasting service software to configure, manage, maintain and monitor the status of terminal equipment

Technical Parameters of IP Server GX-PB8101A-K

ModelGX-PB8101A-K
ConfigurationI3 CPU, 4GB memory, 128G SSD hard disk
Display17.3 inches, 1920*1080dpi, 300cd/
Software operating platformWindows 7 trial version
Serial portRS232*5, RS485*1
USB interfaceUSB3.0*4, USB3.0*2
Display interfaceVGA*1, DVI*1
Audio interfaceMIC_IN*1, LINE_IN*1, LINE_OUT*1
Network interfaceLAN*2, support 10/100/1000Mbps
OthersPS/2*1, PCIEx16*1, PCIEx16*1, PCI*2
Input powerAC100-220V 50/60Hz
Product size W*D*H485×303×354mm (without handle)
Product weight18.5Kg
Working temperature-10℃~60℃
Storage temperature-20℃~70℃
Working humidity5%~95% (non-condensing state)
Storage humidity5%~95% (non-condensing state)
