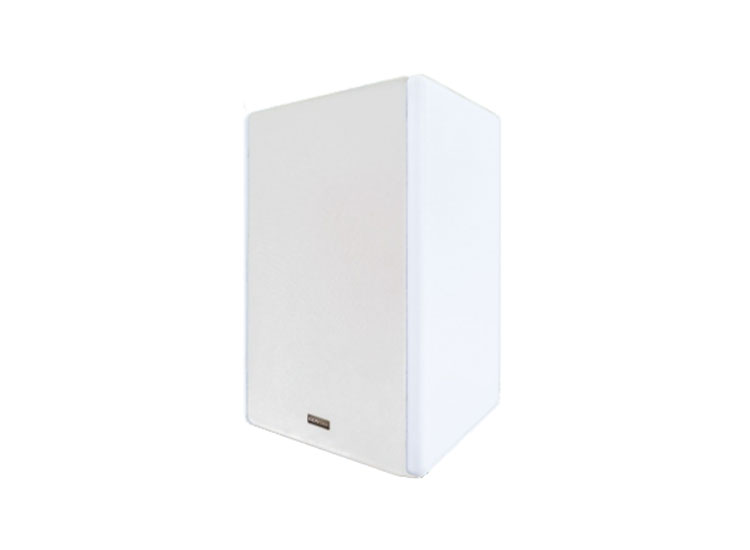

Internet Radio Speakers GX-SP8025B-K / GX-SP8025C-K / GX-SP8025D-K / GX-SP8025E-K

Public Announcement System Price
Public Announcement System Price
Get A Quote
Features
Technical Parameters

Features of Internet Radio Speakers GX-SP8025B-K / GX-SP8025C-K / GX-SP8025D-K / GX-SP8025E-K

  • The cabinet is made of wooden material, which is durable and beautiful

  • Based on TCP/IP, UDP, and IGMP protocols, it supports LAN and WAN transmission, and can be installed anywhere the network can reach, realizing the inquiry and control of servers and other network equipment

  • Through the Android or IOS sub-control software, the on-demand and paging functions can be controlled in real time

  • The built-in audio decoding module supports the conversion of network audio signals into analog stereo signal output, which can play background music, emergency paging, and alarm signals from the server system

  • Support 8~768Kbps high bit rate format playback, with high fidelity sound effect

  • It has 1 line input and supports local audio source playback

  • With 1 custom short-circuit input

  • Built-in 2×20W stereo power amplifier, which can be connected with 1 passive speaker

  • It has a 100V constant voltage input interface, supports constant voltage backup function, and can build a double backup broadcasting system to meet the use of important occasions such as school exams

  • An offline storage module is optional, and it can also realize timing playback and timing ringing even when it is disconnected from the network

  • Optional USB Bluetooth module can be used to push audio to the terminal for playback via mobile phone Bluetooth

  • Support remote server management and remote upgrade, which is convenient for users to maintain

  • The sound is clear and bright, and the wall-mounted installation is simple and convenient

  • Applicable to indoor places such as classrooms, shopping malls, and corridors

Technical Parameters of Internet Radio Speakers GX-SP8025B-K / GX-SP8025C-K / GX-SP8025D-K / GX-SP8025E-K

ModelGX-SP8025B-KGx-SP8025C-KGX-SP8025D-KGx-SP8025E-K
ColorWhite
Unit4.5"coaxial unit*1
Network interfaceRJ45*1, 100Mbps/10Mbps
Audio interfaceAUX_IN*1, SPK_OUT*1
Constant pressure input interface\100v\100v
Other interfacesUSB (extended Bluetooth)*1, short-circuit input*1
Support protocolTCP/IP, UDP, IGMP
Audio formatMP3
Audio mode16-bit stereo CDsound quality
Bit rate8k~768Kbps
AUXsensitivity-12dB
Short circuit inputo v
Frequency response20Hz-20KHz
Harmonic distortionTHD≤0.1%
Signal to noise ratio≥70dB
Output power2x20w
Power consumption<45W
Protection circuitoverload, over temperature, short circuit protection
Input power2.55KgDC24V, POE(IEEE802.3bt)
Product size280*150*190mm
Product weight2.16KG2.55Kg2.18Kg2.58Kg
Working temperature5℃~40℃
Environmental humidity20%~80% relative humidity
