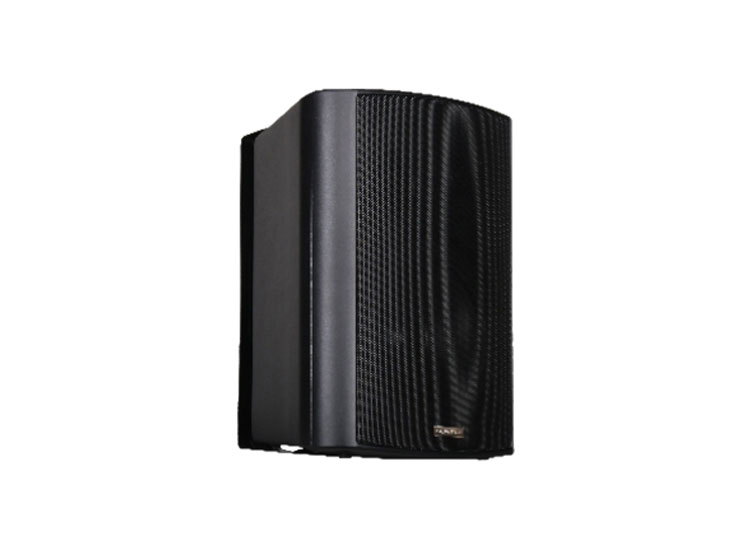

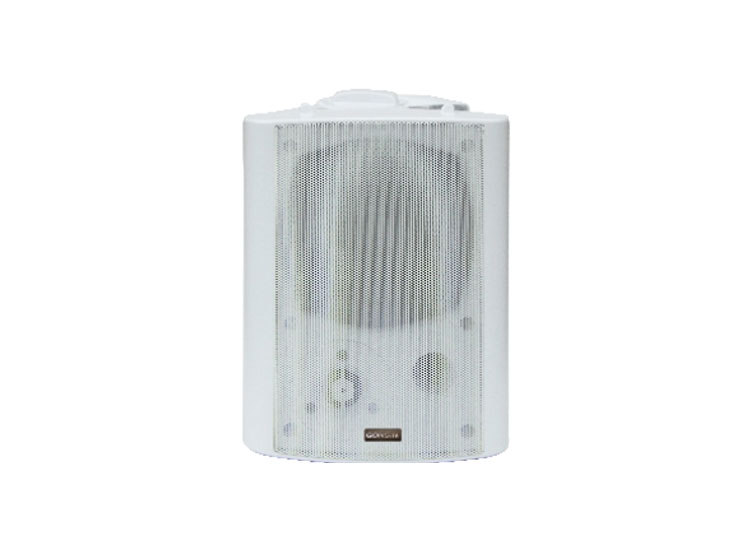

Internet Radio Speakers GX-SP8024C-K / GX-SP8024D-K / GX-SP8024E-K / GX-SP8024F-K

PA Announcement System
PA Announcement System Internet Radio Speakers GX-SP8024C-K / GX-SP8024D-K / GX-SP8024E-K / GX-SP8024F-K
PA Announcement System
PA Announcement System Internet Radio Speakers GX-SP8024C-K / GX-SP8024D-K / GX-SP8024E-K / GX-SP8024F-K
Get A Quote
Features
Technical Parameters

Features of Internet Radio Speakers GX-SP8024C-K / GX-SP8024D-K / GX-SP8024E-K / GX-SP8024F-K

  • The cabinet is made of thick fireproof ABS material, and the pure aluminum surface net is hardened and anti-oxidation treatment, which is durable and beautiful

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can be reached, to achieve access and control of servers and other network equipment

  • Through the Android or IOS sub-control software, the on-demand and paging functions can be controlled in real time

  • The built-in audio decoding module supports the conversion of network audio signals into analog stereo signal output, and realizes the playback of background music, emergency paging, alarm signals, etc. from the server system

  • Support 8~768Kbps high bit rate format playback, with high fidelity sound effect

  • It has 1 line input, 1 microphone input, supports local audio source playback, and the microphone volume is independently adjustable

  • It has 1 line output to connect to the power amplifier for amplified sound output

  • With 1 custom short-circuit input and 1 short-circuit output

  • Built-in 2 * 2 5 W stereo power amplifier, which can be used with 1 passive speaker

  • It has a 100V constant voltage input interface, supports constant voltage backup function, and can build a dual backup broadcast system to meet important occasions such as school exams

  • With custom selection of audio source priority, support for local priority, network priority, and mixing output options

  • An offline storage module can be selected, and it can also realize timing playback and timing ringing even when it is out of the network

  • An optional USB Bluetooth module can be used to push audio to the terminal for playback via mobile phone Bluetooth

  • Optional USB 2.4G wireless microphone module to meet the needs of local microphone amplification output

  • Support environmental monitoring function

  • Support remote server management and remote upgrade, which is convenient for users to maintain

  • The sound is clear and bright, wall-mounted installation, simple and convenient

  • Applicable to indoor places such as classrooms, shopping malls, corridors, etc.

Technical Parameters of Internet Radio Speakers GX-SP8024C-K / GX-SP8024D-K / GX-SP8024E-K / GX-SP8024F-K

ModelGX-SP8024C-KGX-SP8024D-KGX-SP8024E-KGX-SP8024F-K
ColorWhiteBlackWhiteBlack
Unit6"full frequency*1, 1.5"high pitch*1
Network interfaceRJ45*1, 100Mbps/10Mbps
Audio interfaceAUX_IN*1, MIC_IN*1, LINE_OUT*1, SPK_OUT*1
Constant pressure input interface\\100V100V
Other interfacesUSB (extended Bluetooth)*1, USB (extended 2.4G wireless microphone)*1, short-circuit input*1, short-circuit output*1
Support protocolTCP/IP, UDP, IGMP
Audio formatMP3
Audio mode16-bit stereo CD sound quality
Bit rate8k~768Kbps
AUX sensitivity-12dB
MIC sensitivity-10dB
Short circuit input0 V
Frequency response20Hz-20KHz
Harmonic distortionTHD≤0.1%
Signal to noise ratio≥70dB
Output power2×20W
Power consumption<45W
Protection circuitoverload, over temperature, short circuit protection
Input powerDC24V
Product size280*150*190mm
Product weight4.3KG4.3KG4.72KG4.72KG
Working temperature5℃~40℃
Environmental humidity20%~80% relative humidity
