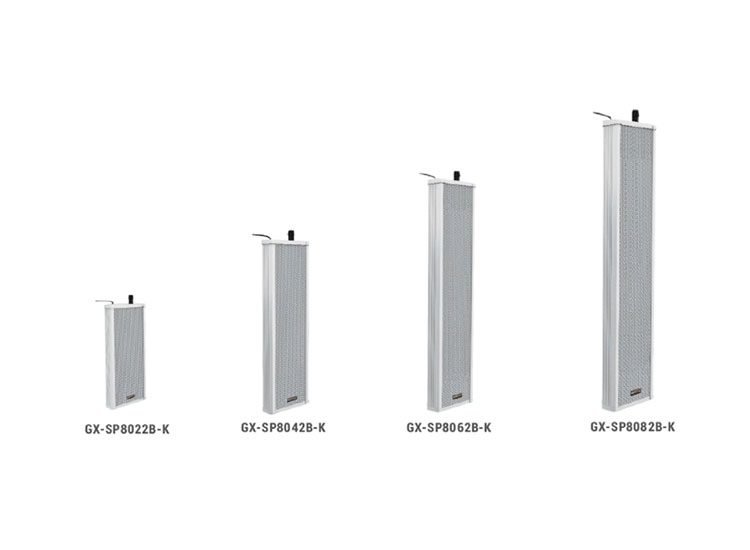

Internet Radio Sound Column GX-SP8022B-K/SP8042B-K/SP8062B-K/SP8082B-K

Digital Public Address System Internet Radio Sound Column GX-SP8022B-K/SP8042B-K/SP8062B-K/SP8082B-K
Digital Public Address System Internet Radio Sound Column GX-SP8022B-K/SP8042B-K/SP8062B-K/SP8082B-K
Get A Quote
Features
Technical Parameters

Features of Internet Radio Sound Column GX-SP8022B-K / GX-SP8042B-K / GX-SP8062B-K / GX-SP8082B-K

  • The cabinet is made of thick aluminum alloy material, and the pure aluminum surface net is hardened and anti-oxidation treatment, which is durable and beautiful

  • Based on TCP/IP, UDP, IGMP protocol, support LAN and WAN transmission, can be installed anywhere the network can reach, to achieve access and control of servers and other network equipment

  • The built-in audio decoding module supports the conversion of network audio signals into analog stereo signal output and realizes the playback of background music, emergency paging, and alarm signals from the server system

  • Support 8~768Kbps high bit rate format playback, with high fidelity sound effect

  • Optional offline storage module can also realize timing play and timing ringing even when disconnected from the network

  • Configure custom buttons to facilitate user-defined selections. You can choose one-key alarm, one-key on-demand and other functions

  • Support the Bluetooth push function, which can push the mobile phone audio source to the terminal for playback

  • The column line array speakers supports remote server management and remote upgrade, which is convenient for users to maintain

Technical Parameters of Internet Radio Sound Column GX-SP8022B-K / GX-SP8042B-K / GX-SP8062B-K / GX-SP8082B-K

ModelGX-SP8022B-KGX-SP8042B-KGX-SP8062B-KGX-SP8082B-K
Unit5"full frequency*1, 1.5"treble*15"full frequency*2, 1.5"treble*15"full frequency*3, 1.5"treble*15"full frequency*4, 1.5"treble*1
Power output20W40W60W80W
Network interfaceRJ45*1, 100Mbps/10Mbps
Bit rate8k~768Kbps
Sampling rate8K~48K
Frequency response80Hz—16KHz
Harmonic distortion, Signal to noise ratiolnputTHD≤0.1%; ≥70dB
PowerAC220 V
Protection circuitoverload, over temperature, short circuit protection
Product size520x227x125mm720x227x125mm920x227x125mm1120x227x125mm
Working temperature-5℃~60℃
Environmental humidity20%~80% relative humidity
