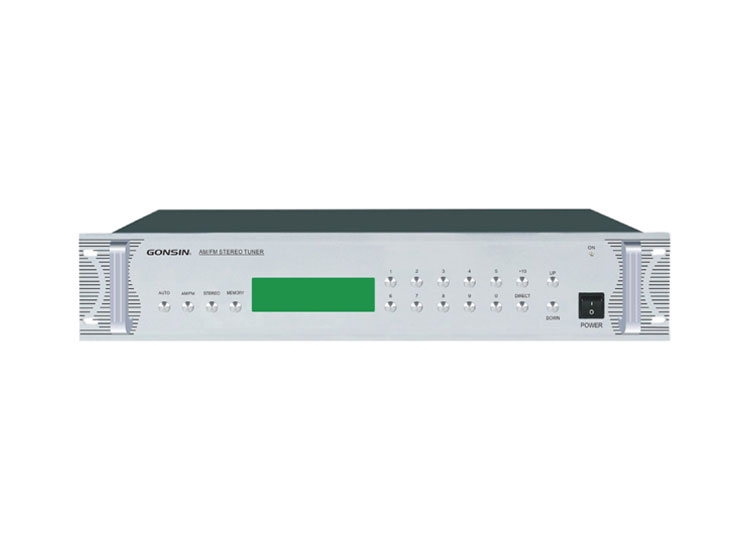

Digital Tuner GX-PB1403

Audio Digital Tuner Digital Tuner GX-PB1403
Audio Digital Tuner Digital Tuner GX-PB1403
Get A Quote
Features
Technical Parameters

Features of Digital Tuner GX-PB1403

  • Standard 2U chassis, aluminum panel, convenient and beautiful

  • Equipped with high brightness dynamic VFD LCD, the display content is clear and eye-catching

  • Stereo two band reception: Am or FM

  • With radio frequency automatic search and storage function andpower-off memory function

  • AM and FM two groups of receiving antenna input

  • 1 channel audio signal stereo audio output

  • Support remote control

Technical Parameters of Digital Tuner GX-PB1403

ModelGX-PB1403
Output frequency range20-20KHz
SNR>80 dB
Frequency rangeAM 522kHz-1620kHz; FM 87.5MHz-108MHz
Number of stations99
Power supplyAC 220V-240V/50Hz-60Hz
Power consumption15-20W
Product dimension485x339x88mm
Packing dimension560x430x370mm(2PCS)
Net weight3.89Kg
Gross weight5.18Kg
