Ceiling Speaker

Ceiling Mounted Speakers
Ceiling Speaker
Ceiling Mounted Speakers
Ceiling Speaker
Ceiling Mounted Speakers
Ceiling Speaker
Ceiling Mounted Speakers
Ceiling Speaker
Ceiling Mounted Speakers
Ceiling Speaker
Ceiling Mounted Speakers
Ceiling Speaker
Get A Quote
GX-SP105B
GX-SP106B
GX-SP108B
GX-SP105DP
GX-SP106DP
GX-SP108DP
GX-SP104EP
GX-SP105EP
GX-SP106EP
GX-SP106FP
GX-SP103GP

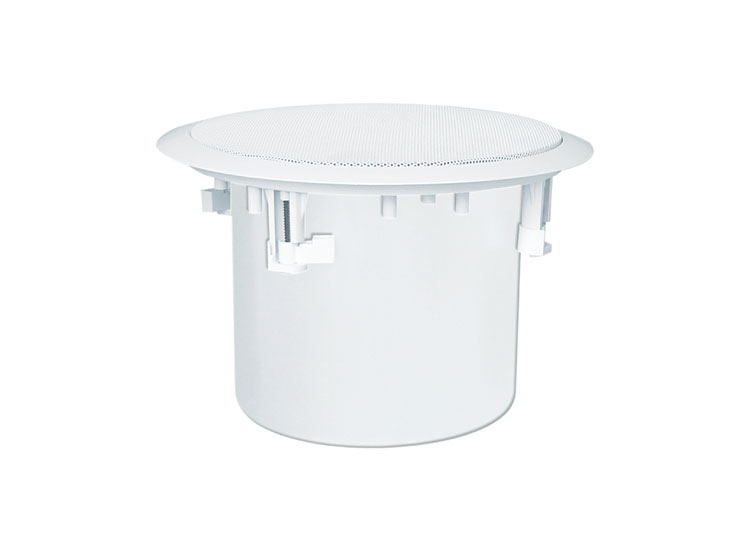

Technical Parameters of Ceiling Speaker GX-SP105B


Power taps20/10/5/2.5W/8Q
Line voltage100V/70v
Sensitivity (1m,1W)88dB
Frequency response100~20kHz
Dimension (mm)203*145
Hole for mounting170
Material(panel)ABS
Material(cover)IRON
Weight(kg)1.7

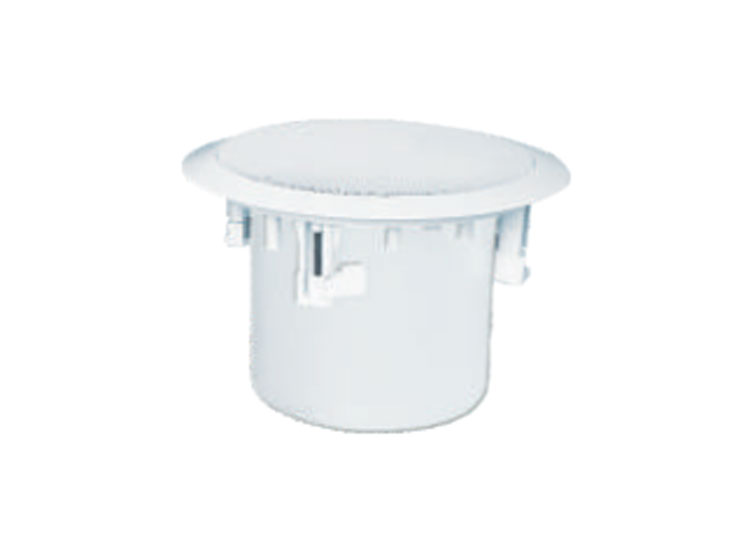

Technical Parameters of Ceiling Speaker GX-SP106B


Power taps30/15/7.5/3.8W/8Q
Line voltage100V/70v
Sensitivity (1m,1W)88dB
Frequency response90~20kHz
Dimension (mm)230*150
Hole for mounting200
Material(panel)ABS
Material(cover)IRON
Weight(kg)2.2

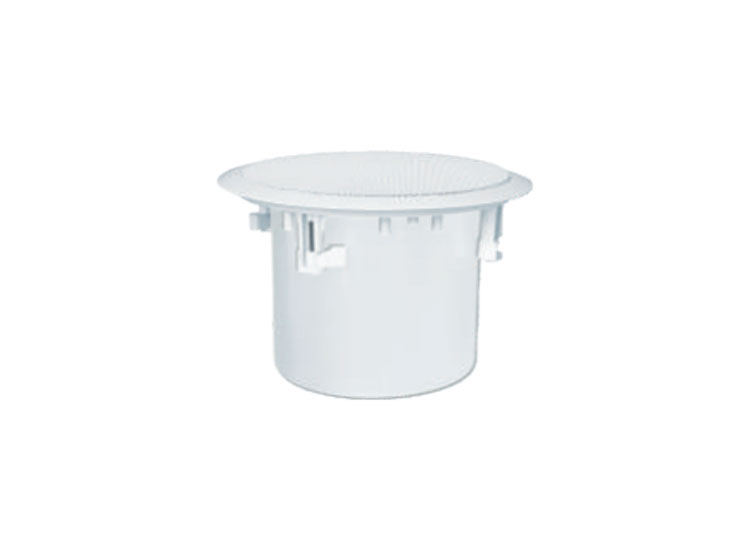

Technical Parameters of Ceiling Speaker GX-SP108B


Power taps40/20/10/5W/8Q
Line voltage100V/70V
Sensitivity (1m,1W)88dB
Frequency response50~20kHz
Dimension (mm)270*185
Hole for mounting240
Material(panel)ABS
Material(cover)IRON
Weight(kg)3.1

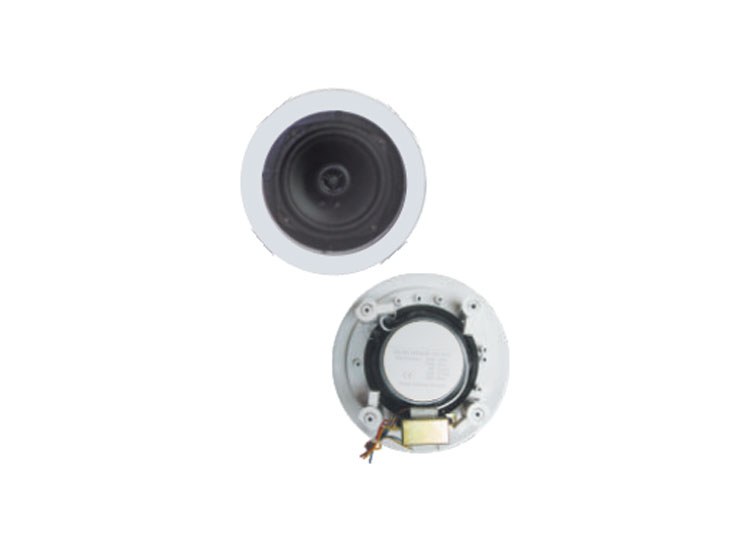

Technical Parameters of Ceiling Speaker GX-SP105DP


Rated power20w
Line voltage100v
Sensitivity (1m,1w)88dB
Frequency response100~20kHz
Dimension (mm)203*80
Hole for mounting170
MaterialABS
Weight(kg)1.25

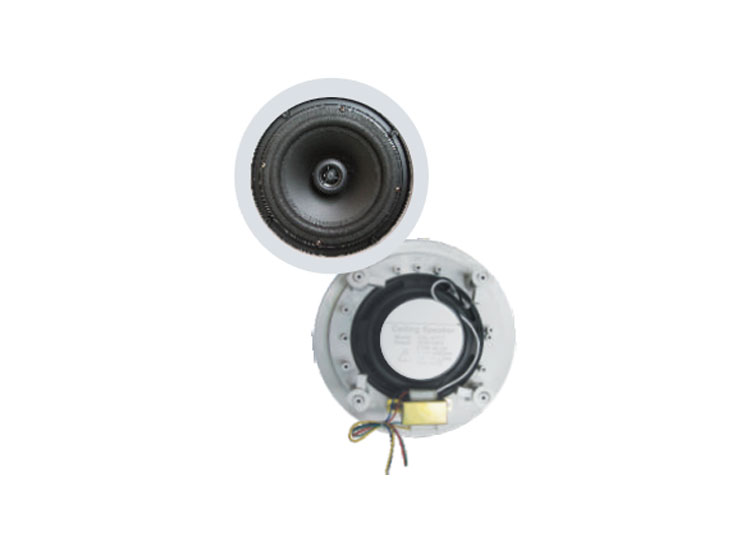

Technical Parameters of Ceiling Speaker GX-SP106DP


Rated power3ow
Line voltage100V
Sensitivity (1m,1W)88dB
Frequency response90~20kHz
Dimension (mm)230*90
Hole for mounting200
MaterialABS
Weight(kg)1.6

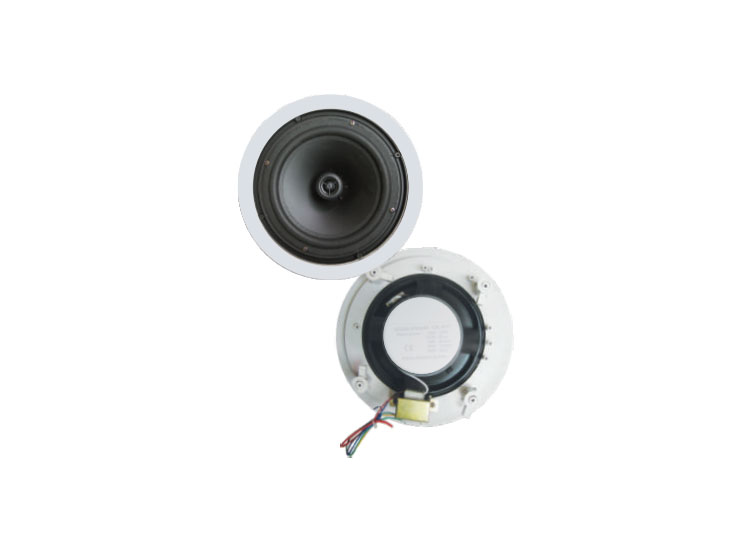

Technical Parameters of Ceiling Speaker GX-SP108DP


Rated power40w
Line voltage100V
Sensitivity (1m,1W)88dB
Frequency response50~20kHz
Dimension (mm)270*105
Hole for mounting240
MaterialABS
Weight(kg)2.1


Technical Parameters of Ceiling Speaker GX-SP104EP


Rated power6w
Line voltage100V
Sensitivity (1m,1W)90dB
Frequency response110~15kHz
Dimension(mm)180*50
Hole for mounting155
MateriallRON
Weight(kg)0.65


Technical Parameters of Ceiling Speaker GX-SP105EP


Rated power6w
Line voltage100V
Sensitivity (1m,1W)90dB
Frequency response110~15kHz
Dimension (mm)200*67
Hole for mounting170
MaterialIRON
Weight(kg)0.7



Technical Parameters of Ceiling Speaker GX-SP106EP


Rated power6w
Line voltage100V
Sensitivity (1m,1W)90dB
Frequency response110~15kHz
Dimension (mm)245*75
Hole for mounting225
MaterialIRON
Weight(kg)1


Technical Parameters of Ceiling Speaker GX-SP106FP


Rated power6w
Line voltage10ov
Sensitivity (1m,1W)92dB
Frequency response100~18kHz
Dimension (mm)200*90
Hole for mounting175
Material(panel)IRON
Material(cover)IRON
Weight(kg)0.9


Technical Parameters of Ceiling Speaker GX-SP103GP


Rated power6w
Line voltage100v
Sensitivity (1m,1W)87dB
Frequency response120~20kHz
Dimension (mm)103*80
Hole for mounting95
MaterialABS
Weight(kg)0.4



GX-SP106B

GX-SP106B
