5-zone Pre-amplifier

Microphone Preamplifier
Microphone Preamplifier
Get A Quote
Features
Technical Parameters

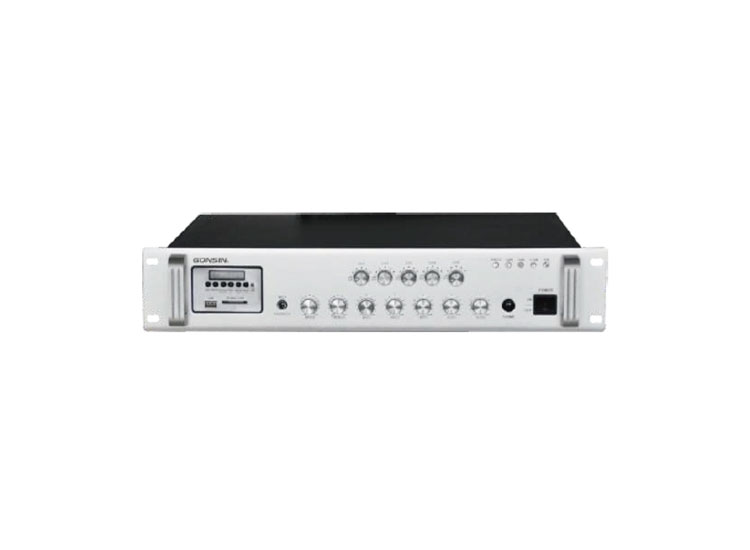

Features of 5-zone Pre-amplifier GX-PA6001 / PA6002 / PA6003 / PA6004 / PA6005

  • Standard 2U chassis, aluminum panel, convenient and beautiful

  • Itself can be considered as a full set of PA system

  • Has 5 zones, any for your selection for the speakers

  • Support Bluetooth connection, built-in USB interface, MP3 decoder; compatible with the format of MP3 and WAV

  • Has 2 input MICs, MIC 1 has priority function; The volume of each channel can be adjusted individually

  • Has 2 input channels, connect with sound source signal; The volume of each channel can be adjusted individually

  • One line output can be connected to other amplifiers to expand the power

  • With treble and bass adjustment

  • Has protection warning function of working abnormal; It is reliable

  • Adjustment with mute button, mute depth is adjustable

Technical Parameters of 5-zone Pre-amplifier GX-PA6001 / PA6002 / PA6003 / PA6004 / PA6005

ModelGX-PA6001GX-PA6002GX-PA6003GX-PA6004GX-PA6005
Rated output power70W130W220W320W420W
Power consumption100W185W320W450W600W
Output way70V-100V
Power supplyAC 220V-240V/50Hz-60Hz
Product dimension485x325x88mm
Packing dimension560x430x370mm(2PCS)
Net weight3.6Kg5.05Kg5.65Kg6.1Kg3.6Kg
Gross weight4.5Kg6Kg5.5Kg7Kg4.5Kg
