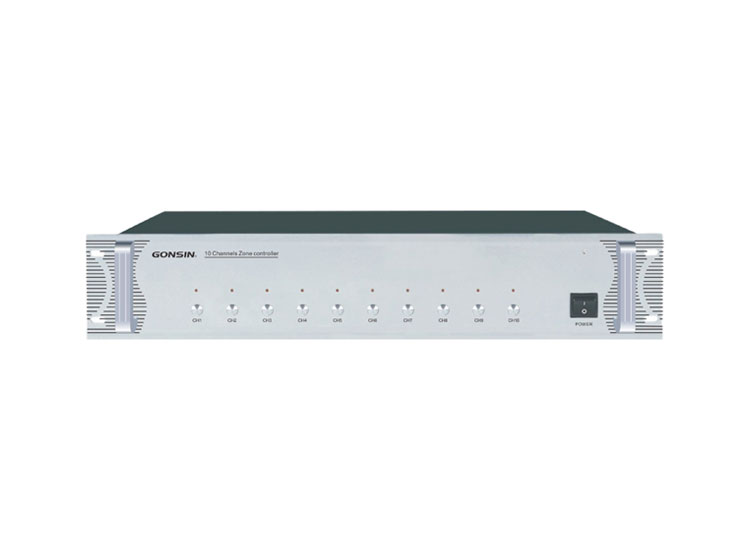

10-zone Matrix GX-PB1407

Digital Public Address System 10-zone Matrix GX-PB1407
Digital Public Address System 10-zone Matrix GX-PB1407
Get A Quote
Features
Technical Parameters

Features of 10-zone Matrix GX-PB1407

  • Standard 2U chassis, aluminum panel, convenient and beautiful

  • Support 2 channel power amplifier input and 10 channel group output

  • A-channel power amplifier output in 1-5 zones; B-channel power amplifier output in 6-10 zones

  • AB input terminals can be connected in parallel to control 1-10 zone output

  • 10 zones with independent sound control and status indicator

  • 1 short circuit fire-fighting signal input interface; support timer, intelligent controller connection, so as to realize automatic control

Technical Parameters of 10-zone Matrix GX-PB1407

ModelGX-PB1407
Total power of zones≤3KW
Power of each zone≤700W
Power supplyAC 220V-240V/50Hz-60Hz
Power consumption15-20W
Product dimension485x339x88mm
Packing dimension560x430x370mm(2PCS)
Net weight4.55Kg
Gross weight5.79Kg
