Wireless Voting System

Name: Wireless Voting System
Brand: Gonsin Conference Equipment Co., LTD.





Get A Quote

Desktop Wireless Voting Unit BJ-04-W

Wireless Voting Unit BJ-W5

Wireless Voting Central Controller ZJ-W5

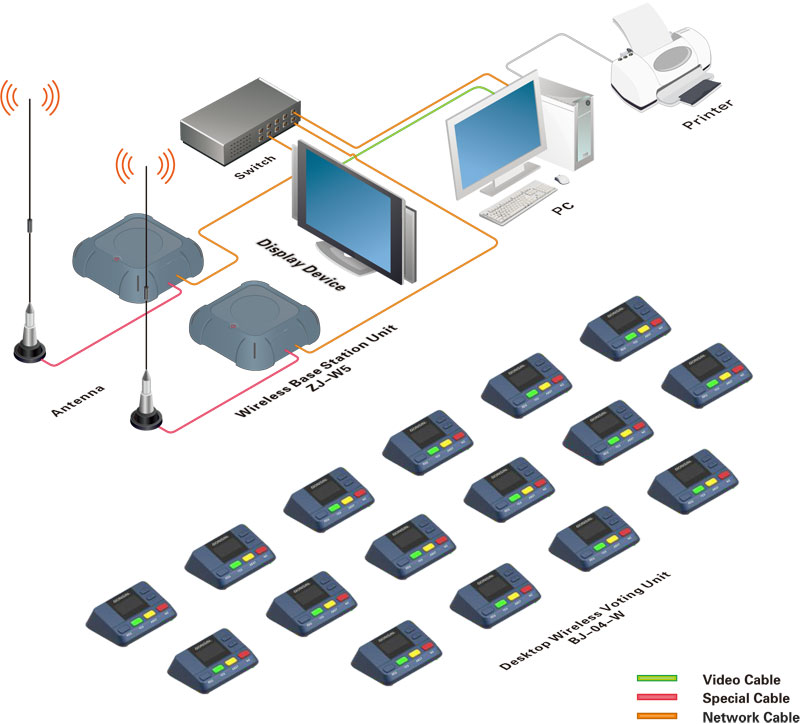

System Configuration

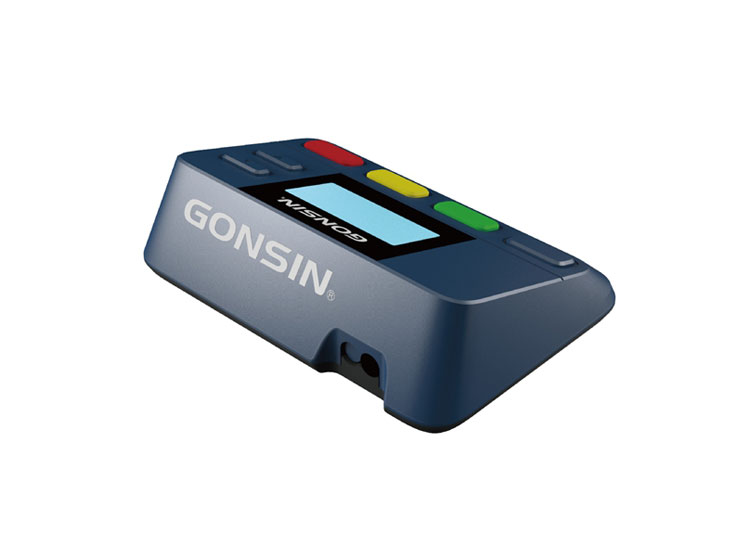

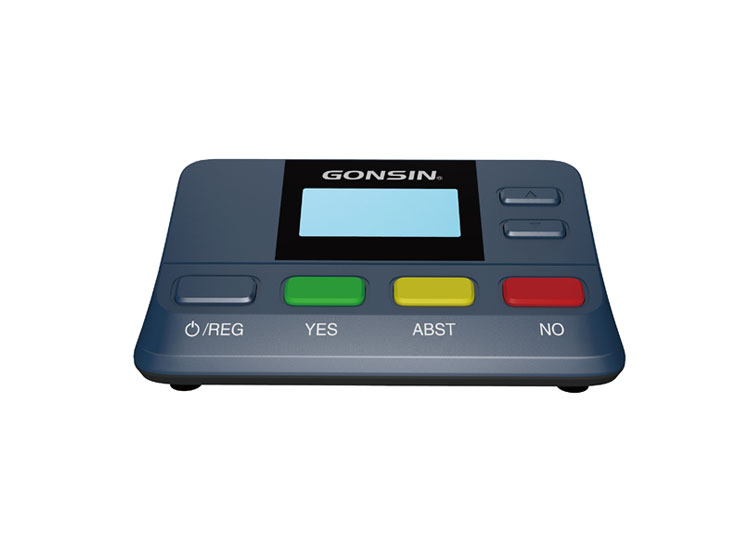

Desktop Wireless Voting Unit BJ-04-W

Features of Desktop Wireless Voting Unit BJ-04-W

Utilize wireless digital communication way
Unique wireless on-site environment online detection and frequency selection, ensure the system avoid any interference
Two registration ways, key pressing or inserting card
Software customized voting or evolution ways
LCD display screen, humanistic human-machine interaction
Automatic alarm when the system is faulty
Low power consumption, low emission power, comply with the global electrical design and communication design standard
Lithium battery or AAA battery, real-time detection of battery level, dynamic display, low battery alarm
Automatic memory of voting result when power cut off
Isolated touch switch, anti-30000V electrostatic interference
Secret hood( optional) to ensure the privacy
Unified shutdown by software
Keys have three colors, red, yellow, green, makes it impressive
Tilting silkscreen keys

Functions of Desktop Wireless Voting Unit BJ-04-W

Attendance Registration: inserting card, key-press, supplementary registration; late delegate can vote supplementally; count "number of supposed attendance", "number of real attendance", "number of absence"
Voting: delegates can vote for "Yes" "No" "Abstain" or the customized voting way by the software. Computer automatically collect statistic and display the result
Single voting and multiple voting
Effective first press-key or effective last press-key
Election: elect one or more from candidates with the support of "single-candidate election" and "multi-candidate election"
Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software
Grading: From 0-100 points, the initial score is 80 points, press "Yes" to increase points and “No" to reduce points
LCD Dynamic display of the voting process( such as "registration please, registration done, voting please, voted, please return” and etc)
Registration/ Yes/Abstain/No tilting silkscreen keys. have three impressive colors, red, yellow, green
Multiple encryption and err correction during the data transmission
Unified shutdown by software or automatic shutdown when it has not received signal for 4 hours, ensure the voting process by avoiding human misoperation

Technical Specification of Desktop Wireless Voting Unit BJ-04-W

Frequency range	300~800MHz(immune to mobile signal jammer)
Channel transponder	24 selectable channels
Registration methods	Press-key or insert card
Communication method	10mW wireless communication with confidential agreement + multi-verification
Effective communicating distance	100m
Sensitivity	-121dBm
LCD screen	128×64 dot-matrix display
Battery display	Real-time display, low-level alarm
Battery specification	Lithium battery or three AAA batteries
Service time	39 hours(Lithium battery)
Standby time	120 hours
Dimensions(L×W×H)	153mm×106mm×46mm
Net weight	0.5Kg(excluding batteries)
Working temperature	0~45°C
Storage temperature	-20~50°C

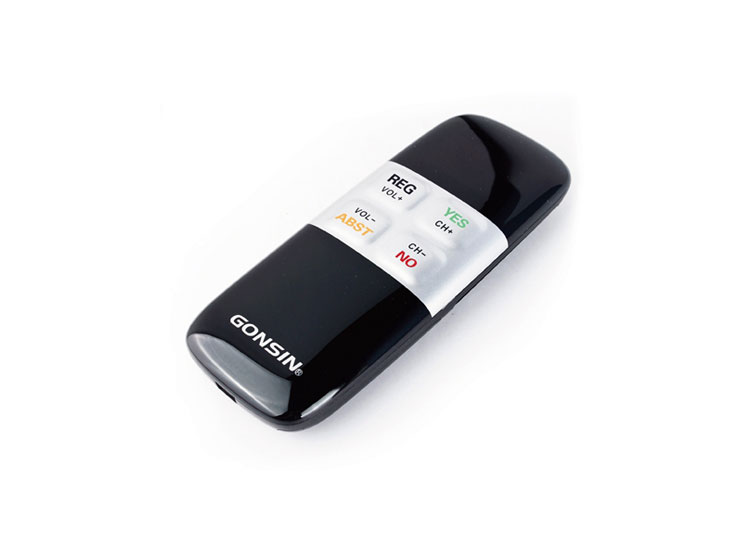

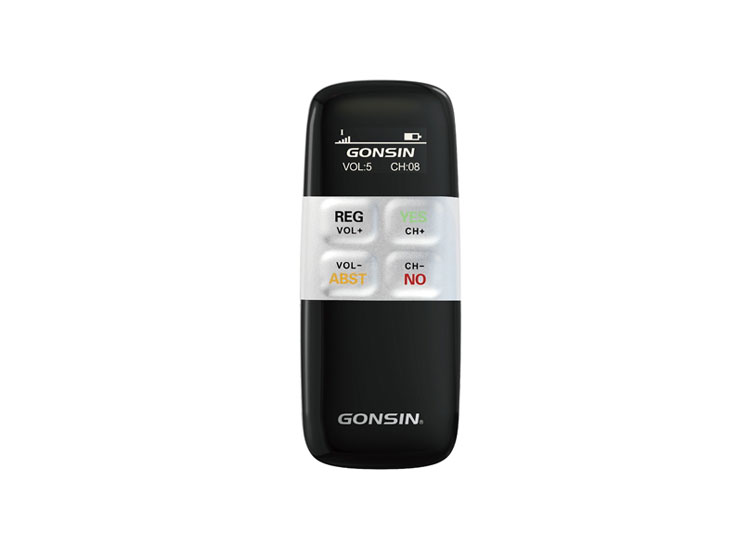

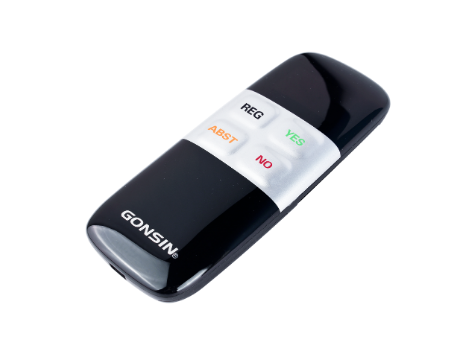

Wireless Voting Unit BJ-W5

Features of Wireless Voting Unit BJ-W5

Unique wireless on-site online environment detection and frequency selection, ensure the system avoid any interference
Two registration ways, button pressing or inserting card
Software customized voting or evolution ways
OLED display screen, humanistic human-machine interaction
Automatic alarm when the system is faulty
Low power consumption, low emission power, comply with the global electrical design and communication design standard
Lithium battery or AAA battery, real-time detection of battery level, dynamic display, low battery alarm
Automatic memory of voting result when power cut off
Isolated touch switch, anti-30000V electrostatic interference
Anti-violation and it can normally operate after dropped from 2 meters high
Software can turn off all voting units together
Immune to mobile signal jammer
Utilize wireless digital communication way

Functions of Wireless Voting Unit BJ-W5

Attendance Registration: inserting card, key-press, supplementary registration; late delegate can vote supplementally; count "number of supposed attendance", "number of real attendance", "number of absence"
Voting: delegates can vote for "Yes" "No" "Abstain" or the customized voting way by the software. Computer automatically collect statistic and display the result
Single voting and multiple voting
Effective first press-key or effective last press-key
Election: elect one or more from candidates with the support of "single-candidate election" and "multi-candidate election"
Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", “Abstain", or the customized evaluation way by software
Grading: From 0-100 points, the initial score is 80 points, press "Yes" to increase points and “No" to reduce poins
OLED Dynamic display of the voting process ( such as "registration please, registration done, voting please, voted, please return" and etc)
Multiple encryption and err correction during the data transmission
Unified shutdown by software or automatic shutdown when it has not received signal for 4 hours, ensure the voting process by avoiding human misoperation

Technical Specifications of Wireless Voting Unit BJ-W5

Frequency range	300~800MHz
Channel transponder	24 selectable channels
Registration methods	Press-button or insert card
Communication method	10mW wireless communication with confidential agreement + multi-verification
Stable communicating distance	100m
Sensitivity	-121dBm
LCD screen	35*17.5MM
	128×64 dot-matrix display
	OLED display
Battery display	Real-time display, low-level alarm
Battery specification	Lithium battery or three AAA batteries
Service time	>26 hours( lithium battery )
Package	Aluminum carry case
Dimensions	1506322mm
Net weight	0.13Kg(excluding batteries)
operating temperature	0~45℃
Storage temperature	-20~50℃

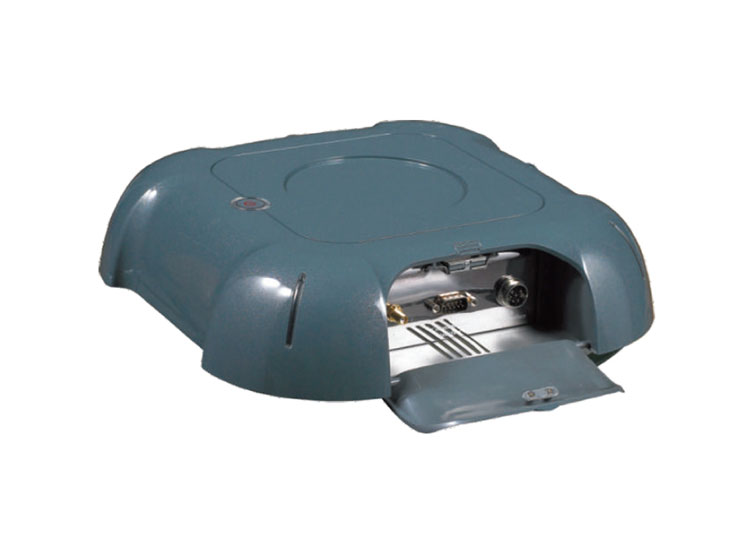

Wireless Voting Central Controller ZJ-W5

Functions of Wireless Voting Central Controller ZJ-W5

In compliance with IEC60914 international standard
Fashionable and elaborate appearance design with working state indicator
It can control 200 wireless voting units to support maximum 4096 people in voting at the same time; satisfy voting needs in different conferences
100 meters radio frequency transceiver range, 300～800MHz communication band, supporting 24 frequency point interchange, resistant to mobile phone signal shielding device
Voting central controller and computer connect with network cable; multiple voting central controllers can be cascaded through switches
With unique serial numbers, conference systems support assign ID to system devices automatically or manually
The unique automatic tracking two-way measurement full calibration or non-full calibration multi-integration calculation technology is used to ensure the accuracy of calculation results.
To process multi-level error correction and encryption scrambling on data during information transmission ensure data security
Support dual-system hot backup function to escort the conference
The software supports unified device shutdown and no signal automatic protection shutdown, ensuring that voting will not be affected by the attendee turning off the voting unit
With frequency measurement, frequency selection and frequency offset correction functions, there are 24 frequency points to choose from, avoiding frequency points interference and ensuring stable and smooth communication
Antennas with different emission distances can be selected to meet the needs of different areas of the venue
Support the installation of the triangular bracket, which can be flexibly placed according to the venue environment

Technical Specification of Wireless Voting Central Controller ZJ-W5

Installation	Bracket mounting
Frequency range	300～800MHz (resistant to mobile phone signal shielding device)
Number of Frequency points	24 channels interchange
Way of communication	10mW wireless communication
Communication distance	100m
Sensitivity	-121dBm
Connection method	Network cable
Single base station capacity	200 units
Max system capacity	4096 units
Antenna length	Small: H:120mm; Medium: H:880mm
Dimensions(WHD)	285mm×285mm×65mm
Power	DC 12V
Net weight	1.7Kg
Maximum power consumption	<15W
Operating temperature	0~45°C
Storage temperature	-20~50°C
