Wall-mounted Touch Panel

Pa System For Meeting Room
Conference Pa System
Pa System For Meeting Room
Conference Pa System
Get A Quote
GX-PAN18-N
GX-PAN04-N

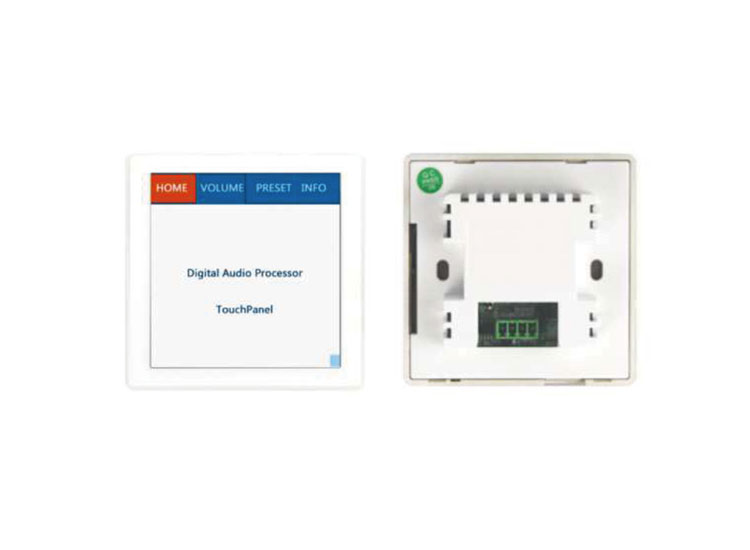

Features of GX-PAN18-N Wall-mounted Touch Panel

  • Use with digital audio processor of GX-

  • DSP1022/1023/1024/1025/1026(A)

  • 86 box wall-mounted installation

  • Audio source selection, volume control, preset recall and other operations can be handled by the touch screen

  • It can realize two-way communication used with digital audio processor; the volume value of each audio channel can be transmitted to the touch screen in real time

  • It supports up to 16 wall-mounted touch panels, which can be synchronized with the digital audio processor in real time

  • The panel can be used in multiple scenes, and the controls can be customized

  • 4-inch 65K color LCD display has Chinese and English version, which is easy to understand

  • Smooth operation with capacitive touch screen control

  • Communication interface: Rs485

  • GONSIN series digital processor products used with the control panel will make the system more cost-effective


Technical Specifications of GX-PAN18-N Wall-mounted Touch Panel

Screen size4"
Resolution480×480
Color65K colors,16-bit RGB
Display typeTFT LCD
Brightness250cd/㎡
Backlight tubeLED
Backlight life (average)>20,000 hours
Contrast800:01:00
Perspective80/80/80/80
InstallationNational standard 86 bottom box
Communication InterfaceRS485
TouchCapacitive touch screen
Number of touchesUnlimited
Power consumptionSleep: 0.4W;
the darkest without speaker: 1.5W;
the brightest without speaker: 2.4W
Voltage input9-36V
Operating temperature0~40°C
Storage temperature-20~+70°C
Product size(W×D×H)90.7 × 90.7 × 27.9mm
Net Weight90g

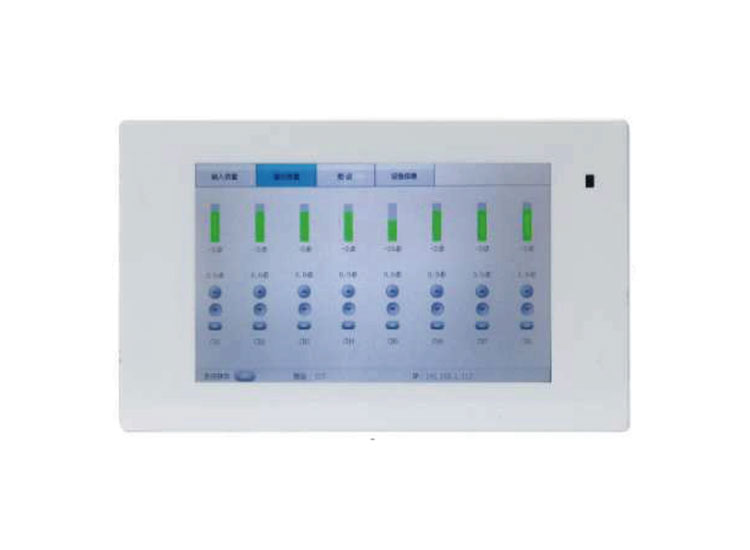

Features of GX-PAN18-N Wall-mounted Touch Panel

  • Use with DSP1011 digital audio processor

  • 146 type universal bottom box installation

  • Sound source selection, volume control and preset recall can be controlled by touch screen

  • Two-way communication with digital audio processor, the volume value of each audio channel can be transmitted to the touch screen in real time

  • Panels can be combined into multiple scenes, and controls can be customized

  • 5-inch 65K color LCD display, with Chinese and English interface, easy to understand

  • Communication interface: Rs485

  • Using this control panel with GONSIN digital processor series products will make the system more cost-effectiveefficient.


Technical Specifications of GX-PAN04-N Wall-mounted Touch Panel

Screen size5"
Resolution800×480
Color65K colors,16-bit RGB
Display typeTFT LCD
Brightness2300cd/m
Backlight tubeLED
Backlight life (average)>20000 hours
Contrast500:01:00
Perspective70°/70°/50°/70°
InstallationNational standard 146 bottom box
Communication InterfaceRS485
TouchCapacitive touch screen
Number of touchesSingle point more than 1 million times
Power consumptionthe darkest without speaker :0.74W;
the brightest without speaker:1.5W
Voltage input5~26V
Operating temperature0~40℃
Storage temperature-30~80℃
Product size(W×D×H)155×92×27mm
Net Weight120g
