Dual 5-inch Line Array Series Speaker

The dual 5-inch line array speaker is a small line array package. The GX-SP2005DL-Z box speaker array is equipped with 2 5-inch Celestion units and 3 neodymium magnet 0.5-inch Celestion tweeters. The high and low units are matched with each other to make the sound Clean and powerful, and the intermediate frequency is more prominent and clear. Exquisite and concise appearance design, the back panel is designed with 9 kinds of angle accessory brackets, which is convenient for angle adjustment on different occasions. The whole system is simple to use and practical. With the GX-SP2012SSBB-Z 12-inch passive subwoofer speaker, the bass is enhanced and the sound field is more full and powerful. The box body is designed with a rectangular parallelepiped frameless structure, with a structural handle, small in size, light in weight, easy to install and move, and does not affect the overall appearance of the decoration.


Array Speaker System
Box Line Array 5 Inch
Array Speaker System
Box Line Array 5 Inch
Get A Quote
Features
Technical Specifications

Features of Dual 5-inch Line Array Series Speaker

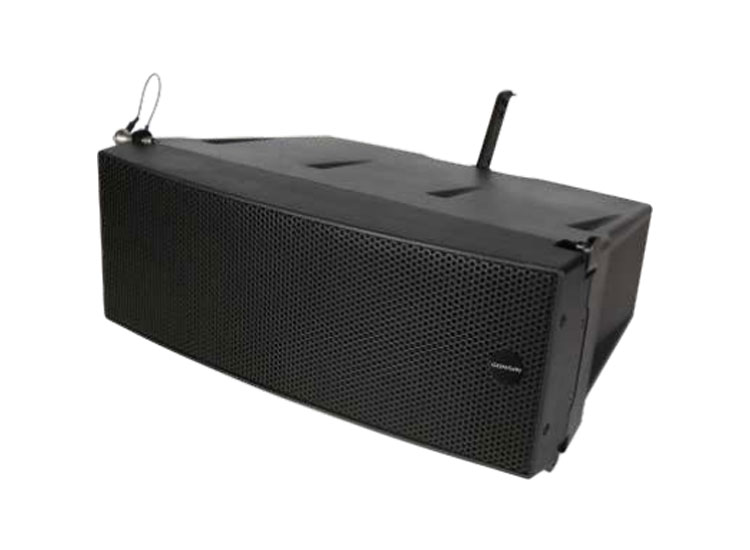

GX-SP2005DL-Z

  • The Celestion unit is used in both treble and bass and the sound is powerful.

  • Multiple combinations: linear array or with a stand

  • Unique design

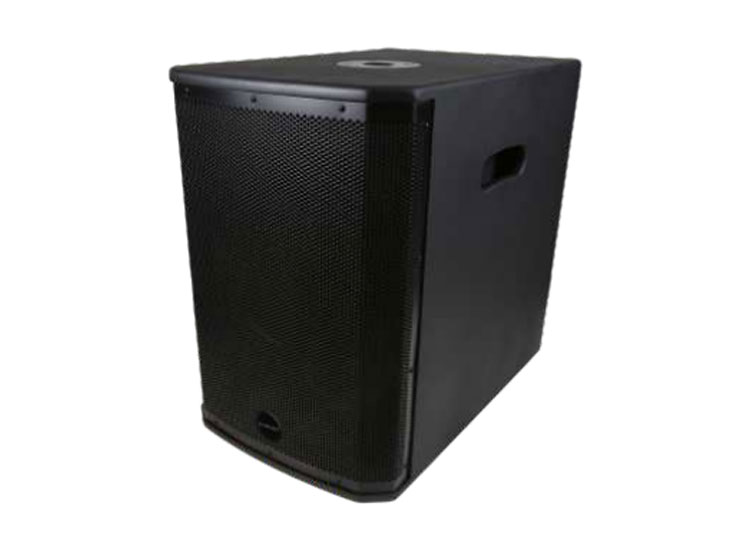

GX-SP2012SSBB-Z

  • Rectangular parallelepiped structure cabinet

  • No side design, With a structural handle

  • Unit with hidden structure

  • Side stand holes for use with full range

  • Small size, does not affect the overall decoration

  • Lightweight for easy installation and remove


Applications of Dual 5-inch Line Array Series Speaker

  • Auditorium

  • Multifunctional hall

  • Meeting room

  • Banquet hall

View dual 12-inch line array speakers for larger-scale professional audio applications.

Technical Specifications of Dual 5-inch Line Array Series Speaker

ModelGX-SP2005DL-ZGX-SP2012SSBB-Z
TypeDual 5-inch Line Array Series SpeakerPassive subwoofer
Unit compositionBass: 2×5 inches
Treble: 1×1 inch		Bass: 1×12 inch
Frequency response90Hz~20kHz40Hz-200Hz(-6dB)
Sensitivity (1W/1m)100dB101dB
Rated power/peak power240W/480W500W/1000W
Maximum/peak sound
pressure level		124dB128dB
Rated impedance8Ω8Ω
Covering angle (H×V)Horizontal 100 °, vertical 5 °-
Connect the socket2×speakon NL4MP2×speakon NL4MP
Dimensions (W×D×H)430×304×161mm437×440×410mm
Package dimensions450×406×529(two pack)530×530×505mm
net weight8kg19kg
Gross weight19.5kg (two pack)21.5kg
Appearanceblackblack
Hanging/installation deviceA set of standFloor mat
