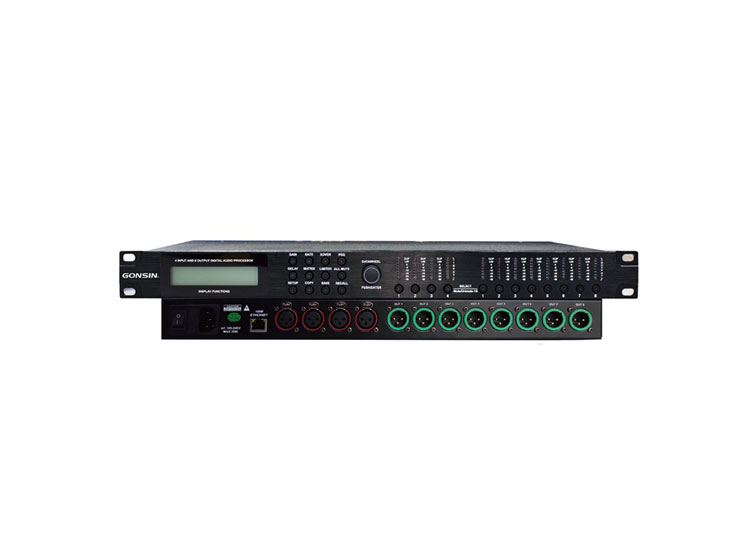

Digital Audio Processor GX-DSP1011

GONSIN Digital Audio Processor adopts the fourth-generation audio DSP chip, hence now it is equipped with strong DSP processing power. Furthermore, the unique core DSP method and the design for lower noise as well as lower distortion provide high-quality sound quality to the site. The updated Digital Audio Processor not only meets the operating requirements of professional audio projects of all sizes, but also meets the application requirements of various social occasions (Theatre, concert hall, remote video conference, stadium, church, convention center, theme park, etc.)

Dsp Audio
Dsp Audio
Get A Quote
Features
Technical Specifications

Features of Digital Audio Processor GX-DSP1011

  • High-performance floating-point DSP processing chip

  • Balance XLR 4

  • All the input channels have Gain Control, Noise Gate, Automatic Feedback Suppressor, High and Low Pass Filter, Parameter Equalizer (16 segments), Compressor, Delay Timer and Input

  • Marshalling Controller

  • 8 balanced-line electrical levels for output voltage

  • All the input channels are with High and Low Pass Filter, Parameter Equalizer (16 segments)

  • Compressor, Delay Timer, and Input Marshalling Controller

  • Support matrix mixing, realize free mixing output of any input channel

  • Dynamic range:114dB, ADC, DAC

  • Built-in signal generator. sine wave signal, pink noise, white noise

  • The front panel carries input and output volume display lights, error warning light

  • The panel carries with LCD display monitor, which helps display the system status directly

  • Be open to RS-232, TCP/IP, and the third-part calling control could be achievable

  • The preset-scene function is supportive of 32 sets of scenes and can be adjusted by RS-232 TCP/IP

  • Can take control through Ethernet, the operation interface of the digital audio signal processor is visualized and the setting is easy and efficient

Technical Specifications of Digital Audio Processor GX-DSP1011

DSP Frequencies, capacity400Mhz, 400MIPS, 2200 MFLOP
Sampling frequency/quantification48 KHz, 24Bit ADC,24Bit DAC
Frequency response20 Hz~20KHz, +/-0.2dB
Dynamic rangeADC: 114dB; DAC: 114dB
THD<0. 0035%: 1kHz@+4dBu; <0. 005%: 20Hz~20KHz@+4dBu
Audio input4*XLR Balance
Default input and output levels+0 dBu
Maximum input level+18dBu
Input impedanceBalance: >5 KΩ, Unbalance: >3KΩ
Output impedance600Ω
CMRR>70dB@1KHz
EIN<-125dBu, 22Hz~22KHz
Background noise-92dBu
Audio output8*XLR Balance
Nominal output level0 dBu Line level
Output impedance600Ω balance
Signal crosstalk>-80dB@1KHz(typical)
Preset scene32 sets scenes, can be adjusted by TCP/IP
Function moduleGain Control, Noise Gate, Automatic Feedback Suppressor, High and Low Pass Filter, Parameter Equalizer (16 segments), Compressor, Delay Timer and Input Marshalling Controller
Signal generatorsine wave signal, pink noise, white noise.
Operating modeTCP/IP, RS-232
Operational softwareWINDOWS
Power supplyAC100~240V,50/60Hz
Watts75W
Working condition0~40°C
Storage temperature-20~45°C
Product dimensions (W*D*H)1U, 483*207*44mm
Package size (W*D*H)520*380*80mm
Net weight2.85Kg
Gross weight4Kg
