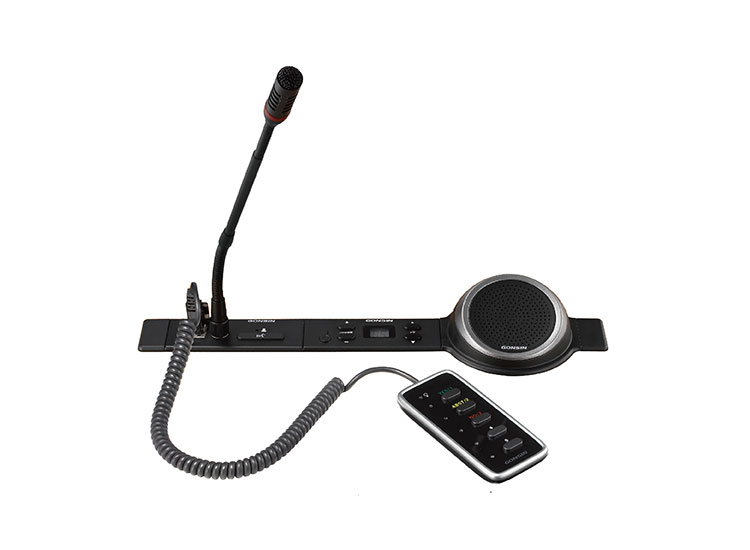

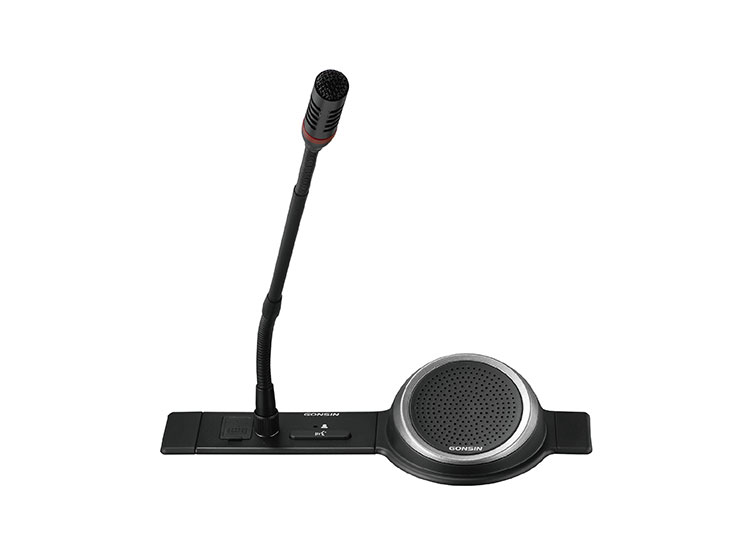

GONSIN TL-5600 digital conference system is designed to provide a versatile flush mounting solution including five function modules include a basic module, simultaneous interpretation module, voting module, extended handheld voting keypad module, loudspeaker module. All these modules are self-contained and can be flexibly configured, enabling conference terminals to offer more or less functions. Discussion unit allows the delegate to talk and request to talk, with automatic camera tracking and an RJ-45 expansion port for additional plug-and-play handheld voting keypad. Channel selection unit offers 6 channels for participants to hear the selected channel through a personal headphone and adjust the volume level for comfortable listening. Voting unit is used for attendance registration, voting, election and evaluation. Loudspeaker can be added to the discussion unit depending on the venue needs.

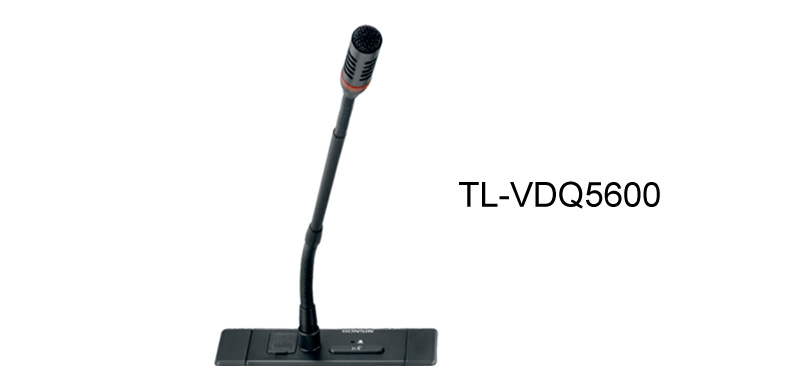

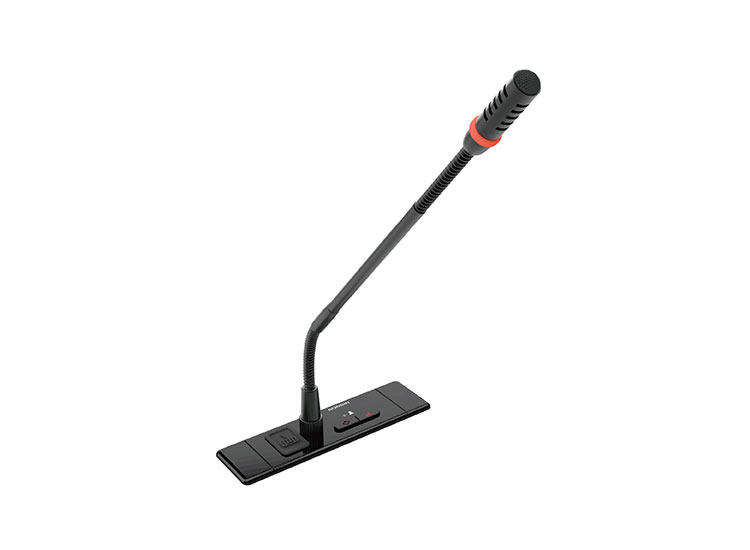

Discussion Unit TL-VDQ5600/ TL-VXQ5600
Main Features
Voice-activated microphone mode
Low susceptibility to interference from mobile phones
Pluggable gooseneck microphone stem
Waterproof and dustproof design
Long microphone pick-up range
Red ring luminant to identify active unit
Blue LED indicator for chairman or VIP
Basic Functions
Microphone mode: VOX/AUTO/FIFO/OPERATOR/Request to speak( with software)
Unlimited number of chairman units or vice chairman units
This conference room mic system supports hot-plugging
Six kinds of detachable microphone stem for various conferences
Support control speak time with software
Anti-nonself design for extended interfaces, make it more durable
Basic discussion unit comes with RJ45 extended interface for plug-and-play voting keypad to realize voting, election, evaluation functions
Attendance: registration by keypress or late registration
In VOX mode, microphones will be activated as users speak. VOX sensitivity (high/middle/low) and mic time-out(6-180 seconds) can be adjusted by the server. Besides the chairman unit, 4 delegate unit can be activated at the same time.
Blue indicators of Chairman and vice chairman unit are always on.
Optional HD video camera tracking matrix, switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view
4*1+1 video matrix is built in the Central Control Unit, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view
Technical Specifications
| Installation | flush mounting |
| Frequency response | 20Hz~20KHz |
| Max SPL | 125dB (THD<3%) |
| Dynamic range | 85dB |
| Sensitivity | -46dB±4dB |
| THD | THD<0.05% |
| SNR | ≥96dB |
| Power | 24V |
| VOX Sensitivity | High/Middle/Low 77dB/80dB/82dB three modes |
| VOX auto mic time-out | 6~180 seconds |
| Microphone stem length | 410mm(standard) 310mm/510mm optional |
| Dimension (L×W×H) | 100mm×40mm×60mm |
| Hole Dimension (L×W) | 124±4×33±2 table thickness ≥15mm |
| Weight | 0.08Kg |
| Working temperature | 0~45°C |
| Storage temperature | -20~50°C |

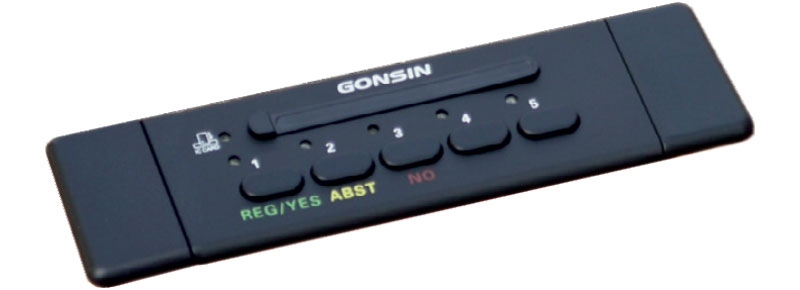

Flush Voting Unit BJ-Q5600
Main Features
Simple and stylish design
LED indicator to show working status for attendance and voting
Voting and evaluation options are defined by system software
30000V ESD protection circuit design
Waterproof and dustproof design
Basic Functions
Utilize unique auto tracking validation and comprehensive calculation technology
Multiple correction and encryption for data process, ensure the data security
Maximum system capacity is 4096 units
Attendance registration: by IC card, key press. Two-color LED indicator to indicate the registration method and status
Voting: Yes/No /Abstain. Vote count and result display are enabled automatically by PC
-- Normal voting and direct voting
-- Single-choice and multiple-choice voting
-- First keypress and final keypress voting
Election: elect one or more out of multiple candidates, with 'competitive election', 'equal number election' and 'quick election’
Evaluation (opinion polls): Best, Good, Fair, Poor. Evaluation method can be defined by the system software
The LED indicator will indicate working status of voting, election and evaulation
Technical Specifications
| Mounting type | flush mounting |
| Powered | by the central control unit |
| Weight | 0.08Kg |
| Dimensions | 100×40×60mm (W×D×H) |
| Hole Dimensions | 124±4×33±2(L×W), table thickness≥15mm
|
| Working temperature | 0~45°C |
| Storage temperature | -20~50°C |

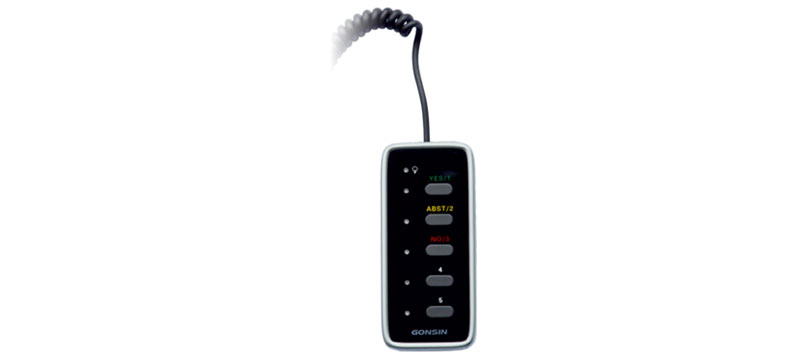

Handheld Voting Keypad BJ-K5600
Main Features
Designed for ease of system expansion
Handheld unit offers higher level of convenience and privacy
LED indicators to show working status for voting
Voting and evaluation options are defined by system software
30000V ESD protection circuit
Waterproof and dustproof design
Basic Functions
Plug-and-play handheld voting keypad is connected to basic discussion unit by extended
interface to realize voting, election and evaulation function
Registration:support key press to register,LED indicator to indicate the registration status
Voting: Yes/NO / Abstain. Vote count and result display are enabled automatically by PC
-- Normal voting and direct voting
-- Single-choice and multiple-choice voting
-- First keypress and final keypress voting
Election: elect one or more out of multiple candidates, with 'competitive election', 'equal number election' and 'quick election'
Evaluation (opinion polls): Best, Good, Fair, Poor, evaluation can be customized by the software
LED indicator will indicate working status of voting, election and evaulation
Technical Specifications
| Mounting type | handheld |
| Extended interface | RJ45 |
| Dimensions | 120×55×15mm(H×W×D) |
| Weight | 0.1Kg hand-held voting keypad |
| Working temperature | 0~45°C |
| Storage temperature | -20~50°C
|

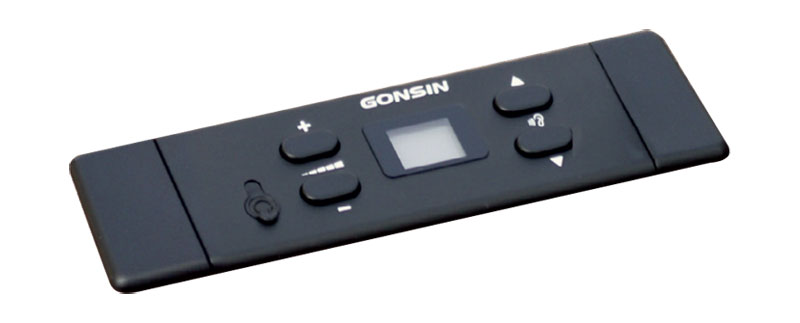

Channel Selection Unit TC-Q5600
Main Features
Basic Functions
6 selectable channels for interpretation
Interpretation volume level can be adjusted individually, or centrally by CCU
Selected channel number, volume and VOX sensitivity are shown on LCD
Rich timbre
Technical Specifications
| Mounting type | flush mounting |
| Frequency response | 20Hz~20KHz |
| THD | <0.05% |
| SNR | ≥96dB |
| Channel number | 6 channels |
| Powered | by the central control unit |
| LCD Dimensions: | 17mm×14mm |
| Earphone jack | 3.5mm jack stereo |
| Dimension (W×D×H) | 100mm×40mm×60mm |
| Hole Dimension(L×W) | 124±4×33±2（table thickness≥15mm） |
| Weight | 0.06Kg |
| Working temperature | 0~45°C |
| Storage temperature | -20~50°C |

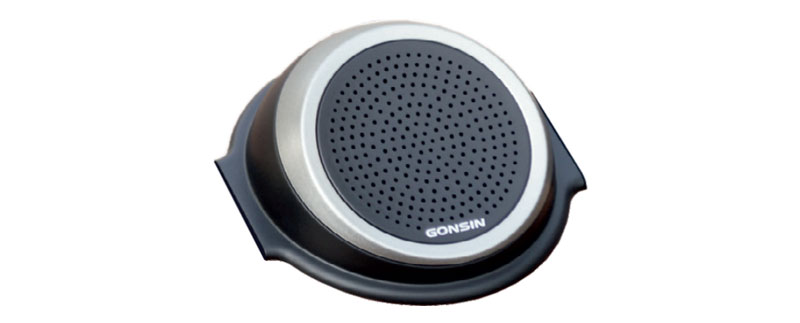

Loudspeaker SPK-10
Main Features
Simple and stylish design
High-definition audio processing
30000V ESD protection circuit MIC is turned on
Basic Functions
Loudspeaker volume level can be adjusted individually, or centrally by CCU
Human-friendly inclination angle, make its performance better
Technical Specifications
| Mounting type | flush mounting |
| Powered | 2W/8Ω |
| Frequency response | 200Hz~16KHz |
| Sensitivity | 89dB |
| Powered | by the central control unit |
| Dimension(W×D×H) | 100mm×100mm×60mm |
| Hole Dimension(L×W) | 124±4×33±2(table thickness≥15mm) |
| Weight | 0.09Kg |
| Working temperature | 0~45°C |
| Storage temperature | -20~50°C
|

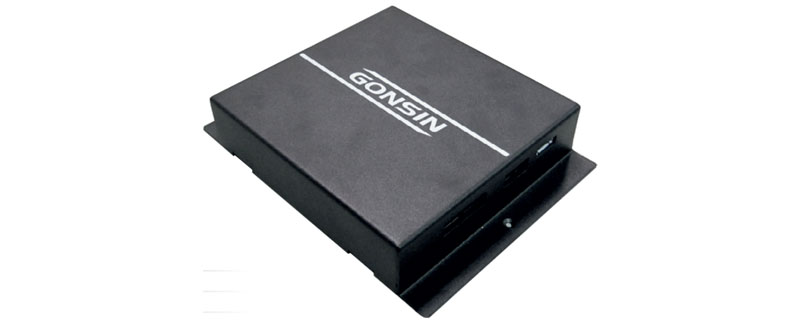

Technical Specifications of Connector CON-5600
| Working temperature | 0~45℃ |
| Storage temperature | -20 ~ 50℃ |
| Dimensions (WxDxH) | 210x160x40mm |
| Net weight | 1083 g |

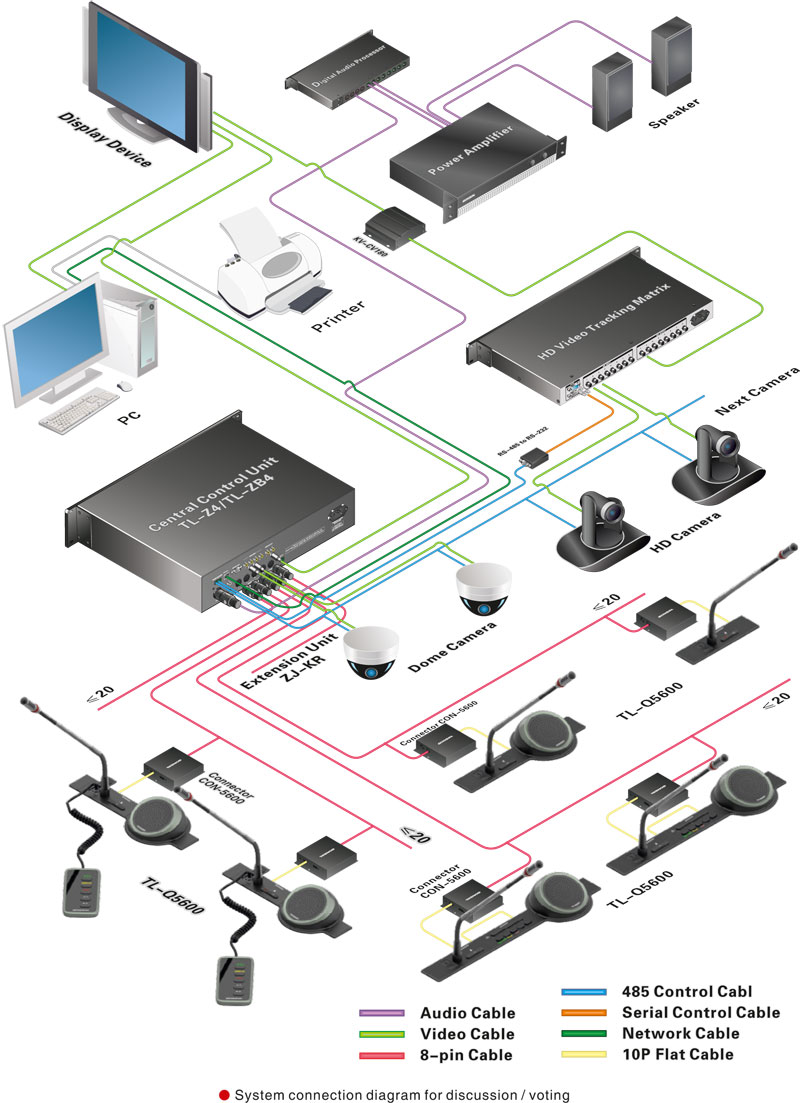

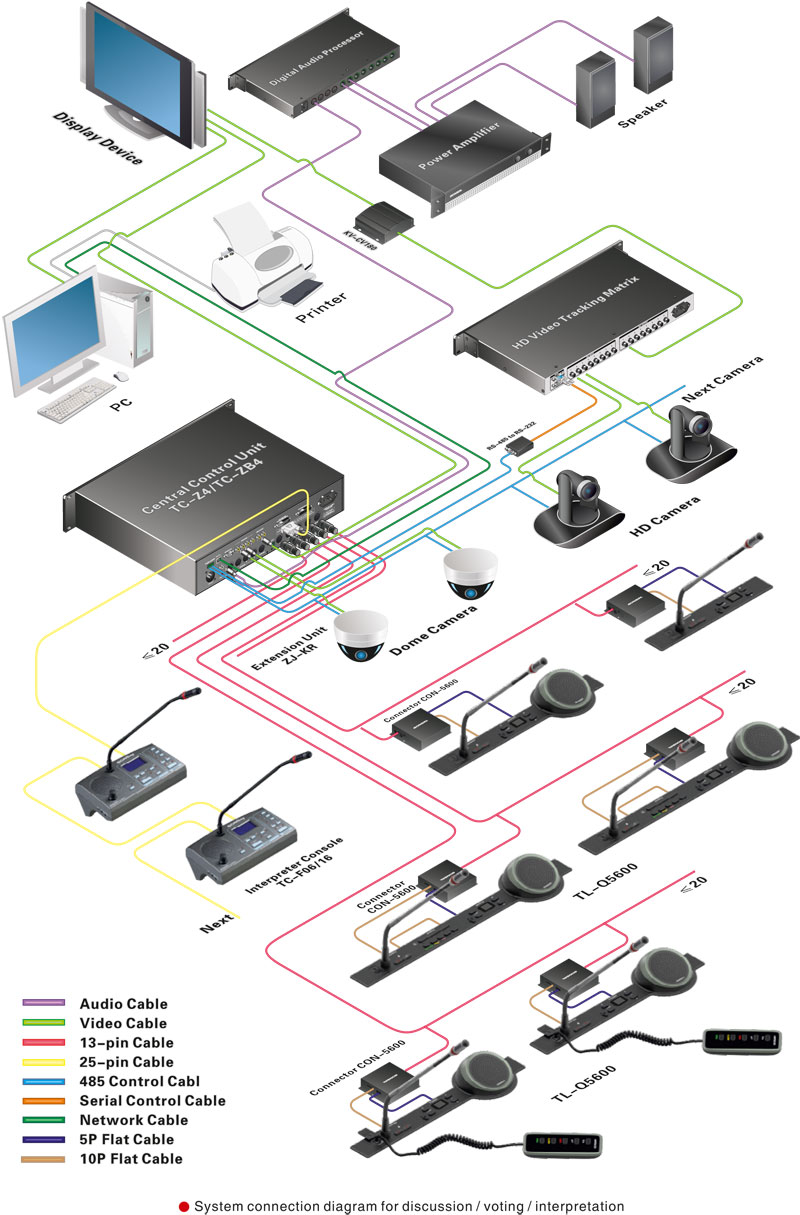

System Configuration of TL-5600 Flush-mounting Combination Digital Conference System
