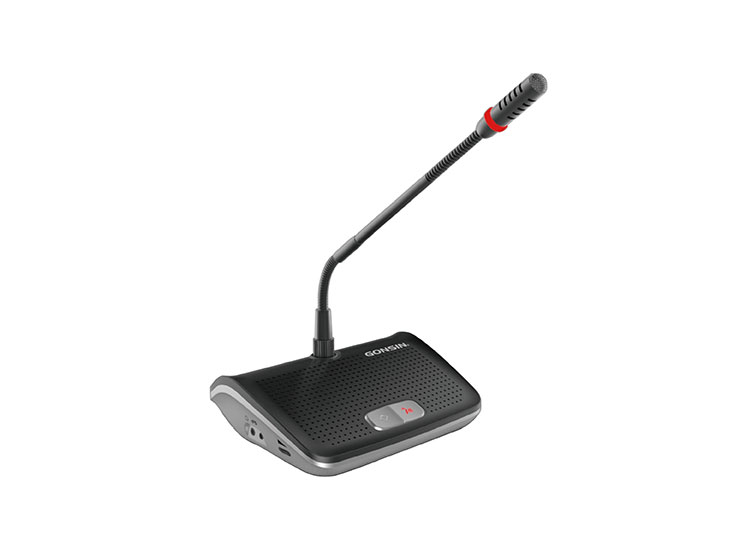

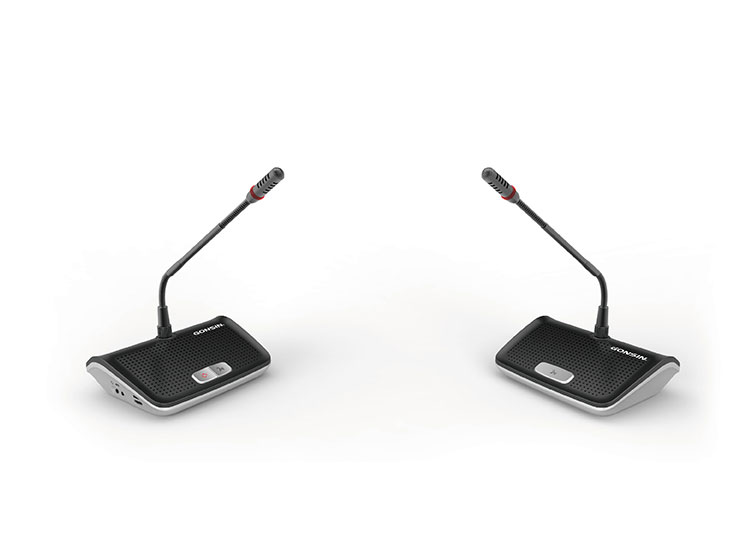

TL-3300 Desktop Digital Conference System

TL-3300 digital conference system allows the delegate to speak, request to speak and listen to the speech. Each discussion unit comes with headphone jack and volume control for the delegate to listen to the floor audio, and adjust volume level for comfortable listening. 1 to 4 delegate microphones can be activated at the same time.

TL-3300 Desktop Conference Microphone
TL-3300 Conference Desk Microphone
TL-3300 Desktop Conference Microphone
TL-3300 Conference Desk Microphone
Get A Quote
Functions
Technical Parameters
System Configuration

Functions of TL-3300 Desktop Digital Conference System

  • Highly resistant to mobile phone interference

  • Supports HD video camera tracking

  • Multiple chairman /vice-chairman units are allowed

  • Pluggable gooseneck microphone

  • Easily hidden unit connecting cables

  • Selectable microphone modes: AUTO / FIFO / OPERATOR/ Request(with software)

  • Unlimited number of chairman microphones and vice chairman microphones

  • This conference room microphone and speaker system supports hot plugging

  • Three types of detachable gooseneck microphones

  • Press the key to register with the software

  • Control the speaking time with software

  • Floor audio listening via headphones or built-in loudspeaker

  • Attendance registration: key press and supplementary registration( with software)

  • Units come with recording output

  • The chairman unit can override/mute all the active delegate units

  • Supports automatic video camera tracking with preset panoramic position

The chairman unit has below function besides the functions above

  • Chairman units can be activated at any time

  • The chairman unit has an additional red priority button, which can override all active delegate units.

Compact structure design, easily hidden unit connecting cables, more beautiful appearance.

Technical Parameters of TL-3300 Desktop Digital Conference System

Mounting typeTabletop
Frequency response20Hz-20KHz
SNR＞96dB
Max SPL125 dB (THD<3%)
Dynamic range＞85dB
Sensitivity-46dB±4dB
THD<0.05%
Power input24V
Microphone lengthStandard 410 mm, Optional 310/510mm
Headphone jackMono 3.5mm
Internal loudspeaker4Ω/3W
Weight0.75 kg
Dimensions190×162×60 mm (W×D×H)
Operating temperature0~45°C
Storage tempefrature-20~50°C

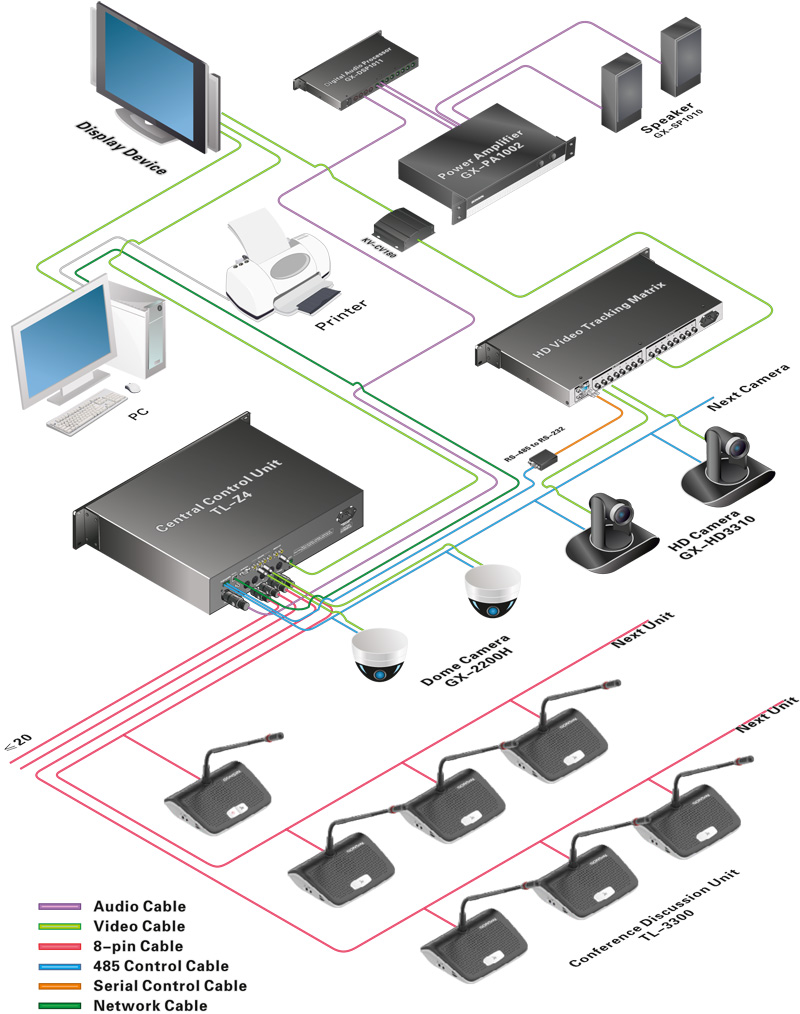

System Configuration of TL-3300 Desktop Digital Conference System

TL-3300 Desktop Digital Conference System

System Configuration Products of TL-3300 Desktop Digital Conference System
