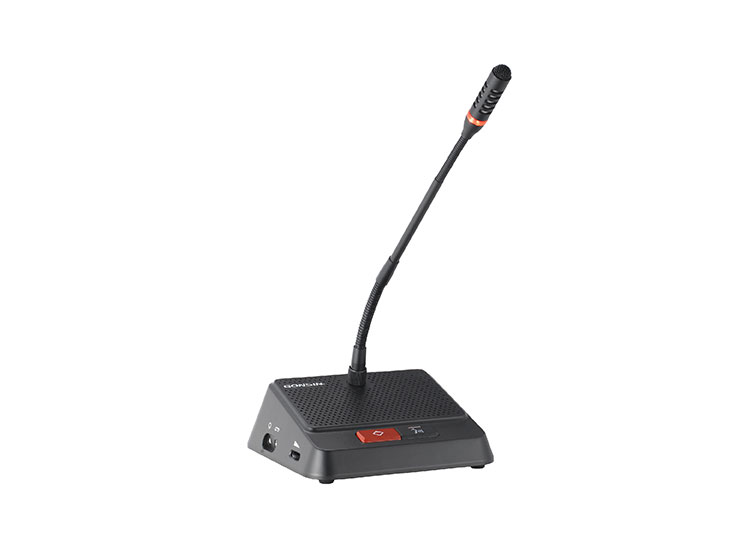

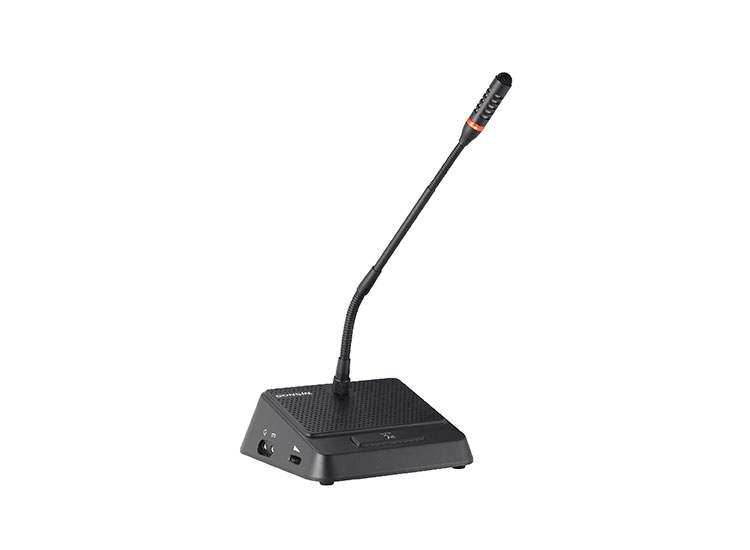

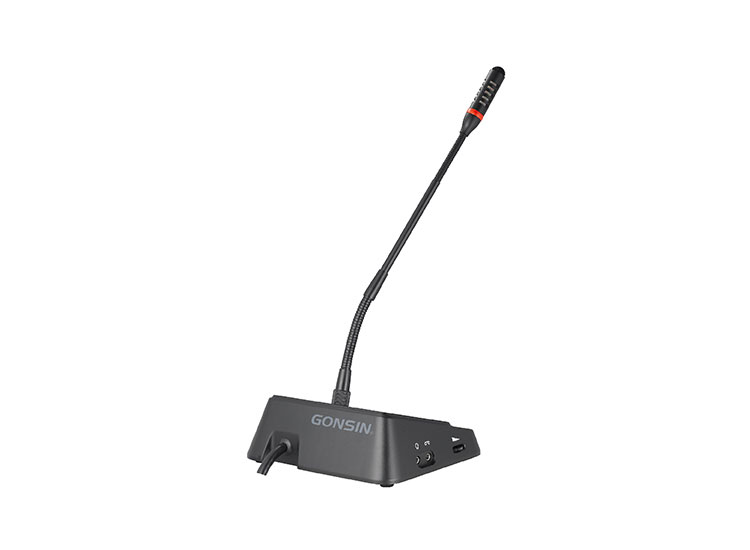

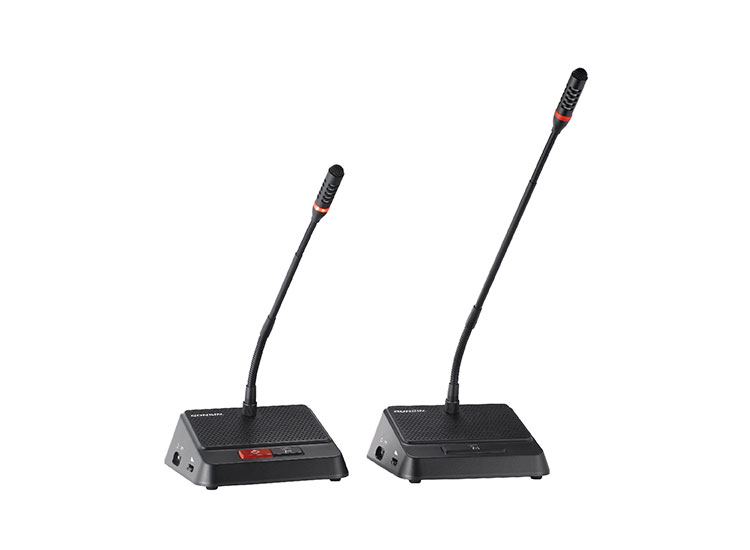

TL-3200 Desktop Digital Conference System

TL-3200 digital conference system allows the delegate to speak, request to speak and listen to the speech. Each discussion unit comes with headphone jack and volume control for the delegate to listen to the floor audio, and adjust volume level for comfortable listening. 1 to 4 delegate microphones can be actived at the same time.

Table Microphone System
Conference Room Table Microphones
Table Top Conference Meeting Microphone
Table Microphone For Conference Room
Table Microphone System
Conference Room Table Microphones
Table Top Conference Meeting Microphone
Table Microphone For Conference Room
Get A Quote
Functions
Technical Parameters
System Configuration

Functions of TL-3200 Desktop Digital Conference System

  • Highly resistant to mobile phone interference

  • Supports HD video camera tracking

  • Multiple chairman and vice-chairman units are allowed

  • Pluggable gooseneck microphone

  • Selectable microphone modes: AUTO / FIFO / OPERATOR

  • Floor audio listening via headphone or built-in loudspeaker

  • Attendance: key press and supplementary registration

  • Up to 20 chairman and vice-chairman units for one conference discussion system

  • Chairman units can be activated at any time

  • Chairman unit can override/mute all the active delegate units

  • Optional HD video camera tracking matrix, switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view

  • 4*1+1 video matrix is built in the Central Control Unit, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view

Technical Parameters of TL-3200 Desktop Digital Conference System

Mounting typeTabletop
Frequency response20Hz-20KHz
Sensitivity-46dB±4dB
THD<0.05%
Power input24V DC
Microphone lengthStandard 410 mm, Optional 310/510mm
Headphone jackMono 3.5mm
Internal loudspeaker4Ω/3W
Weight0.75 kg
Dimensions160×140×53 mm (W*D*H)
Operating temperature0~45°C
Storage temperature-20~50°C

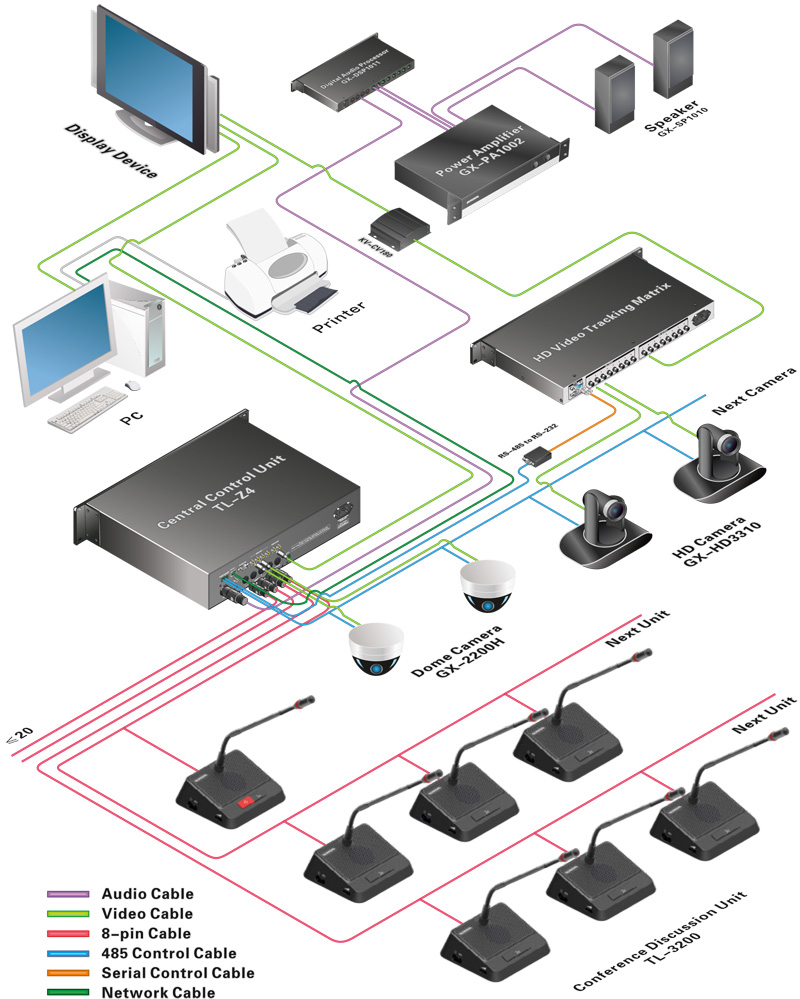

System Configuration of TL-3200 Desktop Digital Conference System

TL-3200 Desktop Digital Conference System

System Configuration Products of TL-3200 Desktop Digital Conference System
