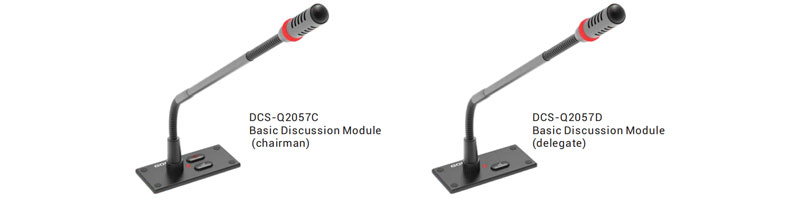

In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology
The exquisite full-metal panel design is suitable for flush mounting installation
Three-color LED to indicate the unit status (on or off)
Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.
With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.

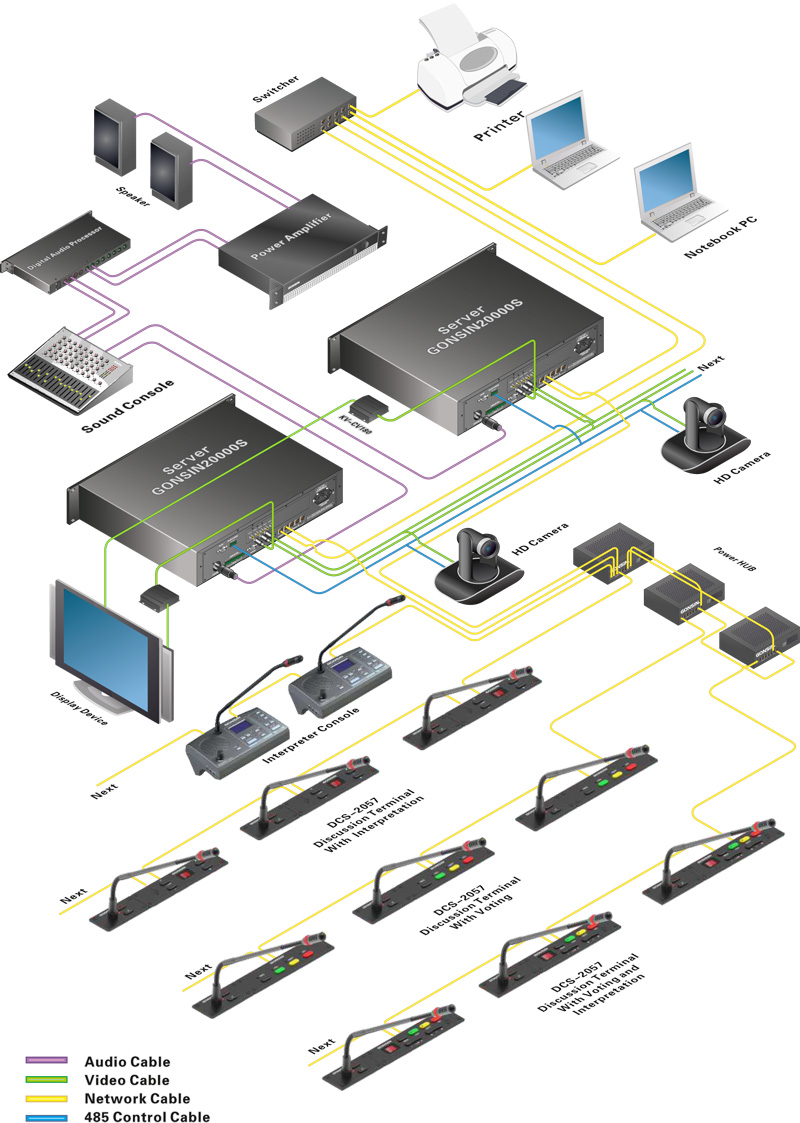

Congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.
It supports daisy-chain connection, star connection and mixed connection. The conference mic system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.
Automatic restoration function: supports hot plug.
Supports 48KHz audio sample freq, acoustic frequency response can up to 20Hz~20KHz.
AF sensitivity of each terminal (7 levels) can be adjusted separately or uniformly.
Built-in high-performance DSP digital audio processor, helps remove the useless low-frequency and avoid low-frequency acoustical shock, which better improve the sharpness of sound.
Standard electret cardioid pickup pattern microphone with lamp bezel (On or Off), rich timbre.Several kinds of soft gooseneck microphone stems for various conferences (standard: 410mm, optional: 310mm/510mm)
Pluggable gooseneck microphone stem, convenient for equipment maintenance.
Highly resistant to mobile phone interference
Loud speaker: VOX, Auto, FIFO, Operator.
VOX function: in VOX mode, the unit will be activated for user speaks; VOX sensitivity can be adjust by the server ( high, middle, low); microphone time-out is adjustable ( 20-250 seconds).
1-4 delegate unit can be used except the chairman unit
Optional HD video camera tracking matrix ,switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view
8*1+3 video matrix is built in the server, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view.
The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.
Attendance registration function: key to register, supplementary register or revocatory register.
Be able to connect with simultaneous interpretation terminal/voting terminal/voting and interpretation terminal, to extend the conference function.
Appoint any terminal as the chairman or delegate terminal. The chairman terminal has functions below, besides all functions of delegate terminal:
Chairman terminal can be activated at any time without presetting mic limit
Chairman priority button to override all active delegate terminals.
In compliance with IEC 60914 international standard
Support to connect to other 20000S products, together composing multiple big systems with different terminals

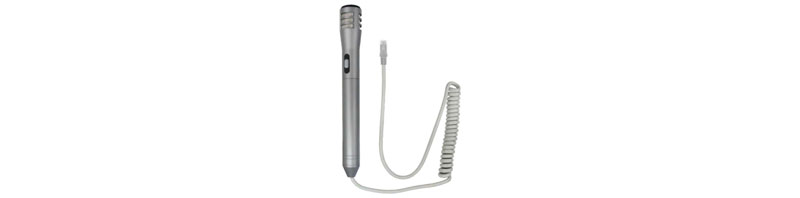

Hand-held design with full-metal microphone suits for flush mounting installation
With spring line, convenient for extension and storage
Transparent silicone button with status indicator, responds accurately and has long service life
Full digital audio technology provides CD-level sound track quality
Equipment like congress terminal, power HUB and conference server is connected by cable, convenient for construction
Support daisy-chain connection, star connection and mixed connection; break down of one extension won’t influence other extensions, and the mal-function of one attachment among the extensions won't influence the system work, securing stable work of the system
Auto restoration function: support hot plug
Support 48KHz audio sampling frequency; acoustic frequency response up to 20Hz~20KHz
Support separated adjustment of audio and sensitivity(7 levels) of the terminal; adjust the sound effect based on the on-site speaking situation
Build-in high performance DSP digital audio processor can eliminate invalid low-frequency components, improving the sound quality
Highly resistant to mobile phone interference
With one and only serial-number, the congress system supports to automatically or manually assign ID to the corresponding equipment.
Speaking mode: VOX, Auto, FIFO, Operator
In VOX mode, the microphone will be activated as users speak. VOX sensitivity (high/middle/low) and mic time-out(20-250 seconds)is adjustable.
5 delegate units can be activated at the same time(one chairman unit and 4 delegate units)
Attendance registration: key to register, supplementary register or revocatory register
Optional HD video camera tracking matrix, switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view
8*1+3 video matrix is built in the server, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view
Be able to connect with interpretation/voting/interpretation & voting terminal, carrying out extended conference function
Random delegate unit can be set as vice-chairman terminal; no limit on the number of vice-chairman terminal

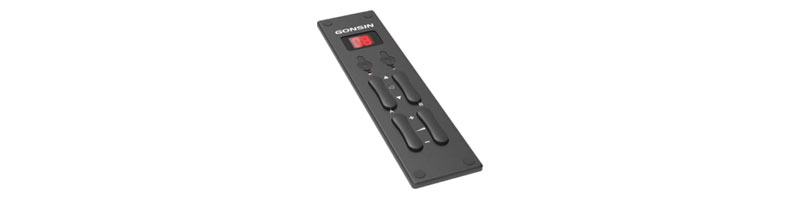

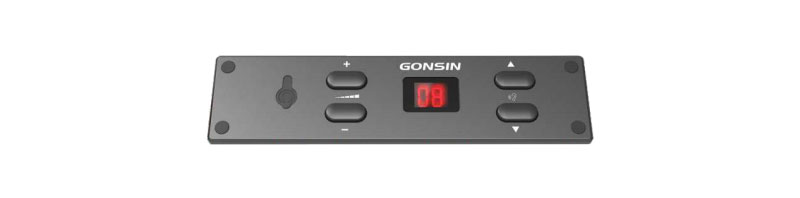

In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology
The exquisite full-metal panel design is suitable for flush mounting installation
Two digit LED display Channel number and volume.
Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.
With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.
Congress terminal, power HUB and congress server are all connected by cable. Flexible cablingreduces project workload, makes large-scale construction easier.
It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won't influence the other extensions, and the malfunction of one attachment among the extensions won't influence the system work.
Automatic restoration function: supports hot plug
Highly resistant to mobile phone interference
The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.
Be able to connect with basic discussion module/voting terminal, to extend the conference function.
Support 32 (1+31) channels simultaneous interpretation
Built-in language channel selector and adjustable volume(9 levels), press button to change channel and adjust volume.
Acoustic frequency response can up to 20Hz~20KHz.

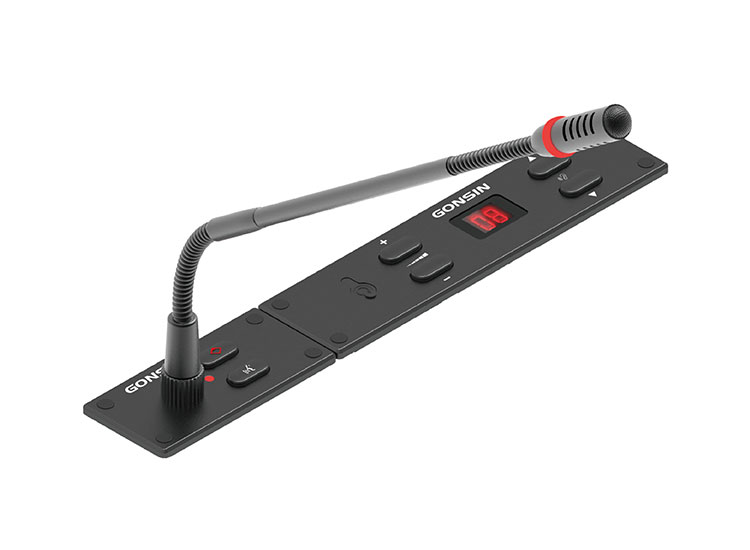

In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology
The exquisite full-metal panel design is suitable for flush mounting installation
Two digit LED display Channel number and volume.
Two independent LED to indicate the unit status (on or off)
Support two delegates use interpretation functions independently, volume and interpretation channel could be adjusted respectively.
Three-color LED to indicate the unit status (on or off)
Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.
With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.
Congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.
It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won't influence the system work.
Automatic restoration function: supports hot plug
Highly resistant to mobile phone interference
The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.
Be able to connect with basic discussion module/voting terminal, to extend the conference function.
Support 32 (1+31) channels simultaneous interpretation
Built-in language channel selector and adjustable volume(9 levels), press button to change channel and adjust volume.
Acoustic frequency response can up to 20Hz~20KHz

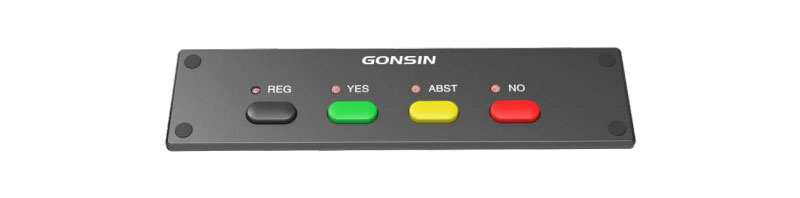

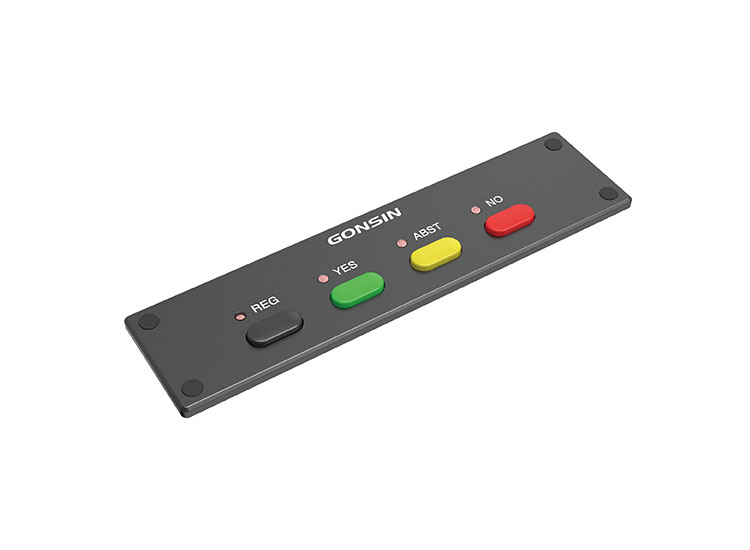

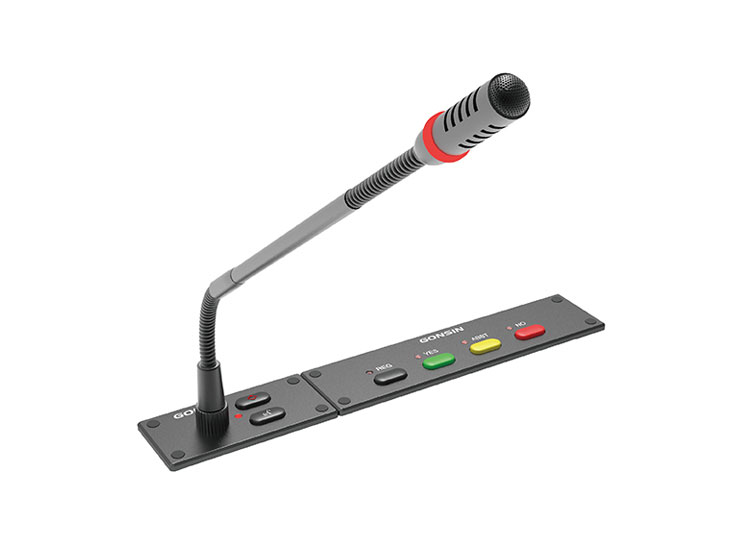

In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology
The exquisite full-metal panel design is suitable for flush mounting installation
Three-color LED to indicate the unit status (on or off)
Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.
Congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.
It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.
Automatic restoration function: supports hot plug.
The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.
Attendance registration function: key to register, supplementary register or revocatory register.
Voting: delegate can vote for Yes, No, Abstain. Vote counting and result display are enabled automatically by PC
- Single-choice and multiple-choice voting
- First key-press and final key-press voting
Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election’
Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software.
Utilize data encryption and anti-restoration technique to ensure information security.
Customized voting options and voting methods, support customized language mode or display screen
Be able to connect with basic discussion module/interpretation terminal, to extend the conference function.

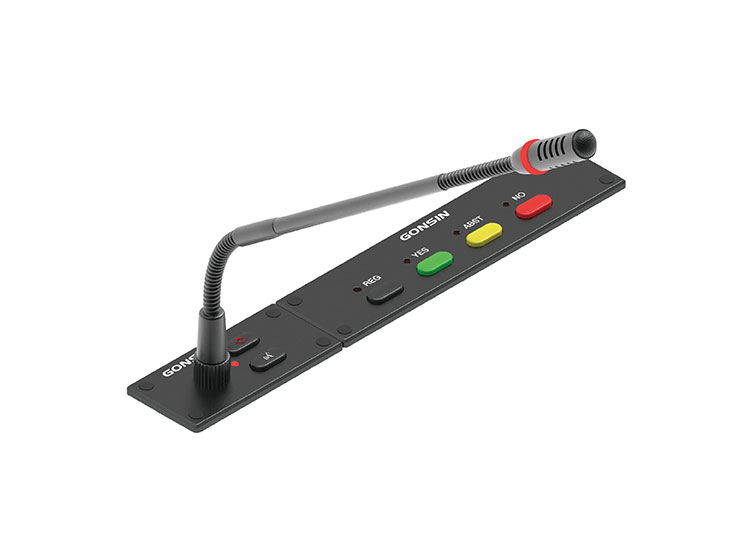

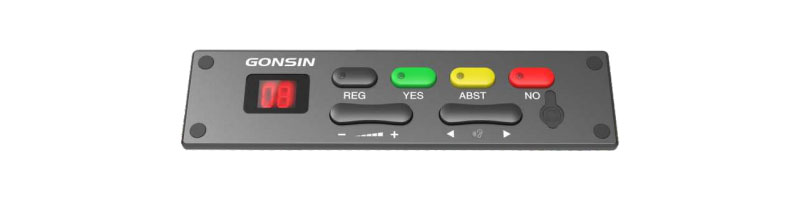

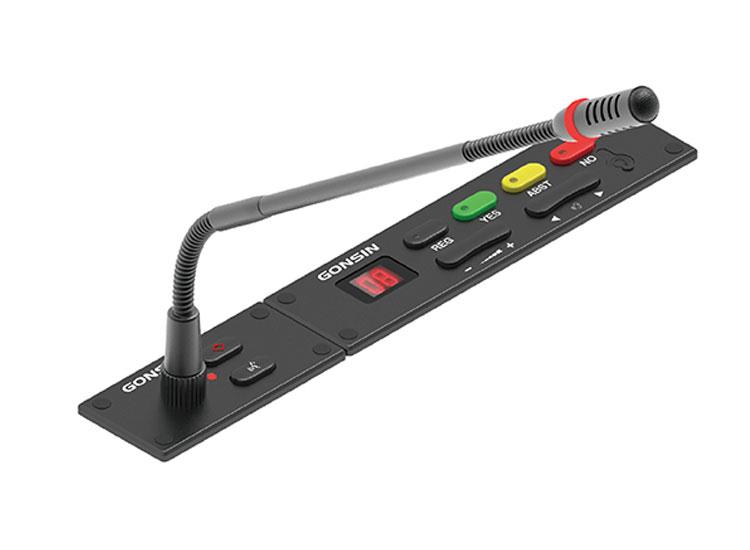

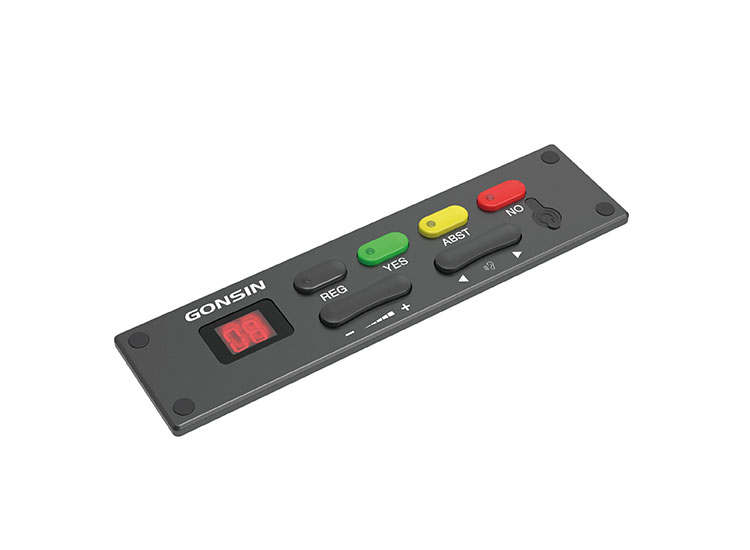

In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology
The exquisite full-metal panel design is suitable for flush mounting installation
Two digit LED display Channel number and volume.
Two independent LED to indicate the unit status (on or off)
Physical Mic button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.
With full digital audio technology, built-in high-speed CPU and high-performance DSP digital audio processor.
Congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.
It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.
Automatic restoration function: supports hot plug.
Highly resistant to mobile phone interference
The serial-number is one and only, the congress system supports automatically or manually assign ID to the corresponding equipment.
Attendance registration function: key to register, supplementary register or revocatory register.
Voting: delegate can vote for Yes, No, Abstain. Vote counting and result display are enabled automatically by PC
- Single-choice and multiple-choice voting
- First key-press and final key-press voting
Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election’
Evaluation: four buttons to evaluate. It comes with four choices "Good", "Fair", "Poor", "Abstain", or the customized evaluation way by software.
Utilize data encryption and anti-restoration technique to ensure information security.
Customized voting options and voting methods, support customized language mode or display screen
Support 32 (1+31) channels simultaneous interpretation
Built-in language channel selector and adjustable volume (9 levels), press button to change channel and adjust volume.
Acoustic frequency response can up to 20Hz~20KHz.
Be able to connect with basic discussion module, to extend the conference function.

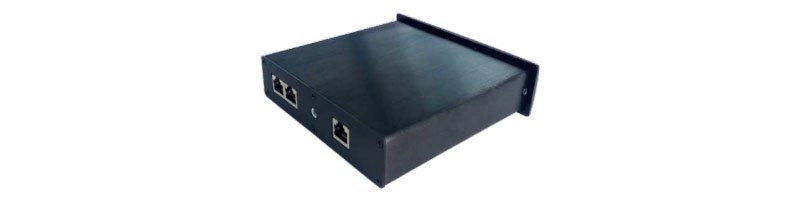

In compliance with IEC60914 international standard, utilize digital audio processing and transmission technology
Cooperate with basic discussion module, one connector could connect one discussion module, supply power for the discussion module
Realize the communication between basic discussion module and the server
Connector, basic discussion module, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.
It supports daisy-chain connection, star connection and mixed connection. The system is highly stable and reliable. The break down of one extension won’t influence the other extensions, and the malfunction of one attachment among the extensions won’t influence the system work.
Automatic restoration function: supports hot plug.
When there is only basic discussion module, it requires the connectors; when the basic discussion, module is extended to other terminal, it do not require the connector.
