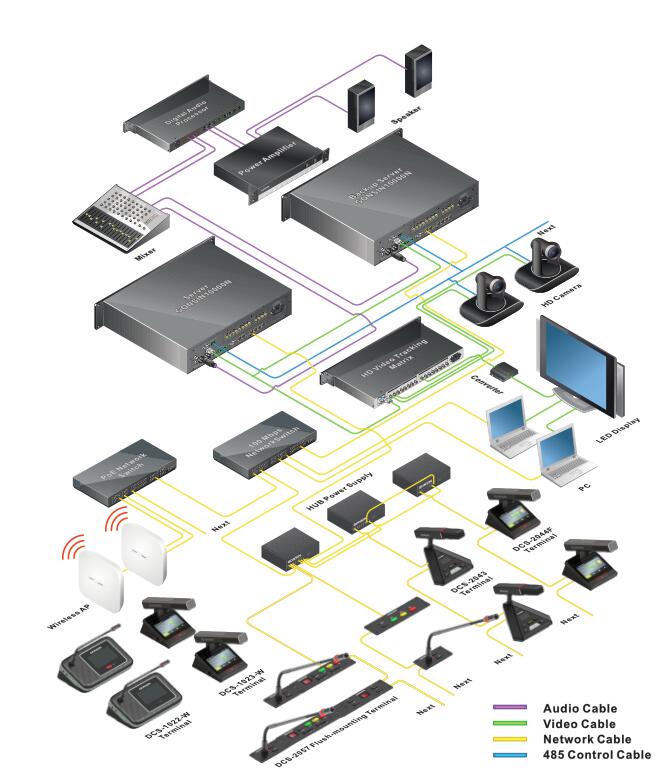

10000N Series Seamless Compatible Wired and Wireless Conference System

• With wired and wireless seamless compatible technology, wired conference terminals and wireless conference terminals can be mixed into the same conference server for unified management, data intercommunication, and meet the needs of different users

• Multiple backup mechanisms ensure the safe, stable and reliable operation of the system, and ensure that the meeting goes on smoothly without being interrupted, satisfying the stringent requirements of high-end meetings for equipment

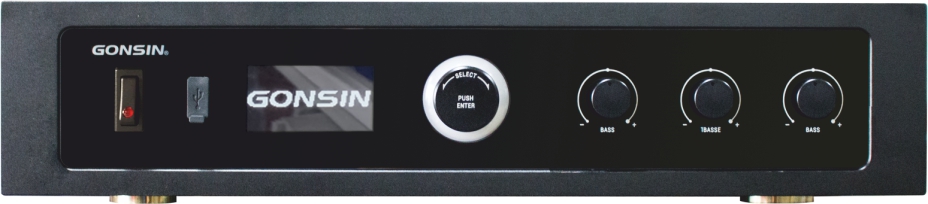

      1. Support dual-server hot stand-by function. When the current server doesn't work, it will automatically switch to the stand-by server

      2. Support dual-server hot stand-by function of the management software. When the current computer doesn't work, it will automatically switch to the stand-by computer

      3. With a dual-chain backup function of the conference terminal. When the main chain fails, it can be switched to the backup chain for continued use (configured with Rectangular Columnar Short Microphone)

• Support the application of splitting and merging of the conference room, with 4 channels of audio grouping output, can be split into an independent system using in multiple meeting rooms, or can be used at the same time as the whole system, which is convenient and flexible

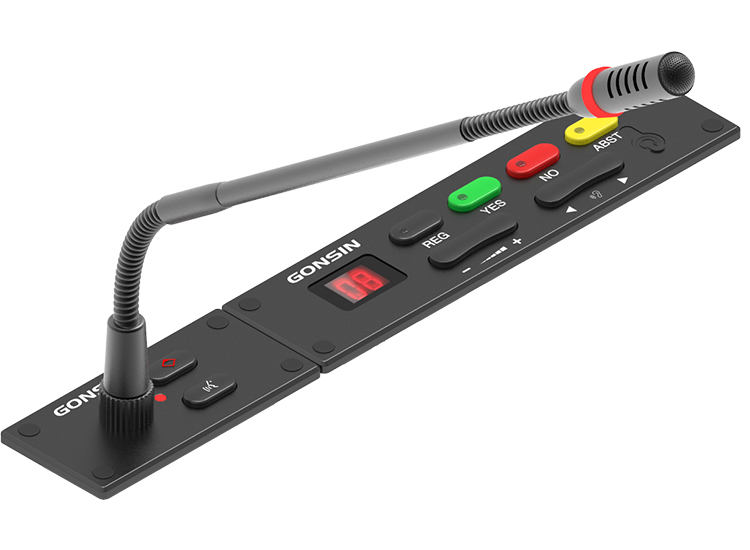

• The wired conference terminal supports star connection, hand-in-hand connection and mixed connection, and all devices are connected by network cables, which is convenient for construction and management

• The wireless conference terminal supports 2.4G/5.2G/5.8G triple-band communication to ensure system stability

• With Automatic Speech Recognition System, it can realize the transcription of speech into text by role, and generate meeting minutes, effectively reducing the workload of meeting affairs and improving efficiency

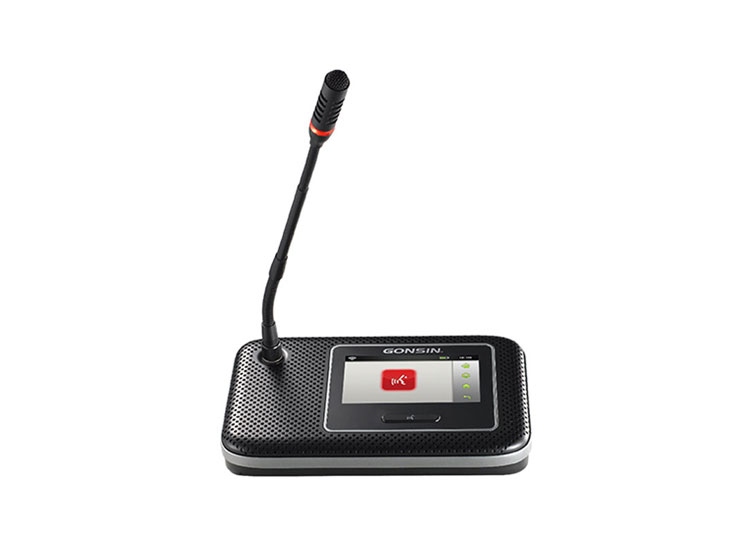

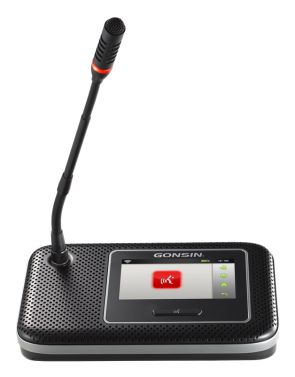

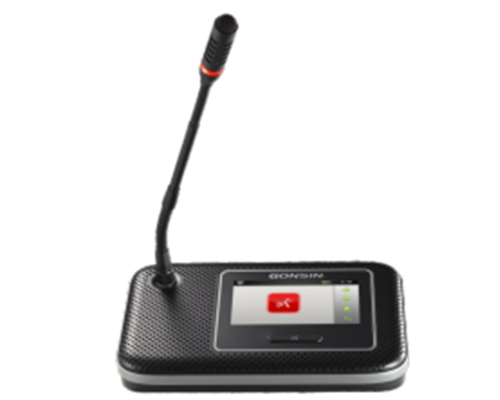

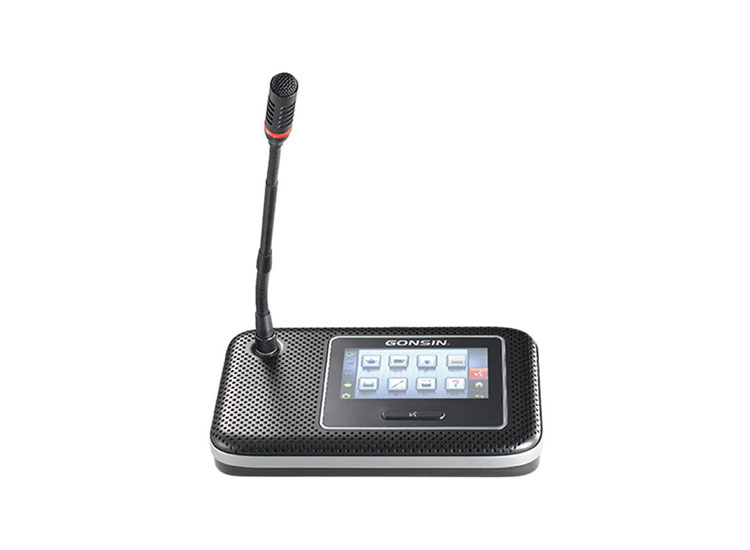

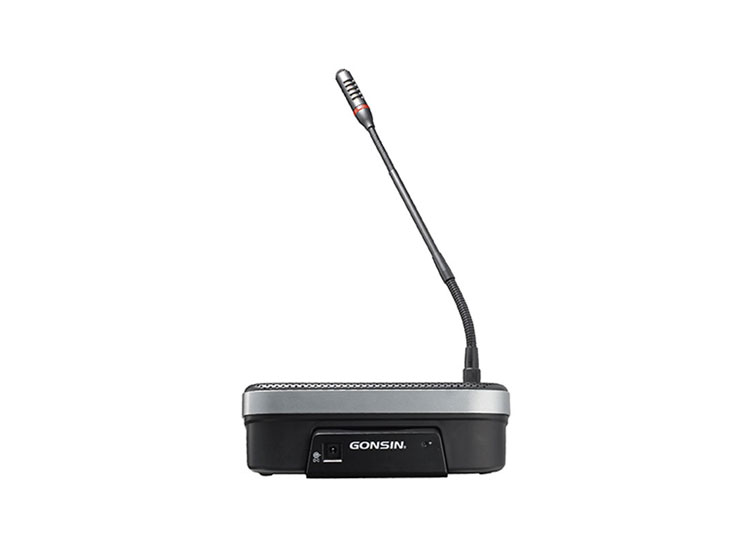

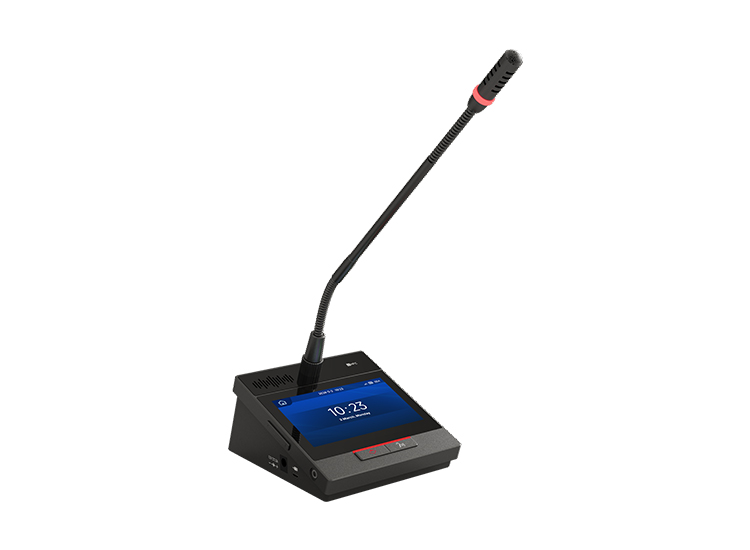

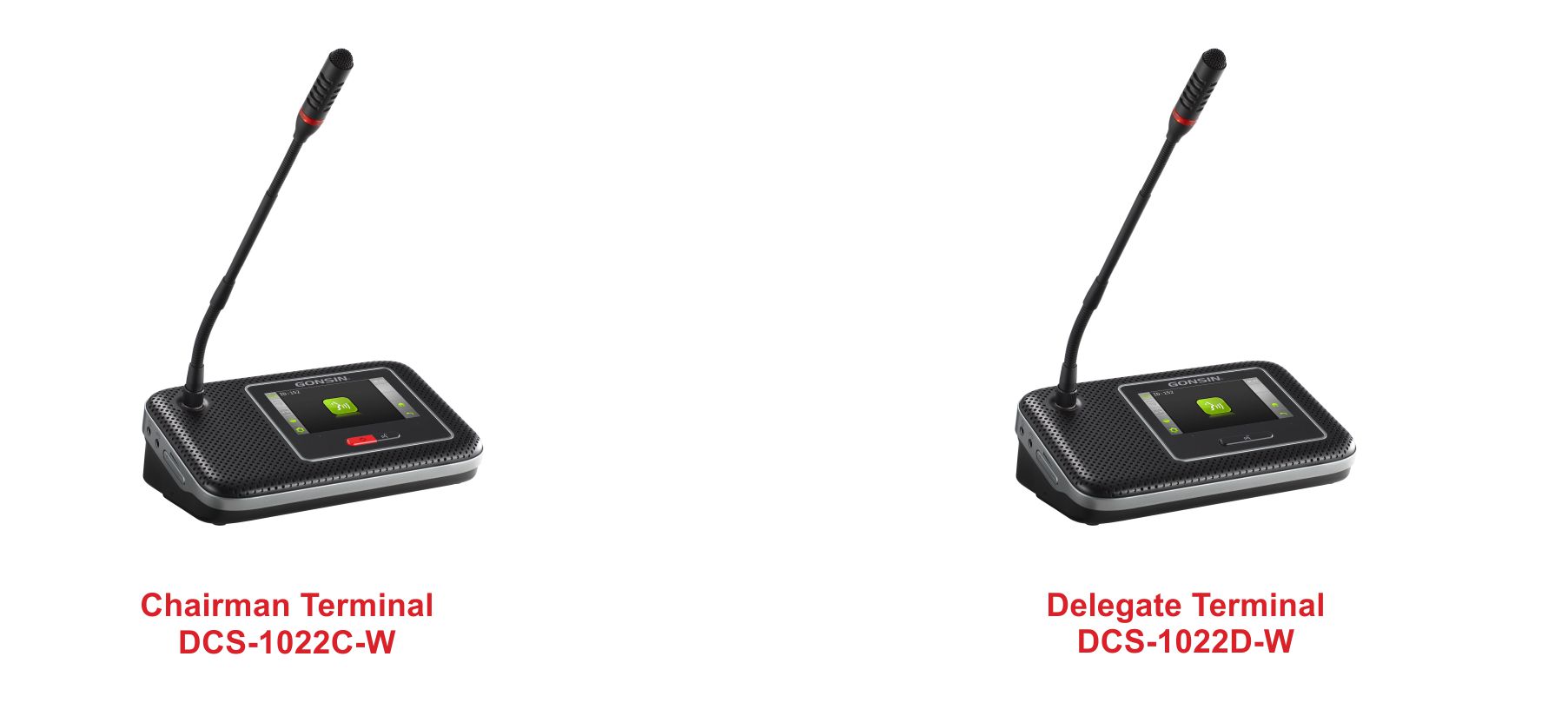

Basic Functions of Wireless Congress Terminal DCS-1022-W

• Confirm to IEC 60914 international standard

• Stylish and interactive graphical user interface. Metal material, high-end texture

• With full digital audio technology, built-in high-speed CPU, and high-performance DSP digital audio  processor

• Adopt TIFF, HI-FI, low delay transmission technology, support 48kHz audio sample freq

• AF sensitivity of each terminal (5 levels) can be adjusted separately or uniformly

• Built-in high-performance DSP digital audio processor helps remove the useless low-frequency and  avoid low-frequency acoustical shock, which better improves the sharpness of sound

• 4.3-inch TFT true color LCD touch screen to display UI interface, conference information, microphone switch status, and battery capacity. The language supports Chinese/ English

• LCD touch screen with accurate response and long service life, supports full-size touch operation and  functions setting: LCD contrast, volume, SSID network setting, language etc

• Multiplexing switch terminal button   -Short press for switching on/off terminal - Long press for turning on/off terminal

• Battery level detection, Low voltage warning, and automatic shutdown protection function; terminal  automatic turn-off without signal communication in ten minutes

• In compliance with IEEE 802.11n network standard, adopt WIFI wireless communication technology.

• Adopt 128-bit AES encryption technology and support WEP/WPA/WPA2 wireless security technology,  ensuring the privacy of meetings and avoiding eavesdropping as well as malicious interference

• Support 2.4G/5.2G/5.8G triple-band wireless communication, choosing the secure wireless channel  to ensure the reliability of the wireless connection

• Standard electret cardioid pickup pattern microphone with lamp bezel (On or Off), rich timbre. Three  kinds of soft gooseneck microphone stem for various conferences (standard: 310mm, optional:  410mm/510mm)

• Pluggable gooseneck microphone stem, convenient for equipment maintenance

• The terminal supports call service function( tea, paper, pen, help etc.)

• Under normal working conditions, the continuous speaking time of the wireless terminal is 8.5 hours (monitoring is turned on); in the lowest power consumption state, the standby time is 14 hours

• Rechargeable lithium batteries for centralized charging, charging cabinet could charge up to  batteries;(MAX 10 lithium batteries at one time.)

• Highly resistant to mobile phone interference

• Built-in headphone jack (3.5 mm) and recorder interface (3.5 mm)

• Built-in loudspeakers (2W) and adjustable volume（7 levels）. Reasonable tune trope design, outputs clear and loud sound. Adjusting volume through screen touch is available

• Loudspeaker: VOX, Auto, FIFO, Operator

• Speaking approval mode: The delegate terminal can not speak without the approval from the chairman terminal. There is no speaking limit for chairman's terminal

• 1-3 delegate units can be used except the chairman unit

• Attendance registration function: the key to register, plug-in card to register(according to number), plug-in card to register(non-according number), supplementary register, or revocatory register. Attendance is counted automatically and the result can be displayed on the congress terminal

• Optional HD video camera tracking matrix, switcher, or HD camera, which can realize HD automatic  camera tracking, supporting the preset overall view

• 8×1+3 video matrix is built into the server, and a standard-definition video conference camera is  selected, which can realize the automatic camera tracking function of standard definition and  support a preset overall view

• Infrared automatic video camera tracking is optional(HD, MAX 8 cameras )

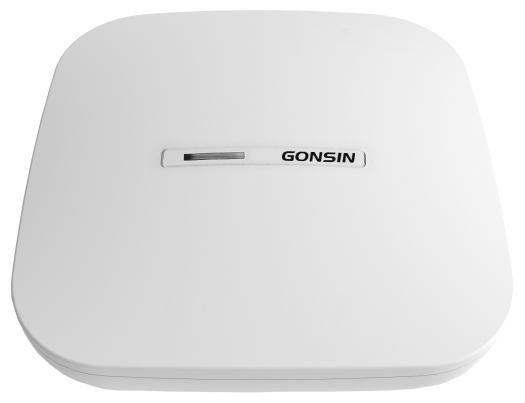

• Maximally support 128 wireless APs to achieve greater wireless coverage area and terminal  seamless roaming

• Support SSID WiFi settings, to ensure non-interference when operating several systems within  the same environment

• The serial number is one and only, the conference microphone system supports automatically or manually assign an ID to the corresponding equipment

• Appoint any delegate terminal as the vice-chairman terminal




The chairman terminal has the below functions besides all functions of the delegate terminal.

• Chairman terminal can be activated at any time without presetting mic limit

• Chairman priority button to override all active delegate terminals

• Could allow the delegate terminal to speak or not

DCS-1022I-W( Discussion Terminal with Interpretation)  has below functions besides functions of DCS-1022-W

• Support 6 channels wireless simultaneous interpretation

• As receiving interpretation signal, the terminal supports volume  adjustment

• Congress terminals use a 4.3-inch TFT true color LCD touch screen

• Screen touch for selecting interpretation channels

• Acoustic frequency response can be up to 20Hz～20kHz

DCS-1022V-W( Discussion Terminal with Voting) has below function besides  functions of DCS-1022-W

Offline functions without PC/software control

Attendance registration and voting can be run by the chairman terminal, without PC control, the  chairman terminal can initiate registration, voting, quick election (election one in five),  evaluation and etc

Extended functions with PC/software control

• Voting: YES/ABST /NO. Voting result can be shown on the  congress terminal by automatic counting  -Single-choice and multiple-choice voting  -First key-press effective voting  -Voting types and modes can be preset  -Voting result is displayed as pie charts or text

• Election: elect one or more out of multiple candidates, with  'competitive election', 'single-candidate election' and 'quick  election( elect one from five)'

• Evaluation: Satisfaction, quite satisfaction, dissatisfaction and  Abstain. Evaluation mode is set by the software

• Utilize data encryption and anti-restoration technique to  ensure information security

• Customized voting options and voting methods, support  customized language mode or display screen

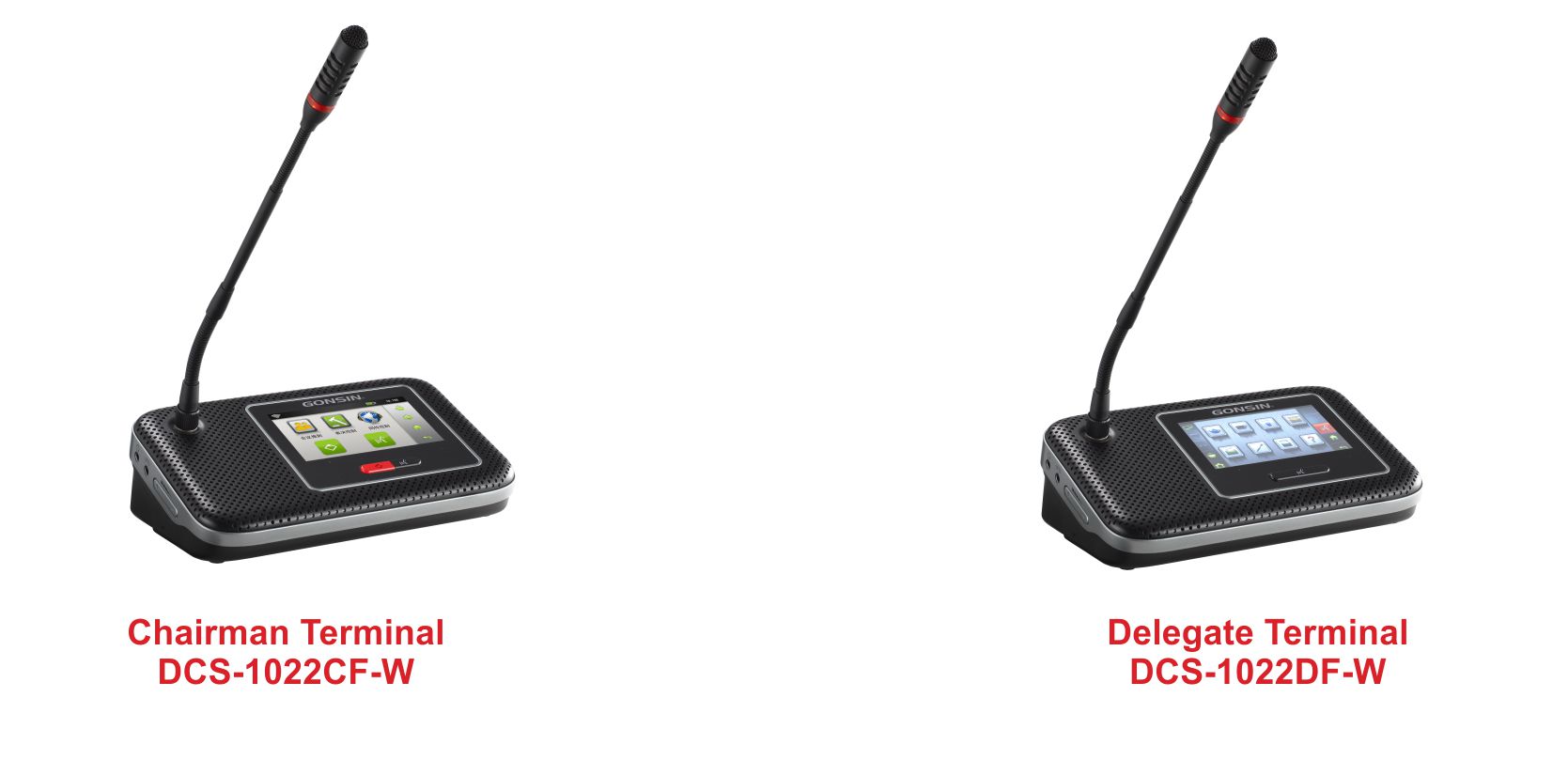

DCS-1022F-W( Discussion Terminal with Voting and Interpretation)  has below function besides functions of DCS-1022-W

• Support 6 channels wireless simultaneous interpretation

• As receiving interpretation signal, terminal supports volume  adjustment

• Congress terminals use 4.3-inch TFT true color LCD touch screen

• Screen touch for selecting interpretation channels

• Acoustic frequency response can be up to 20Hz 20kHz

Offline functions without PC/software control

Attendance registration and voting can be run by the chairman  terminal, without PC control, the chairman terminal can initiate  registration, voting, quick election (election one in five),  evaluation and etc

Extended functions with PC/software control

• Voting: YES/ABST /NO. Voting result can be shown on the congress terminal by automatic  counting  -Single-choice and multiple-choice voting  -First key-press effective voting  -Voting types and modes can be preset  -Voting result is displayed as pie charts or text

• Election: elect one or more out of multiple candidates, with 'competitive election', 'single- candidate election' and 'quick election( elect one from five)'

• Evaluation: Satisfaction, quite satisfaction, dissatisfaction and Abstain. Evaluation mode is set by  the software

• Utilize data encryption and anti-restoration technique to ensure information security.

• Customized voting options and voting methods, support customized language mode or display screen

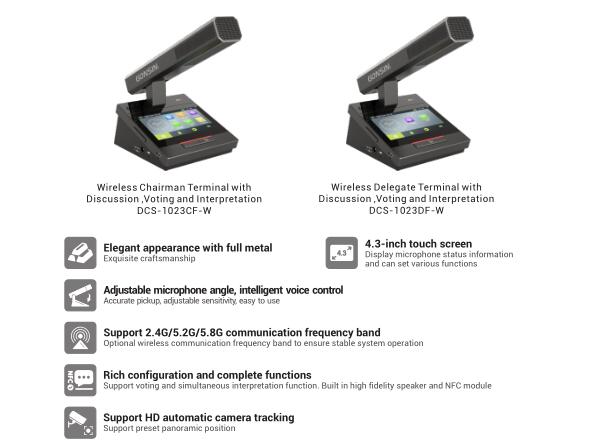

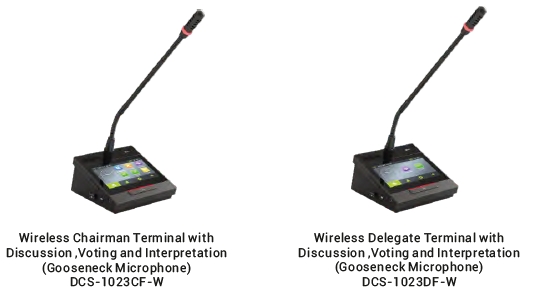

Wireless Discussion Terminal with Voting and Interpretation

Basic Functions of Wireless Discussion Terminal with Voting and Interpretation

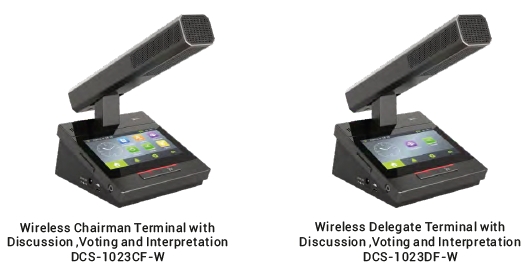

DCS-1023CF-W/DCS-1023DF-W

• The terminal adopts metal panel and anti fingerprint lens, with high-end texture, which is fashionable and elegant

• Rectangular columnar short microphone：The terminal adopts metal material with fixed rectangular columnar short microphone design, stable connection with the steam and the base; with status indicator, users can easy to see the working status of the terminal

• Gooseneck microphone：The gooseneck terminal adopts a pluggable microphone stem, which can be disassembled during the non-meeting period, and is convenient for equipment maintenance. It adopts electret cardioid microphone with indicating light ring and dual-hose of various lengths. (standard: 410mm, optional: 310mm/510mm)


• 4.3-inch touch screen can display the information of clock, microphone status, battery capacity; Language supports Chinese/ English; it can set the contrast, volume, network setting, language and other functions of the terminal

• The built-in NFC module supports short-range wireless communication with NFC devices and NFC cards

• In compliance with IEEE 802.11n network standard, adopt WIFI wireless communication technology.

• Support 2.4G/5.2G/5.8G triple-band wireless communication, choosing the secure wireless channel to ensure the reliability of wireless connection

• Adopt all-digital audio technology, use non-compressed, high-fidelity, low-latency transmission technology, support 48KHz audio sampling rate

• Adopt 128 bit AES encryption technology and support WEP/WPA/WPA2 wireless security technology, ensuring the privacy of meetings and avoiding eavesdrop as well as malicious interference

• Support SSID WiFi-settings, to ensure non-interference when operating several systems within the same environment

• The serial-number is one and only, the conference system supports automatically or manually assign ID to the corresponding equipment

• With Automatic Speech Recognition System, it can realize the function of voice transcription, and realize the meeting recording in multiple ways

• The audio and sensitivity of each terminal can be adjusted independently or uniformly, and the sound effect can be adjusted according to the on-site speech situation until the perfect effect is achieved

• Built-in high-speed DSP digital audio processor, it can help remove the useless low-frequency and avoid low-frequency acoustical shock, which better improve the sharpness of sound

• Intelligent power management mechanism, with power detection, low-voltage warning, energy-saving management, automatic shutdown protection functions

• Support charging box charging mode, built-in rechargeable lithium battery, terminal battery duration (speaking state) ≥ 17 hours

• Support DC power charging mode, using 12V/2A DC charging

• Multiplexing switch terminal button, short press for switching on/off terminal; long press for turning on/off terminal

• The terminal supports call service function( tea, paper, pen, help and etc), requesting service from service background

• There is a two-color indicator light above the speaking button to indicate the current working status of the terminal

• With USB interface, support device data communication function

• Built-in 8Ω/2W high-fidelity speaker

• Comes with Ø3.5 mm headphone jack, adjustable volume

• Attendance registration function: key to register, plug-in card to register(according number),plug-in card to register(non-according number),supplementary register or revocatory register. Attendance is counted automatically and the result can be displayed on the congress terminal

• Automatic camera tracking function ,support HD automatic camera tracking, and preset overall view

• Discussion function: support VOX, Auto, FIFO, Operator, Request and PTT

        1. VOX function: in VOX mode, the unit will be activated for user speaks; VOX sensitivity can be adjust by the server; microphone time-out is adjustable

        2. Auto function: Only the number of microphones limited by the system can be activated. When the number of open microphones is greater than the system limit, press the speaking button, the microphone cannot be turned on, you need to turn off the microphones that have been turned on, and then the microphone can be turned on by pressing the button

        3. FIFO function: When the number of open microphones is greater than the system limit, press the speak button to turn on and automatically turn off the earliest open microphone

        4. Operator function: When the number of open microphones is greater than the limit, press the speak button to enter the application waiting state. After the opened microphones are closed, the applied microphones will be opened automatically

        5. Request function: In Request, press the speak button and the microphone turns on and release the speech button and the microphone will be turned off

        6. PTT function: the delegate send request-to-speak by terminal, and can speak upon chairman approval. The chairman terminal can be activated anytime without approval

• Voting function:

        1. Offline functions without PC/software control: Attendance registration and voting can be run by the chairman terminal, without PC control, the chairman terminal can initiate registration, voting, quick election (election one in five) , evaluation and etc

        2. Extended functions with PC/software control:

Voting: YES/ABST /NO . Voting result can be shown on the congress terminal by automatic counting

-Single-choice and multiple-choice voting

-First key-press effective voting

-Voting types and modes can be preset

 -Voting result is displayed as pie charts or text

• Election: elect one or more out of multiple candidates, with 'competitive election', 'single-candidate election' and 'quick election( elect one from five)'

• Evaluation: Satisfaction, quite satisfaction, dissatisfaction and Abstain. Evaluation mode is set by the software

• Utilize data encryption and anti-restoration technique to ensure information security

• Customized voting options and voting methods, support customized language mode or display screen

• Simultaneous interpretation function:

• Simultaneous interpretation of 6 (1+5) channels can be realized, and the simultaneous interpretation list and earphone volume adjustment can be displayed through the touch screen (the earphone must be inserted to select the language channel)

• The frequency response of the simultaneous interpreting channel can reach 20Hz~ 20kHz

• It can appoint any delegate terminal as the chairman and the vice-chairman terminal. The chairman terminal has below functions besides the all functions of the delegate terminal.

• Chairman terminal can be activated at any time without presetting mic limit

• Chairman priority button to override all active delegate terminals

• Could allow the delegate terminal to speak or not

• The number of chairman and vice-chairman terminals in the system is not limited

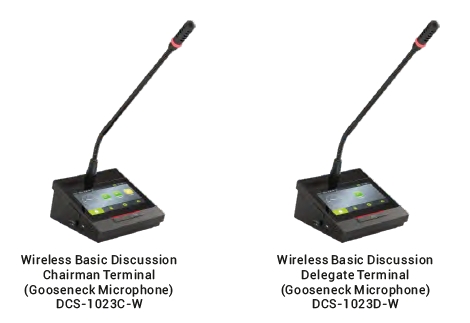

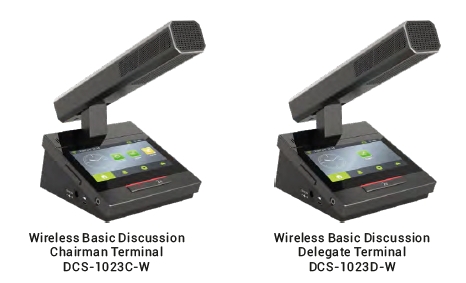

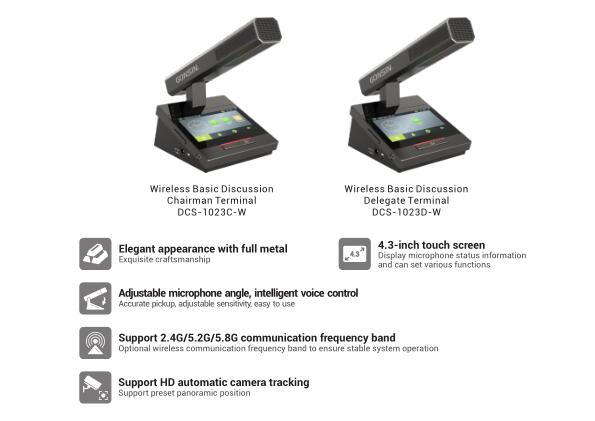

Basic Functions of Wireless Basic Discussion Chairman Terminal

DCS-1023C-W/DCS-1023D-W

• The terminal adopts metal panel and anti fingerprint lens, with high-end texture, which is fashionable and elegant

• Rectangular columnar short microphone：The terminal adopts metal material with fixed rectangular columnar short microphone design, stable connection with the steam and the base; with status indicator, users can easy to see the working status of the terminal

• Gooseneck microphone：The gooseneck terminal adopts a pluggable microphone stem, which can be disassembled during the non-meeting period, and is convenient for equipment maintenance. It adopts electret cardioid microphone with indicating light ring and dual-hose of various lengths. (standard: 410mm, optional: 310mm/510mm)

• 4.3-inch touch screen can display the information of clock, microphone status, battery capacity; Language supports Chinese/ English; it can set the contrast, volume, network setting, language and other functions of the terminal

• In compliance with IEEE 802.11n network standard, adopt WIFI wireless communication technology.

• Support 2.4G/5.2G/5.8G triple-band wireless communication, choosing the secure wireless channel to ensure the reliability of wireless connection

• Adopt all-digital audio technology, use non-compressed, high-fidelity, low-latency transmission technology, support 48KHz audio sampling rate

• Adopt 128 bit AES encryption technology and support WEP/WPA/WPA2 wireless security technology, ensuring the privacy of meetings and avoiding eavesdrop as well as malicious interference

• Support SSID WiFi-settings, to ensure non-interference when operating several systems within the same environment

• The serial-number is one and only, the conference system supports automatically or manually assign ID to the corresponding equipment

• With Automatic Speech Recognition System, it can realize the function of voice transcription, and realize the meeting recording in multiple ways

• The audio and sensitivity of each terminal can be adjusted independently or uniformly, and the sound effect can be adjusted according to the on-site speech situation until the perfect effect is achieved

• Built-in high-speed DSP digital audio processor, it can help remove the useless low-frequency and avoid low-frequency acoustical shock, which better improve the sharpness of sound

• Intelligent power management mechanism, with power detection, low-voltage warning, energy-saving management, automatic shutdown protection functions

• Support charging box charging mode, built-in rechargeable lithium battery, terminal battery duration (speaking state) ≥ 17 hours

• Support DC power charging mode, using 12V/2A DC charging

• Multiplexing switch terminal button, short press for switching on/off terminal; long press for turning on/off terminal

• The terminal supports call service function( tea, paper, pen, help and etc), requesting service from service background

• There is a two-color indicator light above the speaking button to indicate the current working status of the terminal

• With USB interface, support device data communication function

• Built-in 8Ω/2W high-fidelity speaker

• Comes with Ø3.5 mm headphone jack, adjustable volume

• Attendance registration function: key to register, supplementary register or revocatory register. Attendance is counted automatically and the result can be displayed on the congress terminal

• Automatic camera tracking function ,support HD automatic camera tracking, and preset overall view

• Discussion function: support VOX, Auto, FIFO, Operator, Request and PTT

        1. VOX function: in VOX mode, the unit will be activated for user speaks; VOX sensitivity can be adjust by the server; microphone time-out is adjustable

        2. Auto function: Only the number of microphones limited by the system can be activated. When the number of open microphones is greater than the system limit, press the speaking button, the microphone cannot be turned on, you need to turn off the microphones that have been turned on, and then the microphone can be turned on by pressing the button.

        3. FIFO function: When the number of open microphones is greater than the system limit, press the speak button to turn on and automatically turn off the earliest open microphone

        4. Operator function: When the number of open microphones is greater than the limit, press the speak button to enter the application waiting state. After the opened microphones are closed, the applied microphones will be opened automatically

        5. Request function: In Request, press the speak button and the microphone turns on and release the speech button and the microphone will be turned off

        6. PTT function: the delegate send request-to-speak by terminal, and can speak upon chairman approval. The chairman terminal can be activated anytime without approval

It can appoint any delegate terminal as the chairman and the vice-chairman terminal. The chairman terminal has below functions besides the all functions of the delegate terminal.

• Chairman terminal can be activated at any time without presetting mic limit

• Chairman priority button to override all active delegate terminals

• Could allow the delegate terminal to speak or not

• The number of chairman and vice-chairman terminals in the system is not limited

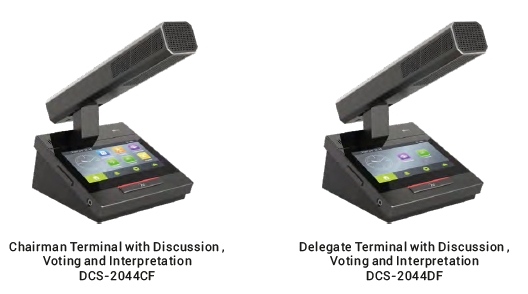

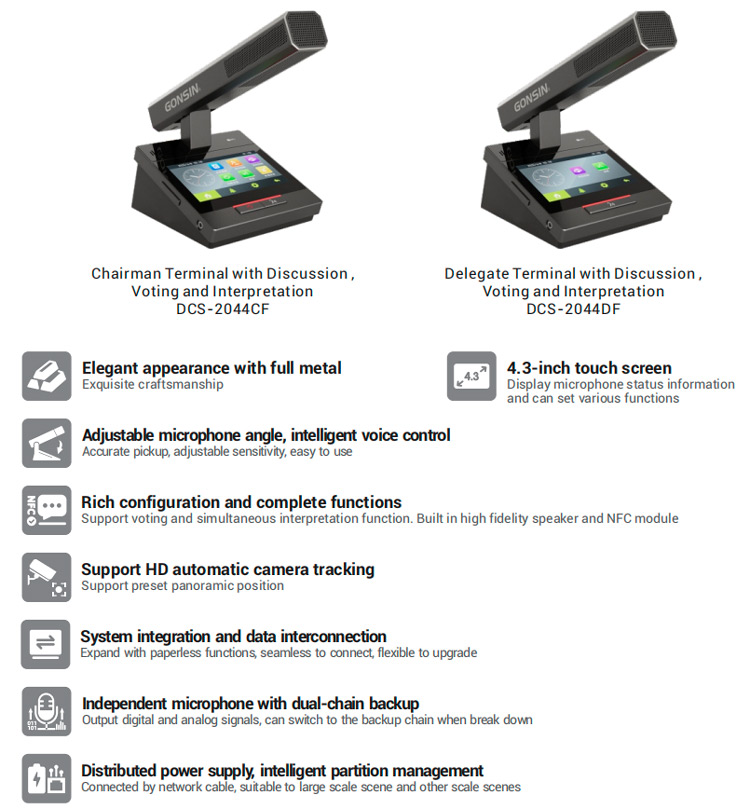

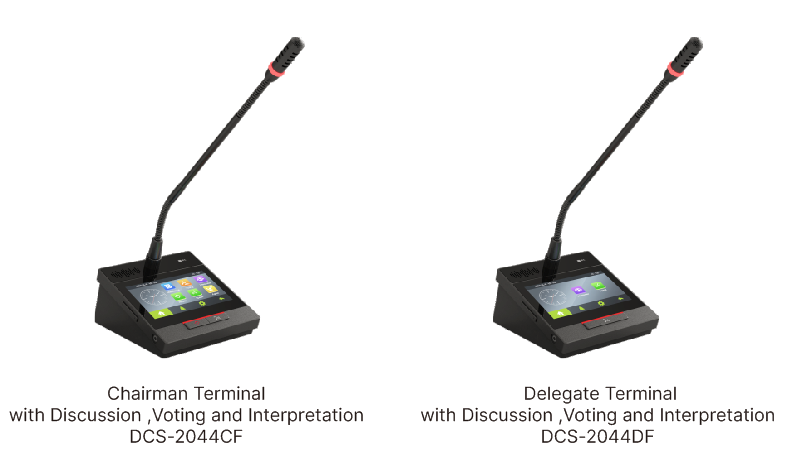

Discussion Terminal with Voting and Interpretation DCS-2044CF/DCS-2044DF

Basic Functions

• The terminal adopts metal panel and anti fingerprint lens, with high-end texture, which is fashionable and elegant.

• Rectangular columnar short microphone: The terminal adopts metal material with a fixed rectangular columnar short microphone design, stable connection with the steam and the base; with status indicator, users can easy to see the working status of the terminal.

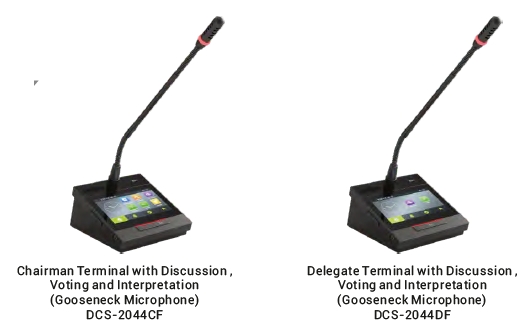

• Gooseneck Microphone: The gooseneck terminal (designated model) adopts a pluggable microphone stem, which can be disassembled during the non-meeting period, and is convenient for equipment maintenance. It adopts electret cardioid microphone with indicating light ring and dual-hose of various lengths.(standard: 410mm, optional: 310mm/510mm)

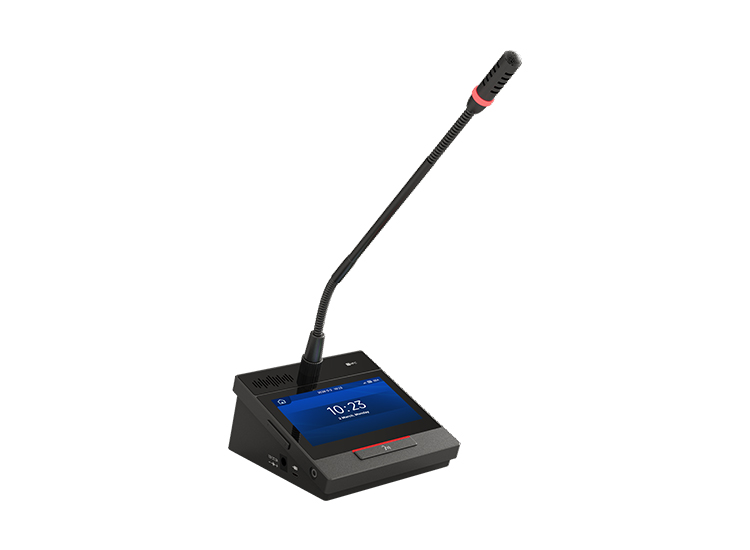

• 4.3-inch touch screen can display the information of clock, microphone status, battery capacity; Language supports Chinese/ English; it can set the contrast, volume, network setting, language and other functions of the terminal.

• The built-in NFC module supports short-range wireless communication with NFC devices and NFC cards.

• With Automatic Speech Recognition System, it can realize the function of voice transcription, and realize the meeting recording in multiple ways.

• The serial-number is one and only, the conference system supports automatically or manually assign ID to the corresponding equipment.

• With full digital audio technology, built-in high-performance CPU core processor, Built-in high-speed DSP digital audio processor, it can help remove the useless low-frequency and avoid low-frequency acoustical shock, which better improve the sharpness of sound.

• Supports 48kHz audio sample freq, acoustic frequency response can be up to 20Hz~20kHz.

• The audio and sensitivity of each terminal can be adjusted independently or uniformly, and the sound effect can be adjusted according to the on-site speech situation until the perfect effect is achieved.

• The main link equipment such as congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.

• It supports daisy-chain connection, star connection and mixed connection. The break down of one extension won't influence the other extensions, and the malfunction of one attachment among the extensions won't influence the system work.

• Rectangular columnar short microphone has dual-chain backups function: with independent microphone digital signal output and analog signal output, when the main link fails, it can be switched to the backup link to ensure the system's normal operation.

• The backup chain of rectangular columnar short microphone connects with XLR male (48V phantom power supply).

• The type of rectangular columnar short microphone is polyphonic head electre.

• Physical microphone button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.

• There is a two-color indicator light above the speaking button to indicate the current working status of the terminal.

• Comes with Ø3.5 mm headphone jack, adjustable volume.

• Built-in 8Ω/2W high-fidelity loudspeaker.

• The terminal connection line has an anti-drop design and the terminal is bottom mounted, which supports hidden or open installation, to make the desktop clearer and tidier.

• Automatic restoration function: supports hot plug.

• Attendance registration function: key to register, plug-in card to register (according number), plug-in card to register(non-according number), supplementary register or revocatory register. Attendance is counted automatically and the result can be displayed on the congress terminal.

• Automatic camera tracking function, support HD automatic camera tracking, and preset overall view.

• Discussion function: support VOX, Auto, FIFO, Operator, Request and PTT.

1. VOX function: in VOX mode, the unit will be activated for user speaks; VOX sensitivity can be adjust by the server; microphone time-out is adjustable.

2. Auto function: Only the number of microphones limited by the system can be activated. When the number of open microphones is greater than the system limit, press the speaking button, the microphone cannot be turned on, you need to turn off the microphones that have been turned on, and then the microphone can be turned on by pressing the button..

3. FIFO function: When the number of open microphones is greater than the system limit, press the speak button to turn on and automatically turn off the earliest open microphone.

4. Operator function: When the number of open microphones is greater than the limit, press the speak button to enter the application waiting state. After the opened microphones are closed, the applied microphones will be opened automatically.

5. Request function: In Request, press the speak button and the microphone turns on and release the speech button and the microphone will be turned off.

6. PTT function: the delegate send request-to-speak by terminal, and can speak upon chairman approval. The chairman terminal can be activated anytime without approval.

• Voting function:

Offline functions without PC/software control: Attendance registration and voting can be run by the chairman terminal, without PC control, the chairman terminal can initiate registration, voting, quick election (election one in five), evaluation and etc.

• Extended functions with PC/software control

1. Voting: YES/ABST /NO. Voting result can be shown on the congress terminal by automatic counting.

-Single-choice and multiple-choice voting

-First key-press effective voting

-Voting types and modes can be preset

-Voting result is displayed as pie charts or text

2. Election: elect one or more out of multiple candidates, with 'competitive election', 'single-candidate election' and 'quick election( elect one from five)'.

3. Evaluation: Satisfaction, quite satisfaction, dissatisfaction and Abstain. Evaluation mode is set by the software.

4. Utilize data encryption and anti-restoration technique to ensure information security.

5. Customized voting options and voting methods, support customized language mode or display screen.

• Simultaneous interpretation function:

1. The simultaneous interpretation function of 32 (1+31) channels can be realized. The built-in simultaneous channel selector (the headphone must be inserted before choosing the language channel).

2. The frequency response of the simultaneous interpreting channel can reach 20Hz~ 20kHz.

• It can appoint any delegate terminal as the chairman and the vice-chairman terminal. The chairman terminal has below functions besides the all functions of the delegate terminal.

1. Chairman terminal can be activated at any time without presetting mic limit.

2. Chairman priority button to override all active delegate terminals.

3. Could allow the delegate terminal to speak or not.

4. The number of chairman and vice-chairman terminals in the system is not limited.

Technical Specifications

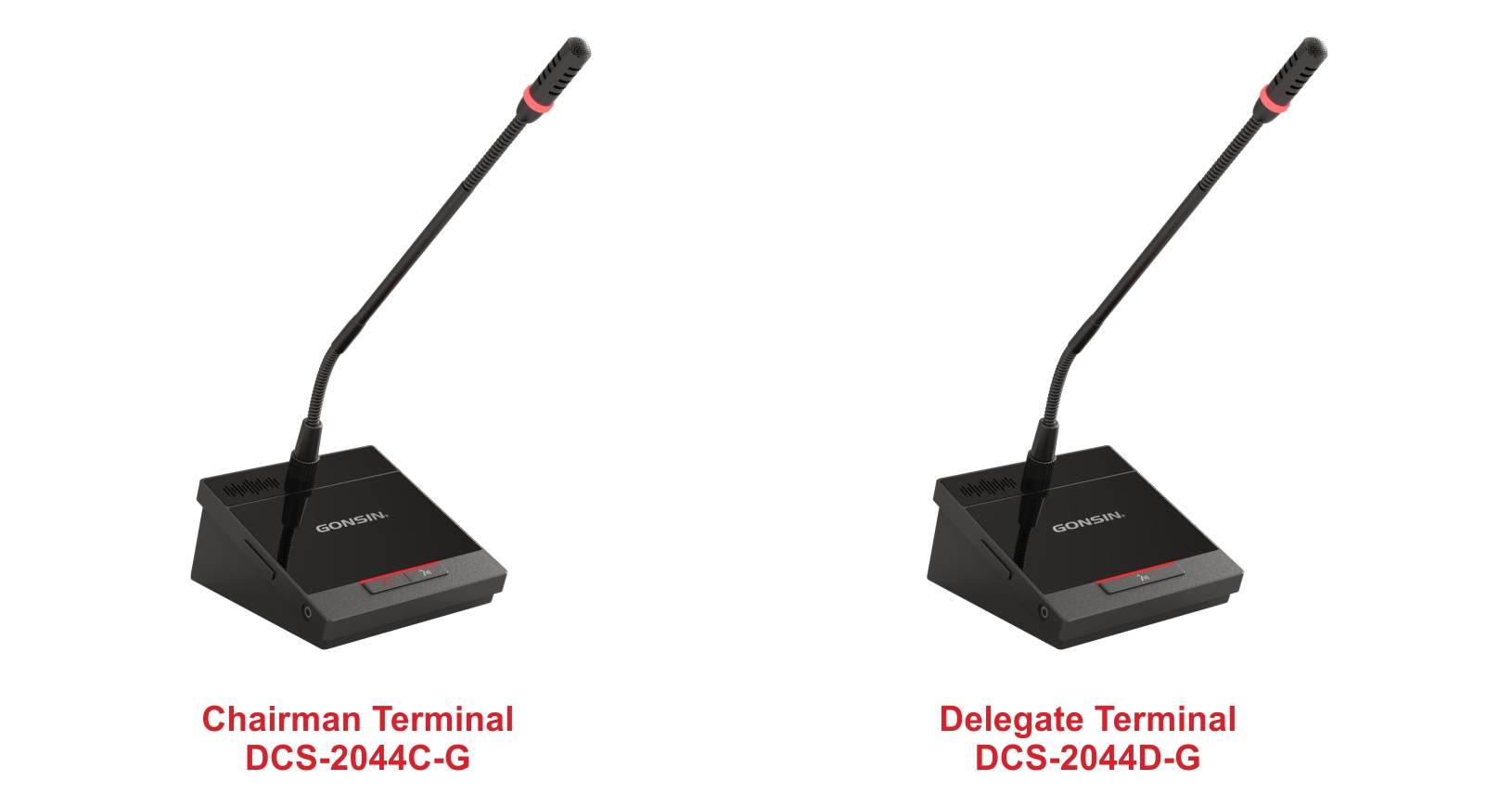

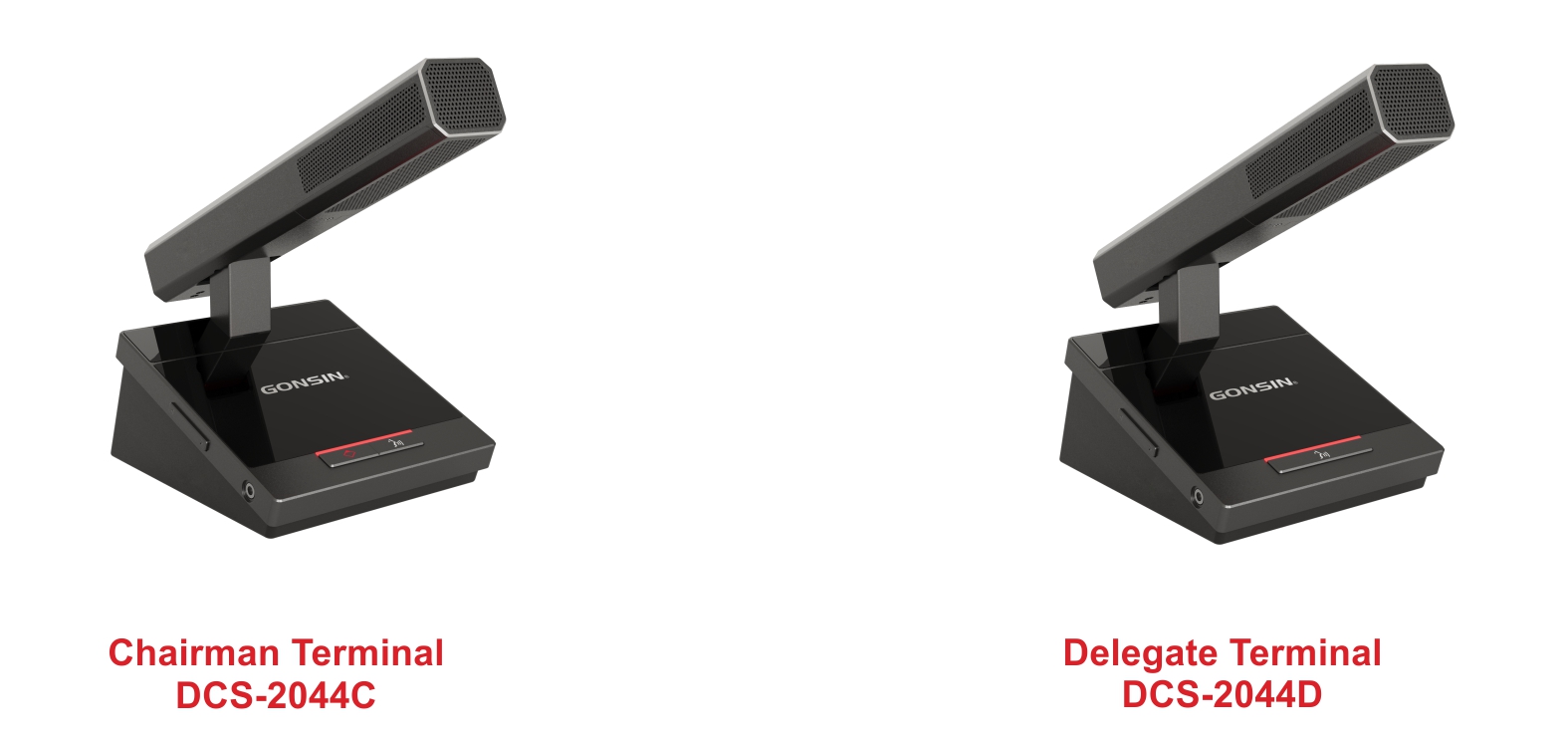

Basic Discussion Terminal DCS-2044C/DCS-2044D

Basic Functions

• The terminal adopts metal panel and anti fingerprint lens, with high-end texture, which is fashionable and elegant.

• Rectangular columnar short microphone: The terminal adopts metal material with a fixed rectangular columnar short microphone design, stable connection with the steam and the base; with status indicator, users can easy to see the working status of the terminal.

• Gooseneck Microphone: The gooseneck terminal (designated model) adopts a pluggable microphone stem, which can be disassembled during the non-meeting period, and is convenient for equipment maintenance. It adopts electret cardioid microphone with indicating light ring and dual-hose of various lengths.(standard: 410mm, optional: 310mm/510mm)

• With Automatic Speech Recognition System, it can realize the function of voice transcription, and realize the meeting recording in multiple ways.

• The serial-number is one and only, the conference system supports automatically or manually assign ID to the corresponding equipment.

• With full digital audio technology, built-in high-performance CPU core processor, Built-in high-speed DSP digital audio processor, it can help remove the useless low-frequency and avoid low-frequency acoustical shock, which better improve the sharpness of sound.

• Supports 48kHz audio sample freq, acoustic frequency response can be up to 20Hz~20kHz.

• The audio and sensitivity of each terminal can be adjusted independently or uniformly, and the sound effect can be adjusted according to the on-site speech situation until the perfect effect is achieved.

• The main link equipment such as congress terminal, power HUB and congress server are all connected by cable. Flexible cabling reduces project workload, makes large-scale construction easier.

• It supports daisy-chain connection, star connection and mixed connection. The break down of one extension won't influence the other extensions, and the malfunction of one attachment among the extensions won't influence the system work.

• Rectangular columnar short microphone has dual-chain backups function: with independent microphone digital signal output and analog signal output, when the main link fails, it can be switched to the backup link to ensure the system's normal operation.

• The backup chain of rectangular columnar short microphone connects with XLR male (48V phantom power supply).

• The type of rectangular columnar short microphone is polyphonic head electre.

• Physical microphone button utilizes touch design, with concise appearance, convenient operation, accurate response and long service life.

• There is a two-color indicator light above the speaking button to indicate the current working status of the terminal.

• Comes with Ø3.5 mm headphone jack, adjustable volume.

• Built-in 8Ω/2W high-fidelity loudspeaker.

• The terminal connection line has an anti-drop design and the terminal is bottom mounted, which supports hidden or open installation, to make the desktop clearer and tidier.

• Automatic restoration function: supports hot plug.

• Attendance registration function: key to register, supplementary register or revocatory register. Attendance is counted automatically and the result can be displayed.

• Automatic camera tracking function, support HD automatic camera tracking, and preset overall view.

• Discussion function: support VOX, Auto, FIFO, Operator, Request and PTT.

1. VOX function: in VOX mode, the unit will be activated for user speaks; VOX sensitivity can be adjust by the server; microphone time-out is adjustable.

2. Auto function: Only the number of microphones limited by the system can be activated. When the number of open microphones is greater than the system limit, press the speaking button,  the microphone cannot be turned on, you need to turn off the microphones that have been  turned on, and then the microphone can be turned on by pressing the button.

3. FIFO function: When the number of open microphones is greater than the system limit, press the speak button to turn on and automatically turn off the earliest open microphone.

4. Operator function: When the number of open microphones is greater than the limit, press the speak button to enter the application waiting state. After the opened microphones are closed,  the applied microphones will be opened automatically.

5. Request function: In Request, press the speak button and the microphone turns on and release the speech button and the microphone will be turned off.

6. PTT function: the delegate send request-to-speak by terminal, and can speak upon chairman approval. The chairman terminal can be activated anytime without approval.

• It can appoint any delegate terminal as the chairman and the vice-chairman terminal. The chairman terminal has below functions besides the all functions of the delegate terminal.

1. Chairman terminal can be activated at any time without presetting mic limit.

2. Chairman priority button to override all active delegate terminals.

3. The number of chairman and vice-chairman terminals in the system is not limited.

Technical Specifications

Congress Terminal Feature Chart

Technical Parameters of 10000N Series Seamless Compatible Wired and Wireless Conference System

Wireless Congress Terminal DCS-1022-W

Wireless Discussion Terminal with Voting and Interpretation DCS-1023CF-W/DCS-1023DF-W

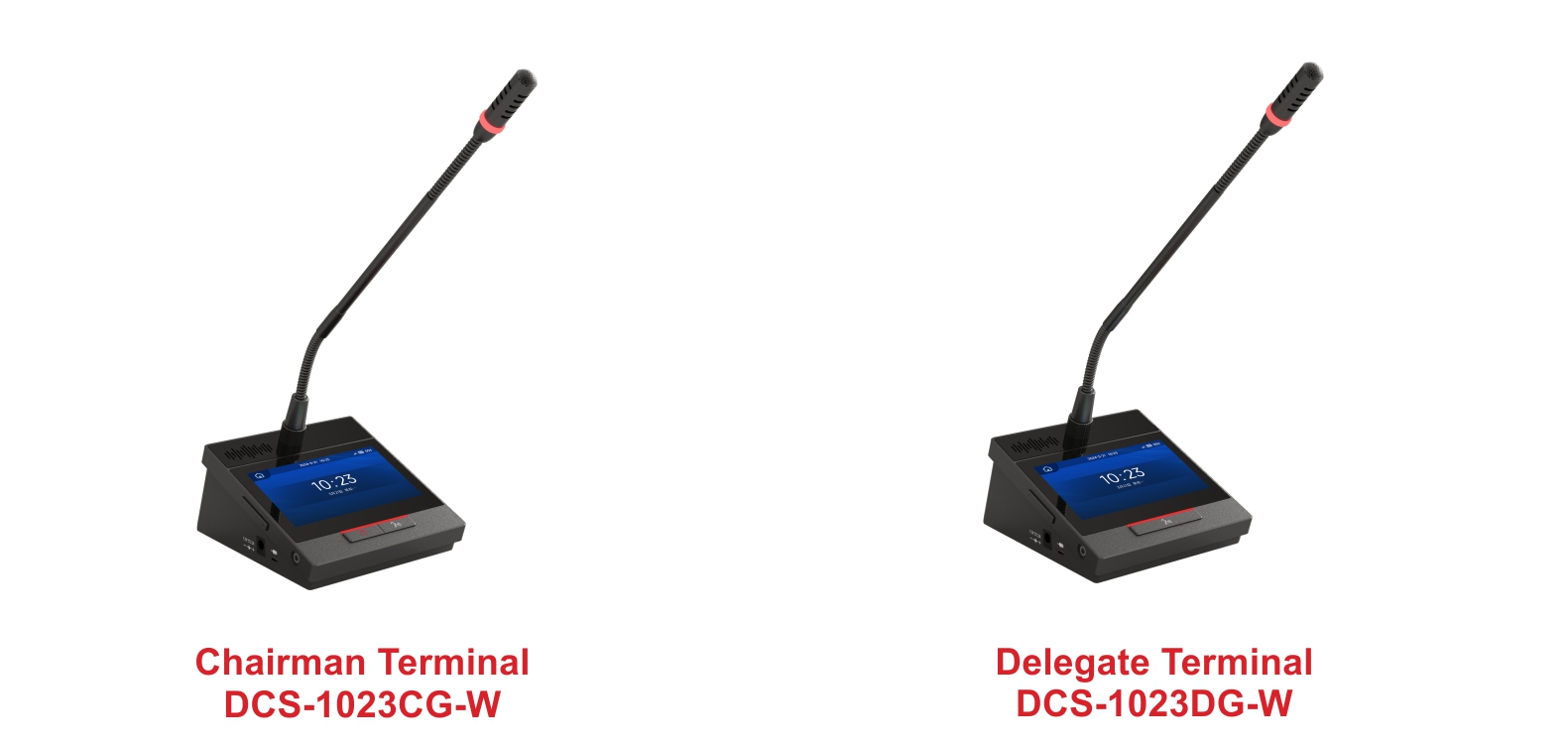

Wireless Basic Discussion Terminal DCS-1023C-W/DCS-1023D-W

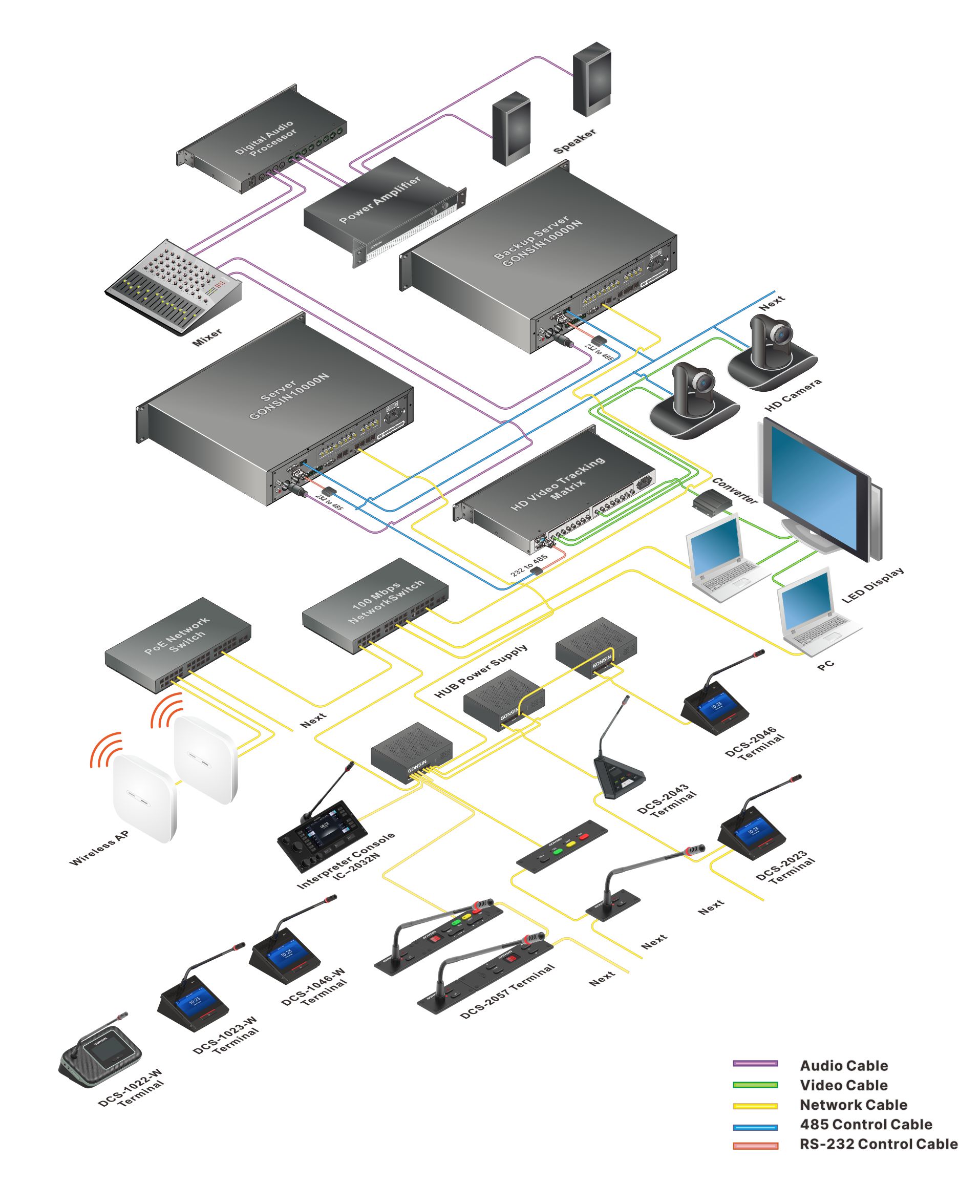

System Configuration of 10000N Series Seamless Compatible Wired and Wireless Conference System
