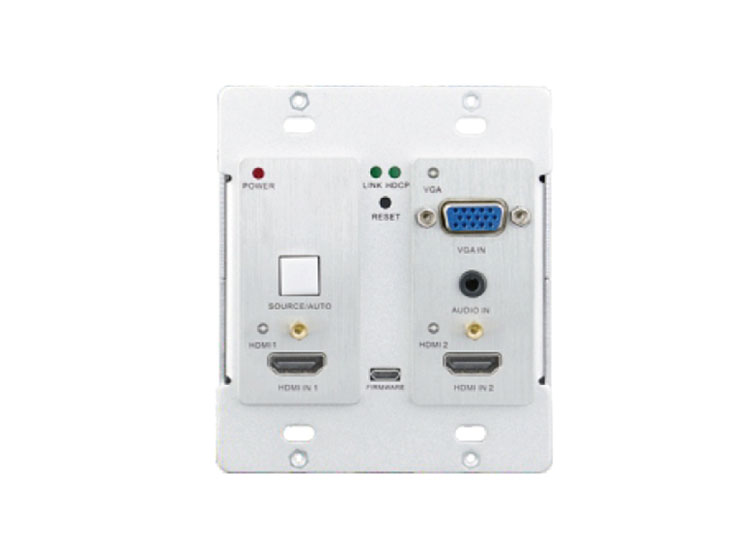

Wall Plate HDBaseT Transmitter GX-TF105T-D

Central Control System
Central Control System
Get A Quote
Features
Technical Parameters

Features of Wall Plate HDBaseT Transmitter GX-TF105T-D

  • Wall insert installation design

  • Support HDMI 1.4, Transmits HDMI signals up to 4K*2K

  • 1.5s switching speed and stable performance

  • High bandwidth: 10.2Gbps

  • HDCP compliance, equipped with HDCP auto tracking solution

  • Support bi directional power supply function

  • Maximum transmission distance is 60 m for 1080P and 40m for 4K*2K over single CAT5e cable

  • Energize Programmable Control Panel with a 12V DC power output

  • supports bi directional RS232 pass through control

  • Provides auto switching capability

  • HDMI/ VGA interfaces support hot-plug

Technical Parameters of Wall Plate HDBaseT Transmitter GX-TF105T-D

Video Input2*HDMI(Type A HDMI Female)
1*VGA(D-Sub)
Audio Input1*AUDIO(3.5mm jack)
Synchronous VGA Audio
Frequency Response20Hz~20KHz
Impedance>10Ω
SNR>85db@20Hz~20KHz
Output1*HDBaseT(RJ45 Connector)
Control Ports (pass-through)1*RS232(3pin Phoenix Contact
Transmission ModeHDBaseT
Transmission Distance1080P≤60 m(PoC), 4K*2K≤40 m (PoC)
Bandwidth10.2Gbps
HDMI StandardSupport HDMI1.4 and HDCP
Power SupplyDC 12V/2A
Power Consumption9.6W
Temperature0~50°C
Humidity10% ~ 90%
Dimension (W*D*H)104.5*89*44mm
Net Weight0.24Kg
