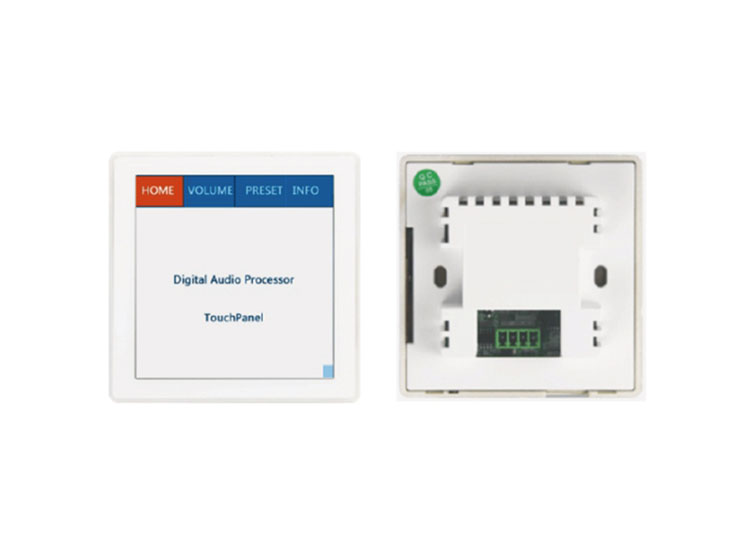

Touch Control Wall Panel GX-PANEL40D

Central Control System
Central Control System
Get A Quote
Features
Technical Parameters

Features of Touch Control Wall Panel GX-PANEL40D

  • Work with a central control system and visual media interactive system

  • Support multiple pages display, control common functions for a central control system and visual media interactive system

  • Wall-mount 86 bottom box

  • 4 inches 65K LCD display with Chinese and English interface, easy to understand

  • Capacitive touch control, smooth operation

  • Communication interfaces: RS485, WIFI communication is optional

Technical Parameters of Touch Control Wall Panel GX-PANEL40D

Screen size4"
Resolution480*480
Color65K, 16-digit RGB
Screen typeTFT LCD
Brightness250cd/
BacklightLED
Backlight life(average)>20,000 hours
Contrast800:1
Visual angle80/80/80/80
Installation typeStandard 86 bottom box
Communication interfaceRs485
Touch controlcapacitive touch control
Touch control timeunlimited
Power consumptionSleep mode 0.4W the darkest without speakers 1.5W the brightest with speakers 2.4W
Voltage9-36V
Working temperature0～40
Storage temperature–20 +70
Product size（W×D×H）90.7×90.7×27.9mm
Net Weight90g
