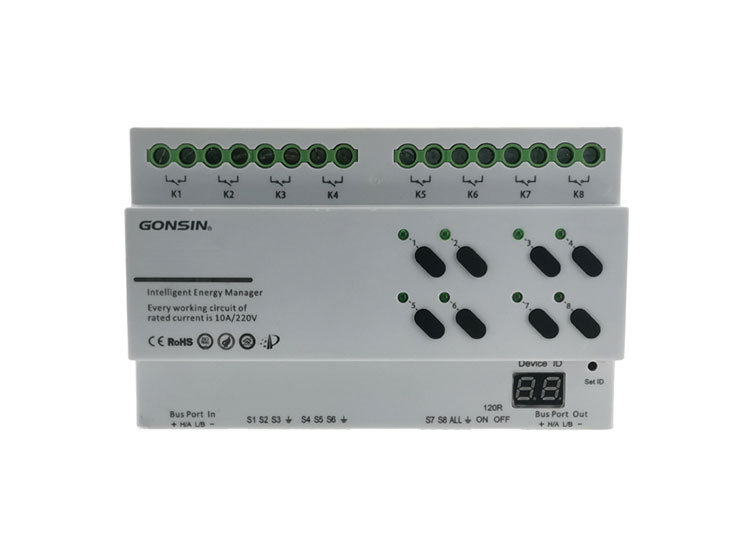

Power Management Module (DIN Rail) GX-P708S1/GX-P708S2/GX-P708S3/GX-P708S4

It is applied to the control of switch variables such as power supply and ambient lighting in various occasions. It allows input and output of strong and weak currents. It has a rail design and can be installed in a standard distribution box. RS485 or CAN communication mode can be selected, and multiple groups of state storage and restoration functions are available at the same time. It is suitable for equipment power supply system under central control management to realize flexible management of power control.

Centralised Control System
Centralised Control System
Get A Quote
Features
Technical Parameters

Features of Power Management Module (DIN Rail) GX-P708S1 / GX-P708S2 / GX-P708S3 / GX-P708S4

  • Use with central control system

  •  Support CAN bus control mode (GX-P708S1/GX-P708S3)

  • Support RS485 bus control mode (GX-P708S2/ GX-P708S4)

  • Support local key control, IO communication control

  • The panel comes with a signal feedback information system, which can intuitively indicate the working status of the equipment

  • 8 channels of independent power control output, single channel maximum current 10A

  • Support 8 independent current detection (GX-P708S3/ GX-P708S4)

  • Built-in anti-surge relay, single channel transient peak power up to 26400W

Technical Parameters of Power Management Module (DIN Rail) GX-P708S1 / GX-P708S2 / GX-P708S3 / GX-P708S4

Control methodsGX-P708S1/GX-P708S3:
Button/IO control, CAN (baud rate 125kbps)
GX-P708S2/GX-P708S4:
Button/IO control, RS485 (baud rate 9600bps)
Device IDManual adjustment
Single way maximum power10A/220VAC
Maximum anti-surge current120A/20ms (single channel transient peak power 26400W)
Power supplyBus DC12V ~ 24V
Power consumptionAbout 4.8w (fully open), 0.3w (fully closed)
InstallationDistribution box rail installation, 8p
Dimensions (L×W×H)145×90×63 mm
