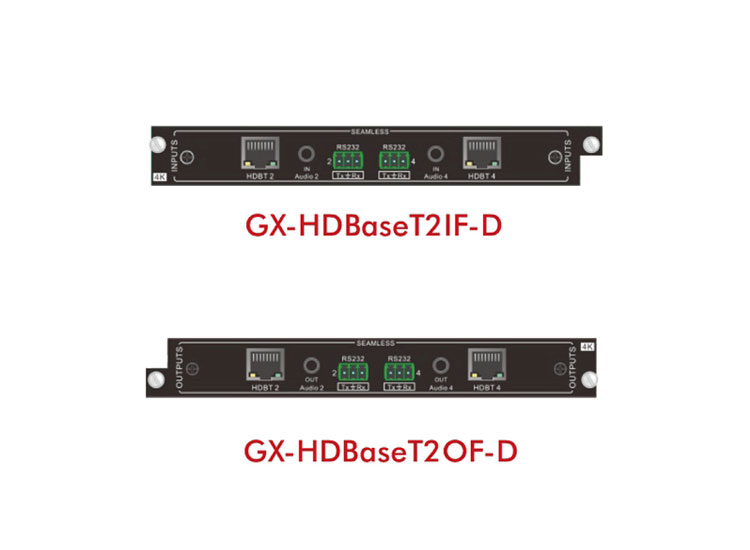

Features of HDBT 4K Seamless Input / Output Signal Card

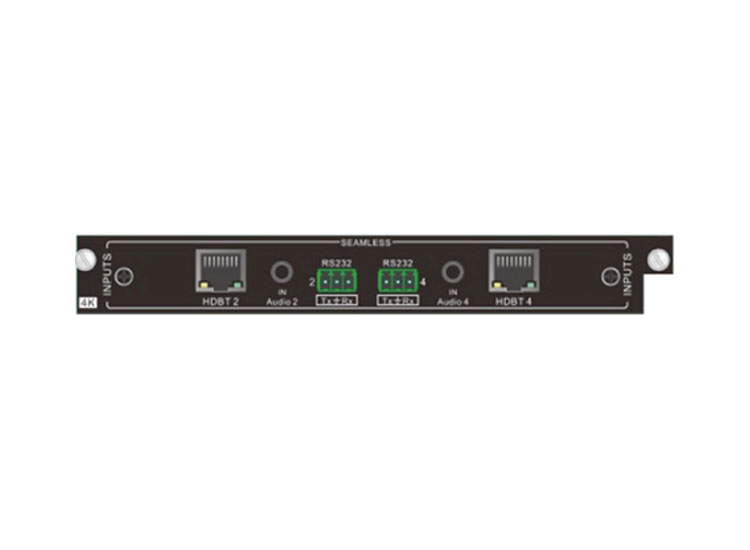

GX-HDBaseT2IF-D

  • 2 ways of HDBaset input, 2 ways of audio input, 2 ways of RS-232 input/output

  • Seamless switch default resolution is 3840*2160@30hz, which can be adjusted by instructions

  • Output demultiplexing audio is on by default, which can be closed by instructions

  • Support RS232 and remote passthrough, realize two-way communication for serial port

  • Max transmission distance for 1080P is 70m, 4K transmission is 40m

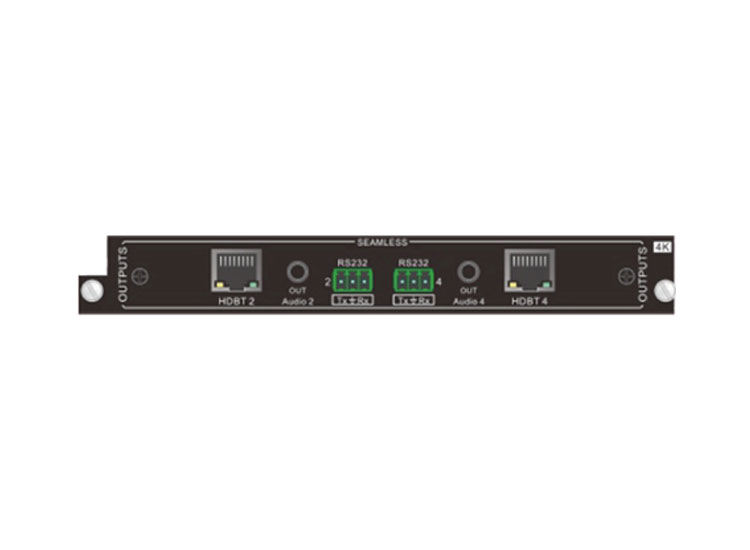

GX-HDBaseT2OF-D

  • 2 ways of HDBaset output, 2 ways of audio output, 2 ways of RS-232 input/output

  • Seamless switch default resolution is 3840*2160@30hz, which can be adjusted by instructions

  • Output demultiplexing audio is on by default, which can be closed by instructions

  • Support RS232 and remote passthrough, realize two-way communication for serial port

  • Max transmission distance for 1080P is 70m, 4K transmission is 40m

Technical Parameters of HDBT 4K Seamless Input / Output Signal Card

Video Signal
Signal type2 ways of HDBaset signals
ConnectorRJ45, with yellow-and-green indicator
Input levelT.M.D.S 2.9V~3.3V
Input resistanceDifferential 100 Ohm
Bandwidth10.2Gbps
ResolutionsMax resolution support 3840*2160@30hz, seamless
Audio formatsEmbedded audio supports PCM, Dobly Digital, DTS, DTS-HD format, external audio supports PCM format
HDMI standardSupport HDMI1.3
EDID and HDCPSupport EDID manual management, compatible with HDCP
Transmission distance1080P≤70m,4K≤40m(please work with high-class cable)
Audio Signal
Signal typeAnalog audio signal input ×2
Connector3.5mm audio out socket
Input resistance75 Ohm
Frequency response20Hz~20K Hz
Control Signal
Signal typeRS232 control signal(passthrough)×2
Connector3P Phoenix
ProtocolSupport RS232 protocol
Common Parameter
Signal gain0dB
Crosstalk<-50dB@5MHz
Switch speed200ns (Max.)
Power Consumption15W
Working temperature0℃~+50℃
Working humidity10%~90%
