HDBaseT Transmitter

Hdbaset Transmitter And Receiver Kit
Hdbaset Transmitter
Hdbaset Transmitter And Receiver Kit
Hdbaset Transmitter
Get A Quote

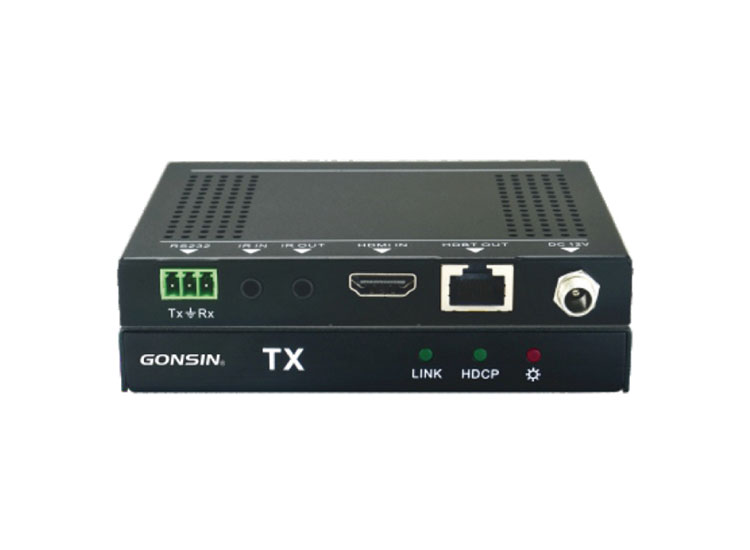

GX-TF101T-D

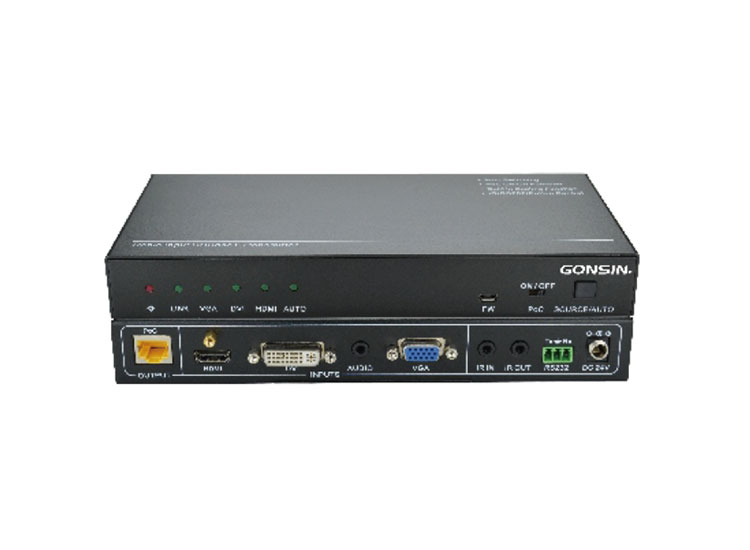

GX-TF102T-D

Features of GX-TF101T-D

  • Support Full HD: Delivers high-resolution image (1080P 3D/4K*2K @60Hz)

  • Maximum transmission distance is 70 m for 1080P and 40m for 4K*2K over singleCAT5e/ CAT6a cable.

  • HDCP2.2 and HDMI2.0 compliant

  • Support CEC/IR/RS232 pass through

  • Support bi-directional power supply function

  • Use HDBaseT technology

  • LED indicators show work status


Technical Parameters of GX-TF101T-D

Input1*HDMI(Type A HDMI Female)
Output1*HDBaseT(RJ-45 Connector)
Control Ports (pass-through)1*IR IN(3.5mm jack)
1*IR OUT(3.5mm jack)
1*RS232(3pin Phoenix Contact)
Transmission ModeHDBaseT
Transmission Distance4K*2K (≤40m), 1080P (≤70m)
Bandwidth10.2Gbps
HDMI StandardSupport HDMI2.0 and HDCP2.2
Power SupplyInput: 100V AC~240V AC, 50/60Hz
Output: 24V DC 1.25A
Power Consumption≤14W
Temperature0 ~ 50°C
Humidity10% ~ 90%
Dimension (W*H*D)115*109*16.2mm
Net Weight193g


Features of GX-TF102T-D

  • HDMI/DVI/VGA output resolution up to 1920*1200@60HZ

  • Support bi-directional power supply function

  • Maximum transmission distance is up to 70m for 1080P

  • Support D Scaler function

  • DVI/VGA input signal can be embedded with external audio

  • HDMI/DVI/VGA input signal can be switched automatically

  • Control methods: front panel buttons of transmitter, bi-directional RS232 control

  • LED indicators show work status


Technical Parameters of GX-TF102T-D

Input1*HDMI(Type A HDMI Female)
1*DVI(DVI-I Female)1*VGA(D-Sub)
1*AUDIO(3.5mm jack)
Output1*HDBaseT(RJ-45 Connector)
Control Ports (pass-through)1*IR IN(3.5mm jack)
1*IR OUT(3.5mm jack)
1*RS232(3pin Phoenix Contact）
Transmission ModeHDBaseT
Transmission Distance1080P (≤70m)
VGASupport VGA、CVBS、YPbPr
Bandwidth10.2Gbps
HDMI StandardHDMI1.4, HDCP1.2
Power SupplyInput: 100V AC ~ 240V AC, 50/60Hz
Output: 24V DC 1.25A
Power Consumption≤7W
Temperature0 ~ 50°C
Humidity10% ~ 90%
Dimension (W*H*D)220*100*30mm
Net Weight426g
