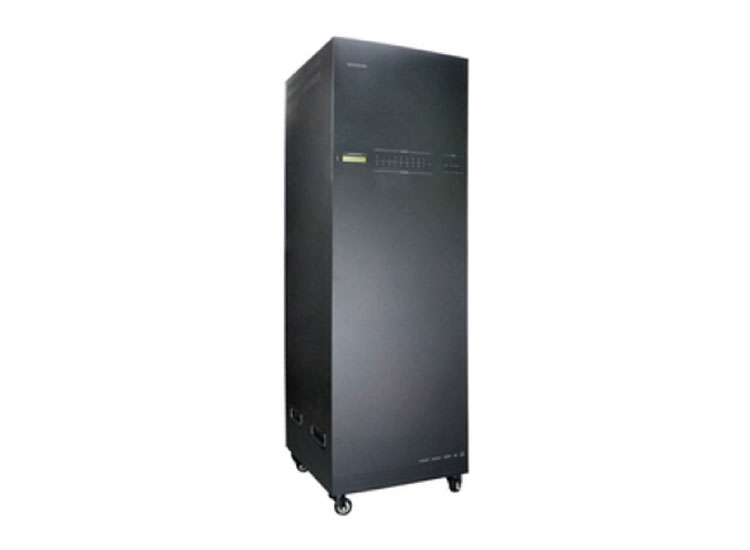

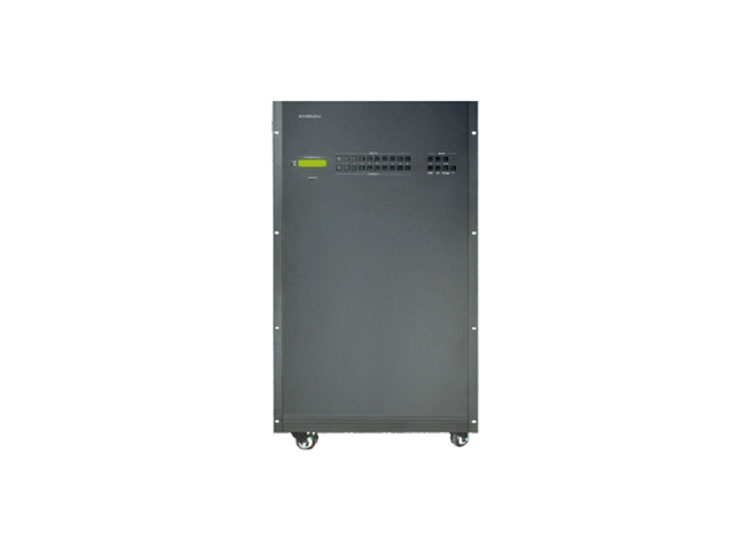

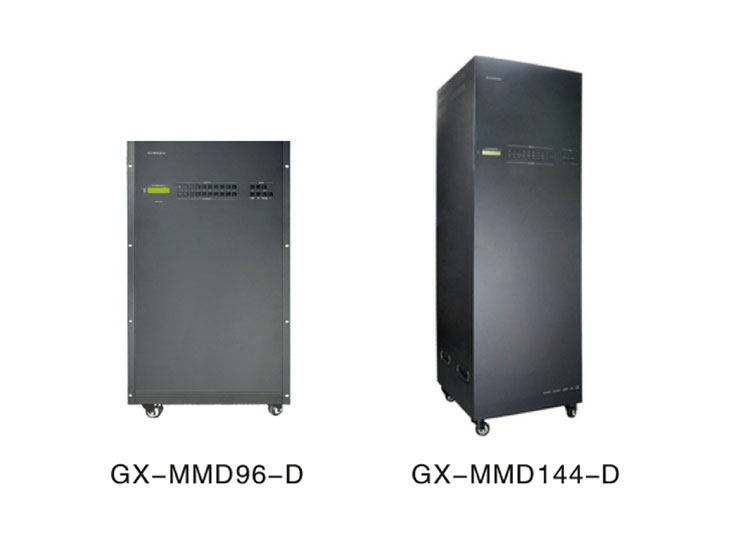

HD Modular Matrix Switcher GX-MMD96-D/MMD144-D/MMD160-D

Central Control System
Centralised Control System
Central Control System
Centralised Control System
Get A Quote
Features
Technical Parameters

Features of HD Modular Matrix Switcher GX-MMD96-D / MMD144-D/

MMD160-D

  • In compliance with IEC60914 international standard

  • Industrialized standard chassis design

  • Modular design, input/output signal card can be selected according to actual needs

  • Flush-mounting hardware architecture design, the system is stable and reliable, seamless switching, without black screen and splash screen, no delay

  • Compatible with 1080P seamless switching cards for HDMI, DVI, VGA, AV, SDI, HDBaseT, Optical Fiber, etc

  • Compatible with 4K×2K signal switching cards for HDMI, HDBaseT, Optical Fiber

  • Bus switching technology, each signal is transmitted through a separate channel to ensure the real-time display of all signal images

  • The switcher is with frequency multiplier and upscaling technology to scale or enhance the image signals

  • Support OSD custom character overlay screen display function

  • Support query function for input and output channel status of current device

  • Support image mosaic function (1×1~8×8 equal scale image)

  • There are 4 kinds of control modes including RS232, TCP/IP, IR and button control. It is flexible and convenient to use.

  • Support locking function of panel button to prevent misoperation

  • Support no less than 10 scene save and recall function, and support group cutting function

  • Support HDMI 1.4a standard, up to 4K resolution input/output switching, HDCP compliant

  • Supports embedded EDID management and manual EDID learning function

  • Redundant power supply design, support for power failure alarm function

  • Switcher and signal can run no less than 7 × 24 hours with continuous power and failure-free operation

Technical Parameters of HD Modular Matrix Switcher GX-MMD96-D / MMD144-D / MMD160-D

ModelGX-MMD96-DGX-MMD144-DGX-MMD160-D
Chassis structurePluggable signal card
Slots for cardsInput*24/output*24Input*36/output*36Input*40/output*40
Type of signal1080P signal: HDMI, DVI, VGA, AV, SDI, HDBaseT, Optical Fiber 4K×2K signal: HDMI, HDBaseT, Optical Fibe
ResolutionAccording to the type of input and output card, support 36 types of resolution: 1920×1200, 1080P, 1080I, 1366×768, 720P, 576i, 480i
control modesRS232,TCP/IP,IR,button control
Front panelbutton control, LCD screen, IR Receiving window
Power220V AC 50/60Hz
Power Consumption220W248W310W
Relative humidity10%~90%
Working temperature0°C~50°C
Dimension of chassis (L×W×H)20U28U32U
without hanger: 437x450x888mmwithout hanger: 437x448x1244mmwithout hanger:

437×448×1400mm

with hanger: 483x450x888mmwith hanger: 483x448x1244mm

with hanger:

483×448×1400mm
