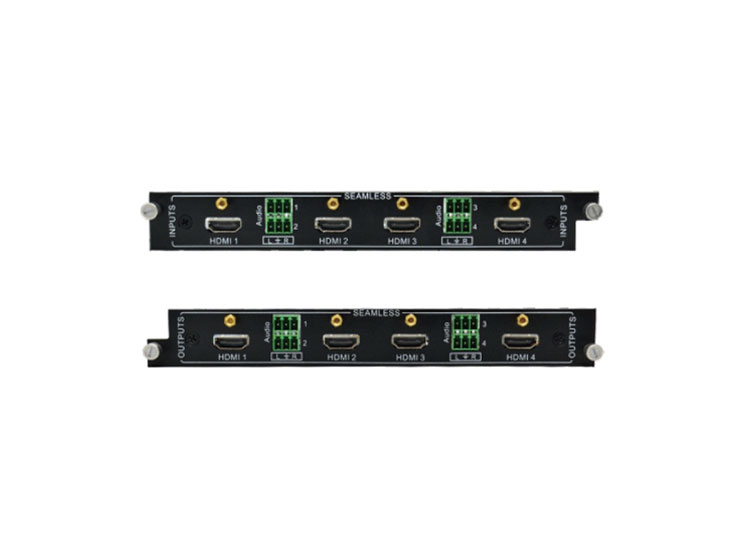

4-way HDMI Seamless Input/Output Card

Hdmi Input Card
Hdmi Input Card
Get A Quote
Features
Technical Parameters

Features of 4-way HDMI Seamless Input / Output Card

GX-HDMI4I-D

  • 4 channels for HDMI input, 4 channels for analog audio input

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Supports HDMI 1.3 and HDCP 1.3, compatible with DVI signal

  • HDMI input audio defaults to embedded audio input, supporting embedded analog audio

  • Supports video upscaling, converting output source to 1080P or 1920x1200

  • Input signal card with character overlay function


GX-HDMI4O-D

  • 4 channels for HDMI output, 4 channels for analog audio output

  • Supports resolution selection, and it is up to 1920x1080P@60Hz

  • Supports HDMI 1.3 and HDCP 1.3, compatible with DVI signal

  • Supports video upscaling, converting output source to 1080P or 1920x1200

Technical Parameters of 4-way HDMI Seamless Input / Output Card

Product4-way HDMI seamless input card4-way HDMI seamless output card
ModelGX-HDMI4I-DGX-HDMI4O-D
HDMI
Type of signalHDMI input×4, compatible with DVIHDMI output×4, compatible with DVI
InterfaceHDMI Type A
Color Depth8 & 10 & 12 bit8bit
Maximum resolution1080P@60Hz
Bandwidth6.75Gpbs
Audio Signal FormatEmbedded audio support PCM, Dobly Digital, DTS, DTS-HD format, external audio support PCM format
StandardHDMI1.3
EDID managementSupport EDID learning function
Transmission Distance≤10m(select high quality wire)
Audio Signal
Type of signalAnalog audio signal input×4Analog audio signal output×4
Connector3-pin phoenix contact
Audio Input Impedance>10K Ohm
Input Impedance75 Ohm
Frequency Response20Hz~20K Hz
Transmission Distance≤10m(select high quality wire)
General
Gain0dB
Crosstalk<-50dB@5MHz
Switching Rate200ns (Maximum)
Power consumption7.1W7.9W
Working temperature0°C~+50°C
Relative humidity10%~90%
