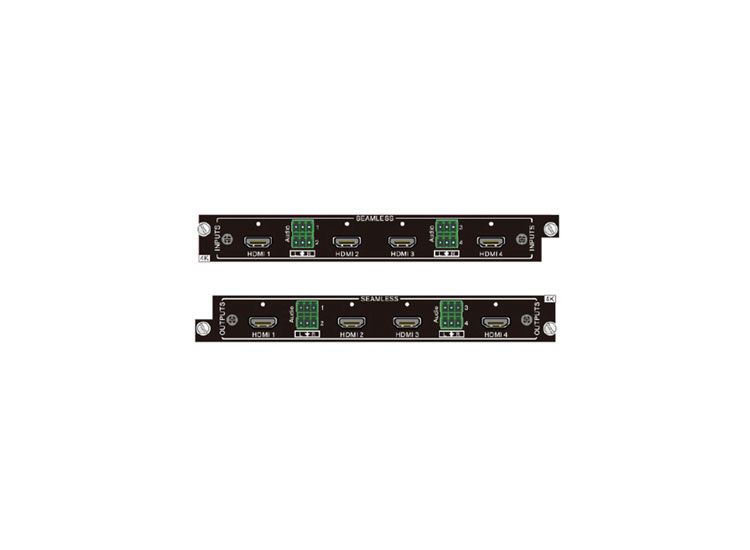

4-way 4K HDMI Seamless Input/Output Card

Centralised Control System
Centralised Control System
Get A Quote
Features
Technical Parameters

Features of 4-way 4K HDMI Seamless Input / Output Card

GX-HDMI4IF-D

  • 4 ways of HDMI input, 4 ways of analog audio input

  • Resolution up to 4096*2160@60Hz4:2:2, support seamless switching

  • Support HDMI1.4, HDCP2.2, compatible with DVI signal

  • Support embedded analog audio，HDMI defaults to embedded audio

  • Input signal card with character overlay function

  • Can be used with 1080P seamless card


GX-HDMI4OF-D

  • 4 ways of HDMI output, 4 ways of analog audio output

  • Resolution up to 4096*2160@60Hz4:2:2, support seamless switching

  • Support HDMI1.4, HDCP2.2, compatible with DVI signal

  • The output de-embedding audio is turned on by default and can be turned off by instruction

  • Support output simple stitching

  • Can be used with 1080P seamless card

Technical Parameters of 4-way 4K HDMI Seamless Input / Output Card

Product4-way 4K Seamless HDMI Input Card4-way 4K Seamless HDMI Output Card
ModelGX-HDMI4IF-DGX-HDMI4OF-D
HDMI
Type of signalOptical Fiber Input ×4, compatible with DVI-DOptical Fiber Output ×4, compatible with DVI-D
InterfaceHDMI Type A
Color depth8bit
ResolutionResolution up to 4K and seamless switching
Audio signal
Signal typeAnalog audio signal input×4Analog audio signal output×4
Connector3-pin phoenix contact
Audio Input Impedance>10K Ohm
Input Impedance75 Ohm
Frequency response20Hz~20K Hz
Transmission distance≤10m(select high quality wire)
General
Bandwidth10.2Gpbs
Audio formatEmbedded audio support PCM, Dobly Digital, DTS, DTS-HD format, external audio support PCM format
StandardHDMI1.4, HDCP2.2
EDID ManagementSupport EDID learning function
Transmission distance1080P≤10m; 4K≤5m(select high quality wire)
Power Consumption6W
Working temperature0°C~+50°C
Relative humidity10%~90%
